AT221R-AWMNKW (1997)
Toyota Avensis
Production
Oct 1997
-
Jul 2000
Engine
7AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9710- )

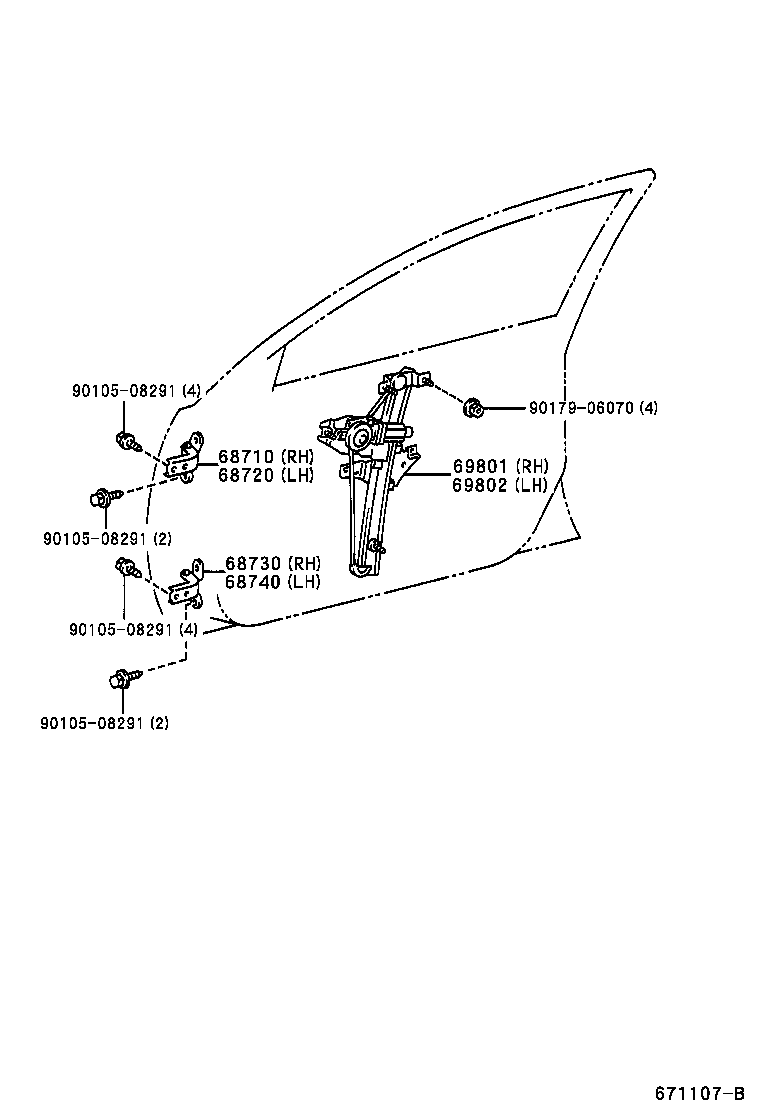

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-12150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 68710-05010 |
AT22#,CT220,ST220 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-12150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 68720-05010 |
AT22#,CT220,ST220 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-12110 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 68730-05010 |
AT22#,CT220,ST220 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-05010 |
AT22#,CT220,ST220 |
1 | ||
| 68740-12110 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD |
1 | ||
| Common parts | ||||
| 90105-08291 | ||||
| 90179-06070 | ||||
