AT221R-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

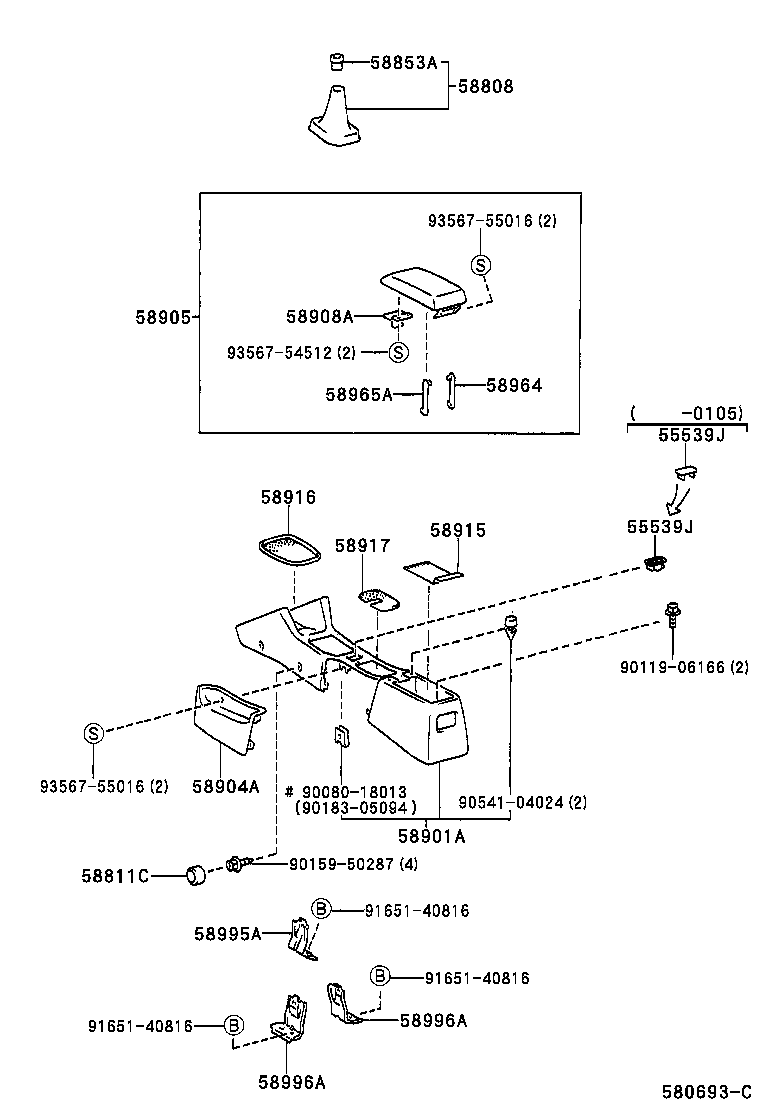

Click highlighted areas on diagram

diagram 55539J 55539J 58808 58811C 58853A 58901A 58904A 58905 58908A 58915 58916 58917 58964 58965A 58995A 58996A 58996A 9008018013 9011906166 9015950287 9018305094 9054104024 9165140816 9165140816 9165140816 9356754512 9356755016 9356755016
Part # Description Qty Price
55539J - COVER, SPARE SWITCH HOLE
55539-05030G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

GREEN,TRIM6#

 1
55539-05030B0

AT22#,CDT220,CT220,ST220

MD. GRAY,TRIM1#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-05030G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

GREEN,TRIM6#

 1
55539-05030B0

AT22#,CDT220,CT220,ST220

MD. GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-05040C0

AT22#,CDT220,CT220,ST220..RHD..MTM

BLACK,TRIM1#,6#

 1
58811C - CAP(FOR CONSOLE)
90339-10014G3

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 4
90339-10014B1

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 4
58853A - PACKING, SHIFT LEVER HOLE
58853-05010

AT22#,CDT220,CT220,ST220..MTM

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-05060B0

AT22#,CDT220,CT220,ST220..RHD

MD.GRAY,TRIM1#

 1
58901-05060G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

SLATE GREEN,TRIM6#

 1
58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58904-05040G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

SLATE GREEN,TRIM6#

 1
58904-05040B0

AT22#,CDT220,CT220,ST220..RHD

MD.GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
58905-05020B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
Common parts
90080-18013
90119-06166
90159-50287
90183-05094
90541-04024
91651-40816
93567-54512
93567-55016
