AT221R-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

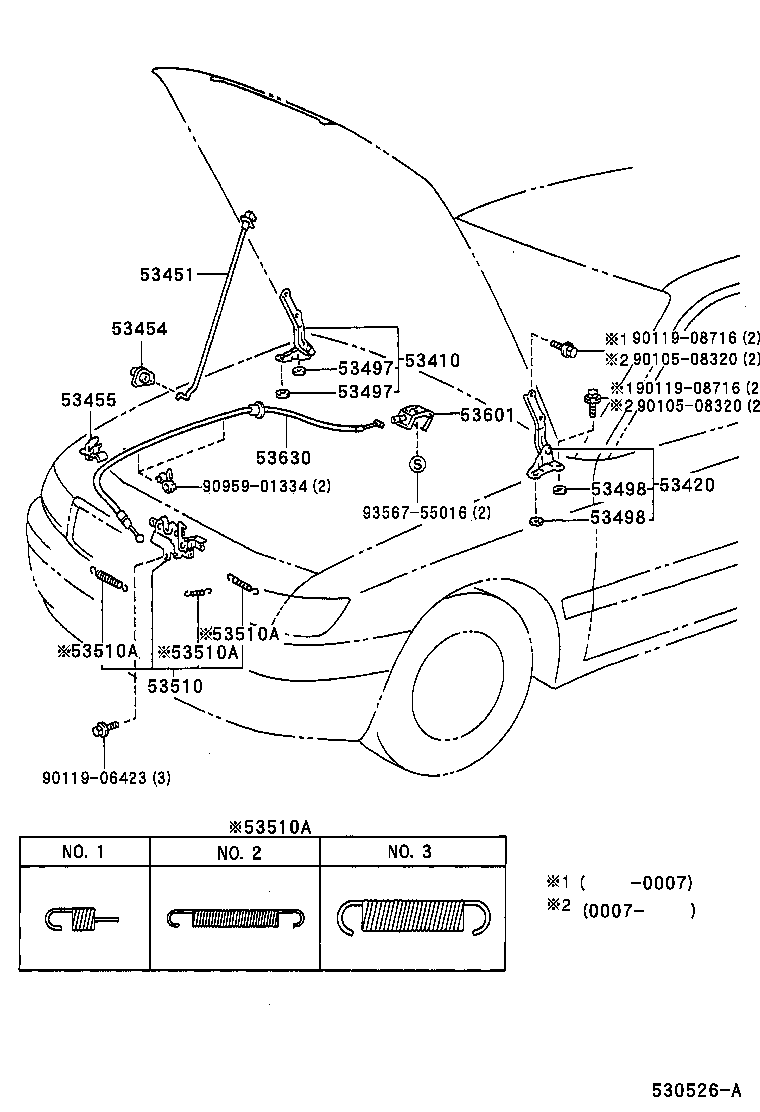

Click highlighted areas on diagram

diagram 53410 53420 53451 53454 53455 53497 53497 53498 53498 53510 53510A 53510A 53510A 53510A 53601 53630 9010508320 9010508320 9011906423 9011908716 9011908716 9095901334 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53420 - HINGE ASSY, HOOD, LH
53420-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53451 - ROD, HOOD SUPPORT
53440-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-16010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-20060

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

T=1.0

 2
53497 - PAD, HOOD HINGE, NO.1
53497-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

T=1.0

 2
53498 - PAD, HOOD HINGE, NO.2
53497-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
53498 - PAD, HOOD HINGE, NO.2
53497-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
53510 - LOCK ASSY, HOOD
53510-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50204

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

NO.1

 1
90080-50205

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

NO.2

 1
90080-50206

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

NO.3

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50204

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

NO.1

 1
90080-50205

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

NO.2

 1
90080-50206

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

NO.3

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50204

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

NO.1

 1
90080-50205

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

NO.2

 1
90080-50206

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

NO.3

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50204

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

NO.1

 1
90080-50205

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

NO.2

 1
90080-50206

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

NO.3

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-05020C0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

BLACK,TRIM1#,6#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
90105-08320
90119-06423
90119-08716
90959-01334
93567-55016
