AT221R-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

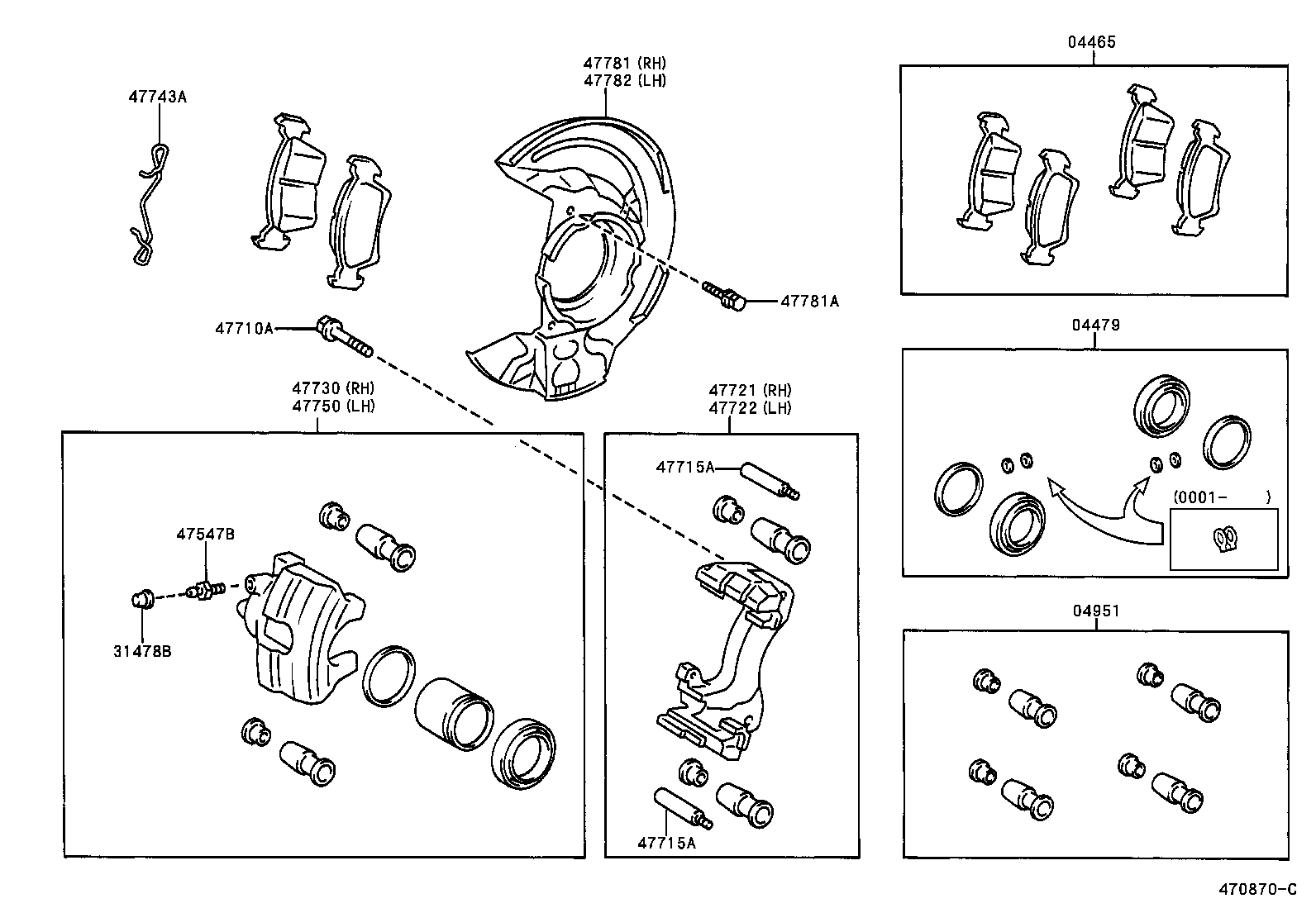

Click highlighted areas on diagram

diagram 04465 04479 04951 31478B 47547B 47710A 47715A 47715A 47721 47722 47730 47743A 47750 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-05020

AT22#,CT220,ST220

 1
04465-05040

AT22#,CT220,ST220

 1
04465-05042

AT22#,CDT220,CT220,ST220

MARK NBK PN540H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-20310

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

W(REAR DISC BRAKE)

 1
04479-05020

AT22#,CDT220,CT220,ST220

 1
04479-05021

AT22#,CDT220,CT220,ST220

 1
04951 - BUSH KIT, DISC BRAKE, FRONT
04951-05010

AT22#,CDT220,CT220,ST220

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
90080-93014

AT22#,CDT220,CT220,ST220

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12040

AT22#,CDT220,CT220,ST220

*12-1.25PX25.8-19.5

 4
90105-12131

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

*12-1.25PX25.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-05010

AT22#,CDT220,CT220,ST220

 4
47715-22080

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

W(ABS),MAIN PIN SIDE

 2
47715-22070

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

W(ABS),SUB PIN SIDE

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-05010

AT22#,CDT220,CT220,ST220

 4
47715-22080

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

W(ABS),MAIN PIN SIDE

 2
47715-22070

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

W(ABS),SUB PIN SIDE

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-09010

AT22#,CDT220,CT220,ST220

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-09010

AT22#,CDT220,CT220,ST220

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-09010

AT22#,CDT220,CT220,ST220

 1
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47748-05010

AT22#,CDT220,CT220,ST220

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-09010

AT22#,CDT220,CT220,ST220

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-05020

AT22#,CDT220,CT220,ST220

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-05020

AT22#,CDT220,CT220,ST220

 1
