AT221R-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

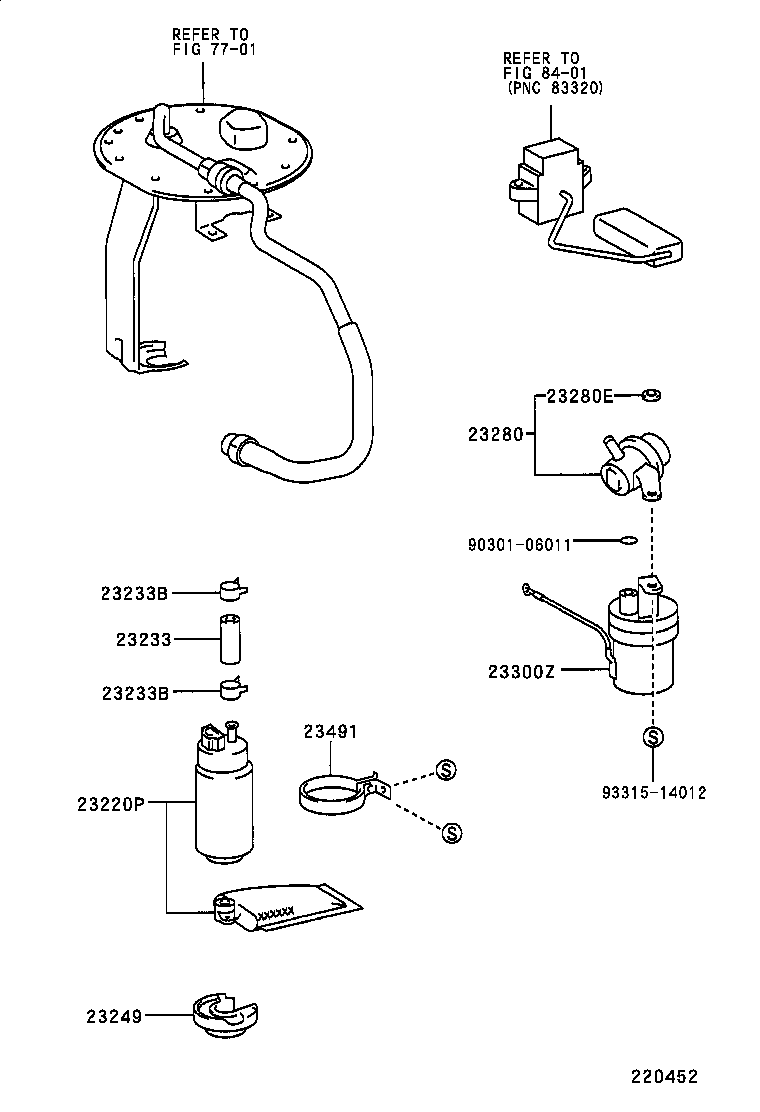

ILLUST NO. 2 OF 2(9710-0007)4AFE,7AFE

Click highlighted areas on diagram

diagram 23220P 23233 23233B 23233B 23249 23280 23280E 23300Z 23491 7701 8401 9030106011 9331514012
Part # Description Qty Price
23220P - PUMP ASSY, FUEL
23220-02040

4AFE,7AFE..AT22#

 1
23233 - HOSE, FUEL PUMP
23239-63010

4AFE,7AFE..AT22#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

4AFE,7AFE..AT22#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

4AFE,7AFE..AT22#

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

4AFE,7AFE..AT22#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-20020

4AFE,7AFE..AT22#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07020

4AFE,7AFE..AT22#

 1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-20050

4AFE,7AFE..AT22#

 1
23491 - CLAMP, FUEL FILTER EARTH
23491-74010

4AFE,7AFE..AT22#

 1
Common parts
90301-06011
93315-14012
Linked diagrams
7701
8401

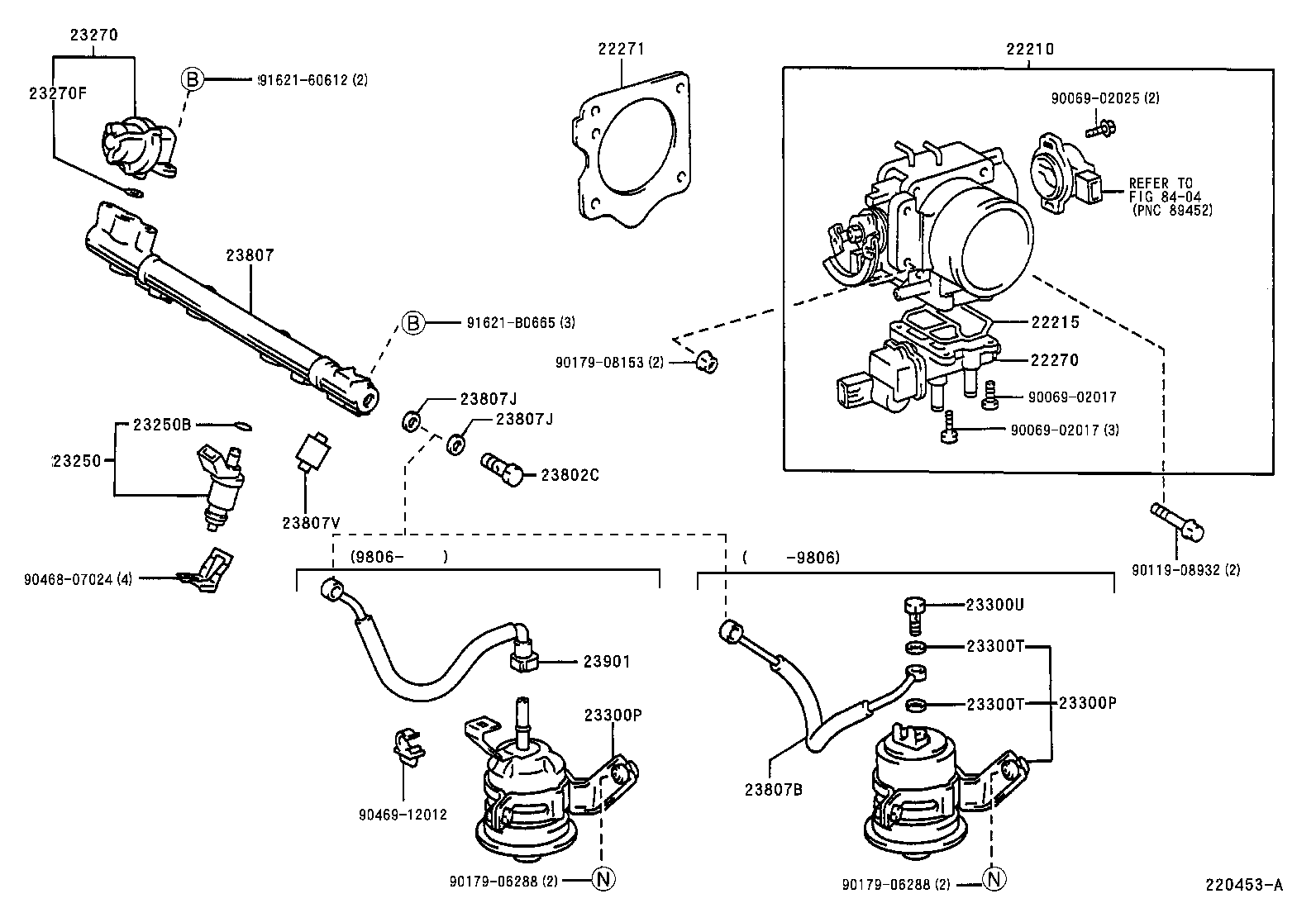

ILLUST NO. 1 OF 2(9710-0007)4AFE,7AFE

Click highlighted areas on diagram

LEAN BURN

diagram 22210 22215 22270 22271 23250 23250B 23270 23270F 23300P 23300P 23300T 23300T 23300U 23802C 23807 23807B 23807J 23807J 23807V 23901 8404 9006902017 9006902017 9006902025 9011908932 9017906288 9017906288 9017908153 9046807024 9046912012 9162160612 91621B0665
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-02130

4AFE,7AFE..AT22#..RHD..MTM

 1
22215 - GASKET, THROTTLE BODY COVER
22215-74400

4AFE,7AFE..AT22#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-16110

7AFE..AT221;4AFE..AT220..RHD

 1
22271 - GASKET, THROTTLE BODY
22271-02020

4AFE,7AFE..AT22#

 1
22271-15020

4AFE,7AFE..AT22#

 1
23250 - INJECTOR ASSY, FUEL
23209-02040

7AFE..AT221;4AFE..AT220..RHD

 4
23250B - RING, O(FOR FUEL INJECTOR)
90080-30036

7AFE..AT221;4AFE..AT220..RHD

 8
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23207-16040

4AFE,7AFE..AT22#

 1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07001

4AFE,7AFE..AT22#

 1
90301-07024

4AFE,7AFE..AT22#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-19465

4AFE,7AFE..AT22#..RHD

 1
23300-16340

4AFE,7AFE..AT22#..RHD

 1
23300P - FILTER, FUEL(FOR EFI)
23300-16340

4AFE,7AFE..AT22#..RHD

 1
23300-19465

4AFE,7AFE..AT22#..RHD

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

4AFE,7AFE..AT22#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

4AFE,7AFE..AT22#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
96341-11200

4AFE,7AFE..AT22#

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12097

4AFE,7AFE..AT22#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-16150

7AFE..AT221;4AFE..AT220..RHD

 1
23807B - HOSE, FUEL DELIVERY PIPE
23271-16260

7AFE..AT221

 1
23271-02040

4AFE,7AFE..AT22#..RHD

(L)

 1
23271-16160

4AFE,7AFE..AT22#..RHD

(J)

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

4AFE,7AFE..AT22#

 2
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

4AFE,7AFE..AT22#

 2
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-06017

7AFE..AT221;4AFE..AT220..RHD

 3
23901 - TUBE SUB-ASSY, FUEL
23901-02050

4AFE,7AFE..AT22#..RHD

 1
Common parts
90069-02017
90069-02025
90119-08932
90179-06288
90179-08153
90468-07024
90469-12012
91621-60612
91621-B0665
Linked diagrams
8404
