AT221R-ALPNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )LB

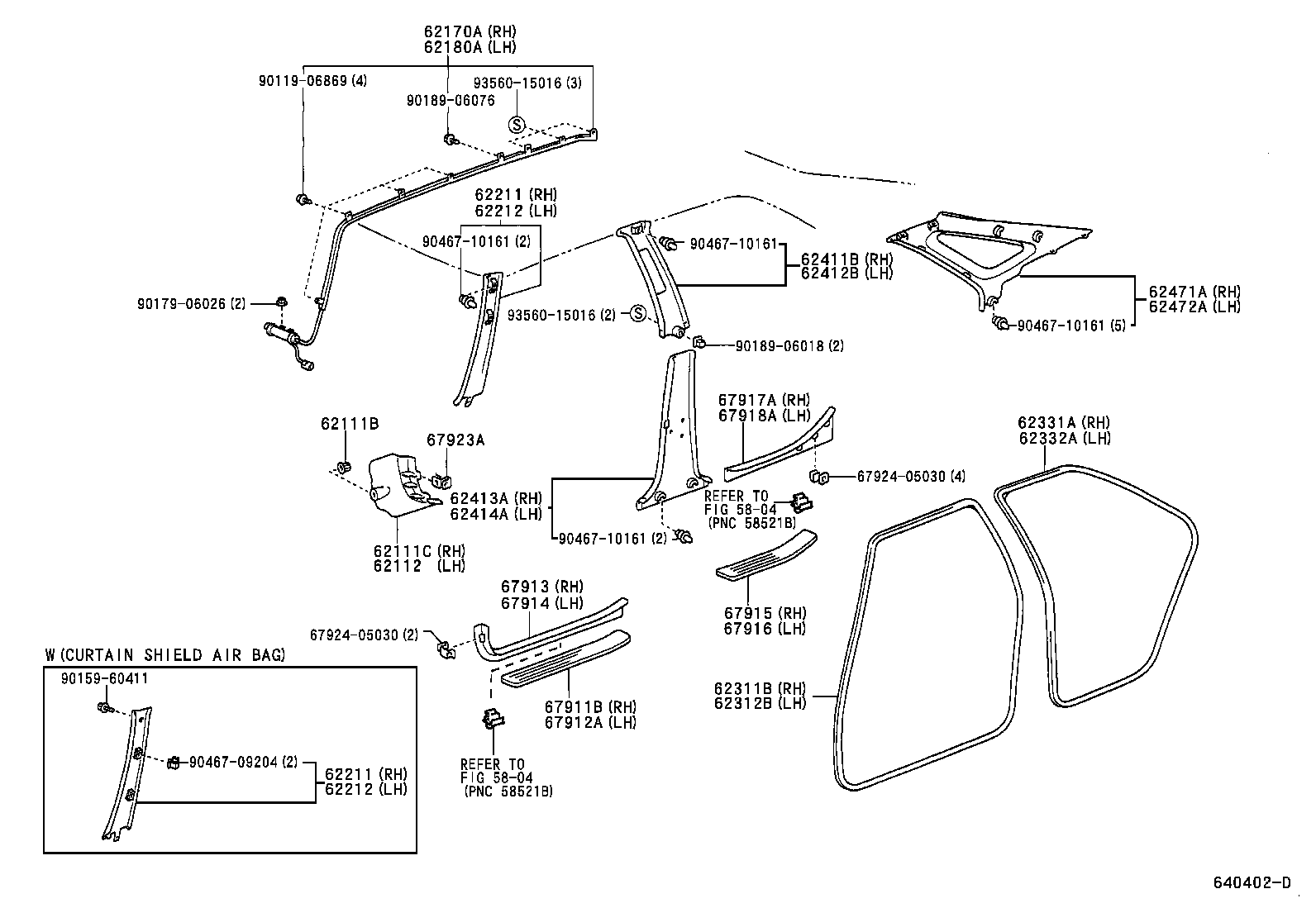

Click highlighted areas on diagram

diagram 5804 5804 62111B 62111C 62112 62170A 62180A 62211 62211 62212 62212 62311B 62312B 62331A 62332A 62411B 62412B 62413A 62414A 62471A 62472A 67911B 67912A 67913 67914 67915 67916 67917A 67918A 67923A 6792405030 6792405030 9011906869 9015960411 9017906026 9018906018 9018906076 9046709204 9046710161 9046710161 9046710161 9046710161 9356015016 9356015016
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-06191

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
90467-10197

AT22#,CT220,ST220

 2
90467-06094

AT22#,CT220,ST220

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
62111-05020B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
62112-05020B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-05010B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GRAY,TRIM1#

 1
62210-05010G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GREEN,TRIM6#

 1
62210-20080B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(*80, CURTAIN SHIELD),LT.GRAY,TRIM1#

 1
62210-20080G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(*80, CURTAIN SHIELD),LT.GREEN,TRIM6#

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-05010B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GRAY,TRIM1#

 1
62210-05010G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GREEN,TRIM6#

 1
62210-20080B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(*80, CURTAIN SHIELD),LT.GRAY,TRIM1#

 1
62210-20080G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(*80, CURTAIN SHIELD),LT.GREEN,TRIM6#

 1
62212 - GARNISH, FRONT PILLAR, LH
62220-05010B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GRAY,TRIM1#

 1
62220-20080B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(*80, CURTAIN SHIELD),LT.GRAY,TRIM1#

 1
62220-05010G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GREEN,TRIM6#

 1
62220-20080G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(*80, CURTAIN SHIELD),LT.GREEN,TRIM6#

 1
62212 - GARNISH, FRONT PILLAR, LH
62220-05010B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GRAY,TRIM1#

 1
62220-20080B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(*80, CURTAIN SHIELD),LT.GRAY,TRIM1#

 1
62220-05010G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GREEN,TRIM6#

 1
62220-20080G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(*80, CURTAIN SHIELD),LT.GREEN,TRIM6#

 1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-05020C0

AT22#,CT220,ST220

BLACK,TRIM1#,6#

 1
62311-05020C0

AT22#,CT220..LB..TERRA

BLACK,TRIM1#

 1
62311-05020C0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

BLACK,TRIM1#,6#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-05020C0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

BLACK,TRIM1#,6#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-05050C0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

BLACK,TRIM1#,6#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-05050C0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

BLACK,TRIM1#,6#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62410-05010G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GREEN,TRIM6#

 1
62410-05010B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GRAY,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62420-05010G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GREEN,TRIM6#

 1
62420-05010B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
62413-05020B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
62414-05020B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62470-05020B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

LT.GRAY,TRIM1#

 1
62470-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

LT.GREEN,TRIM6#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62480-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

LT.GREEN,TRIM6#

 1
62480-05020B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

LT.GRAY,TRIM1#

 1
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-05020C0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

BLACK,TRIM1#,6#

 1
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67912-05020C0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

BLACK,TRIM1#,6#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-05020B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
67913-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-05020B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
67914-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67915-05020C0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

BLACK,TRIM1#,6#

 1
67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67916-05020C0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

BLACK,TRIM1#,6#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
67917-05020B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-05020B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
67918-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
67923A - CLAMP, DOOR SCUFF PLATE, NO.1
67923-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 4
Common parts
67924-05030
90119-06869
90159-60411
90179-06026
90189-06018
90189-06076
90467-09204
90467-10161
93560-15016
Linked diagrams
5804
