AT221R-ALPEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )LB

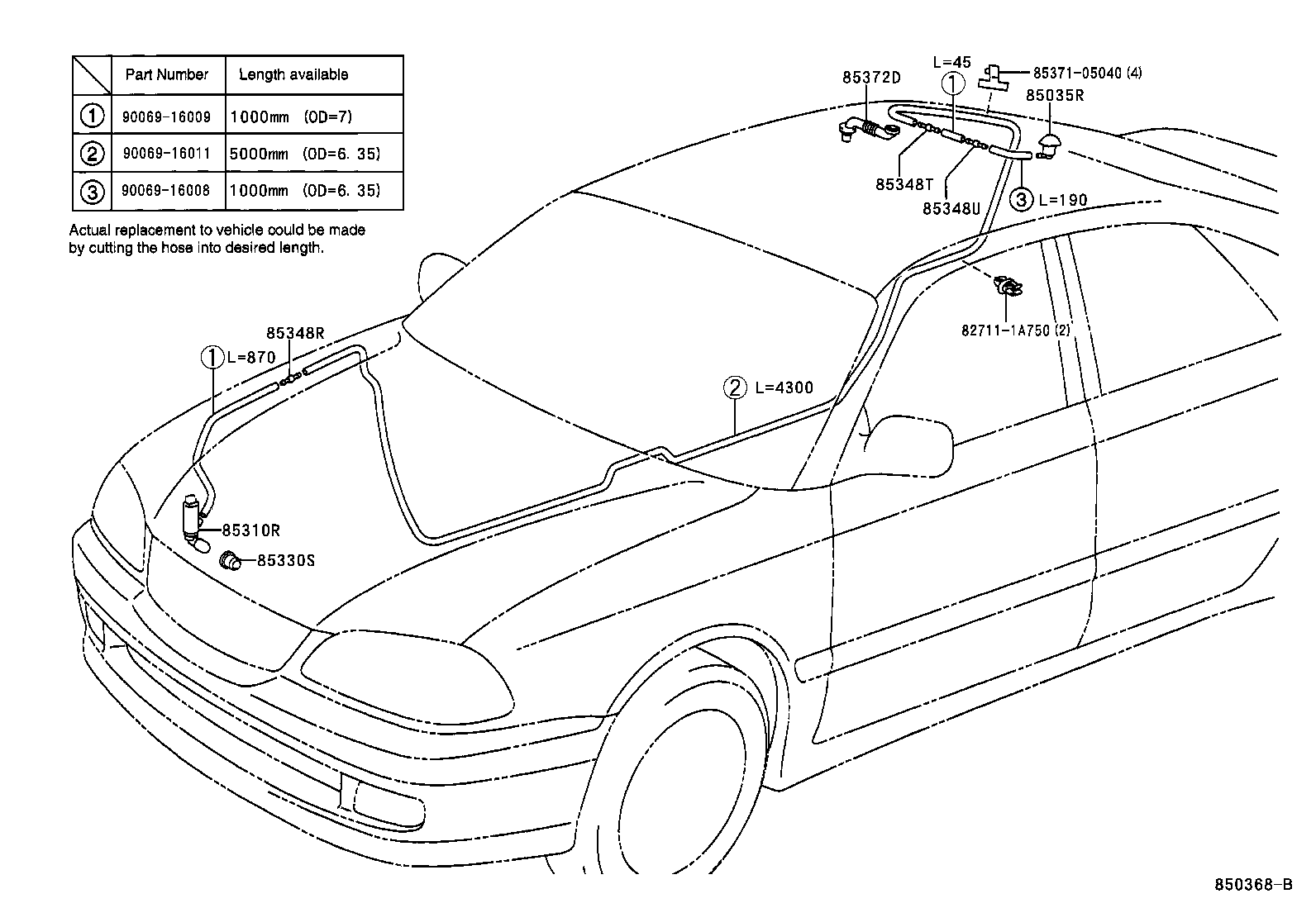

Click highlighted areas on diagram

diagram 827111A750 85035R 85310R 85330S 85348R 85348T 85348U 8537105040 85372D 9006916008 9006916009 9006916011
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

 1
85310R - MOTOR ASSY, REAR WASHER
85340-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

 1
85330S - BUSH, REAR WASHER JAR
85336-05070

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
85372D - GROMMET, REAR WASHER HOSE
85373-20100

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
Common parts
82711-1A750
85371-05040
90069-16008
90069-16009
90069-16011
