AT221R-ALPEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

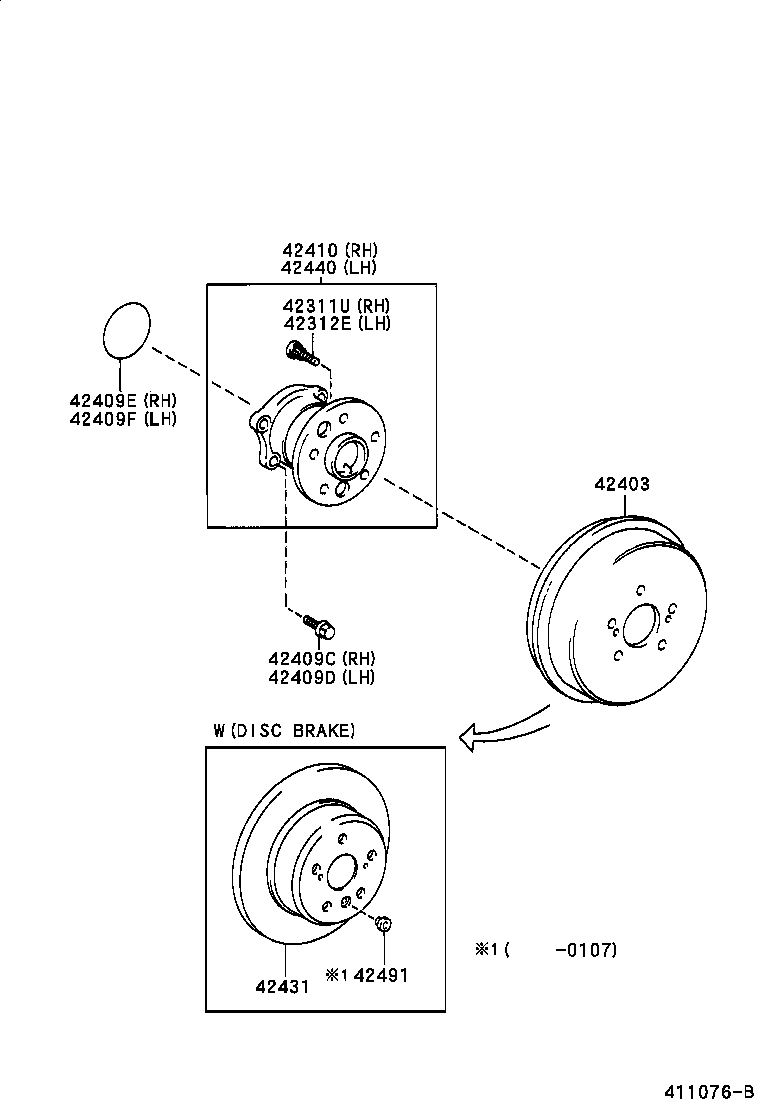

Click highlighted areas on diagram

diagram 42311U 42312E 42403 42409C 42409D 42409E 42409F 42410 42431 42440 42491
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 5
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-05020

AT22#,CDT220,CT220,ST220

 2
42409C - BOLT (FOR REAR AXLE BEARING RH)
90105-10124

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 4
42409D - BOLT (FOR REAR AXLE BEARING LH)
90105-10124

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 4
42409E - RING, O (FOR REAR AXLE BEARING RH)
90301-63003

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
42409F - RING, O (FOR REAR AXLE BEARING LH)
90301-63003

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
42410 - HUB & BEARING ASSY, REAR AXLE, RH
42450-05030

AT22#,CT220,ST220..EFI,TDEFI

W(ABS)

 1
42440 - HUB & BEARING ASSY, REAR AXLE, LH
42450-05030

AT22#,CT220,ST220..EFI,TDEFI

W(ABS)

 1
