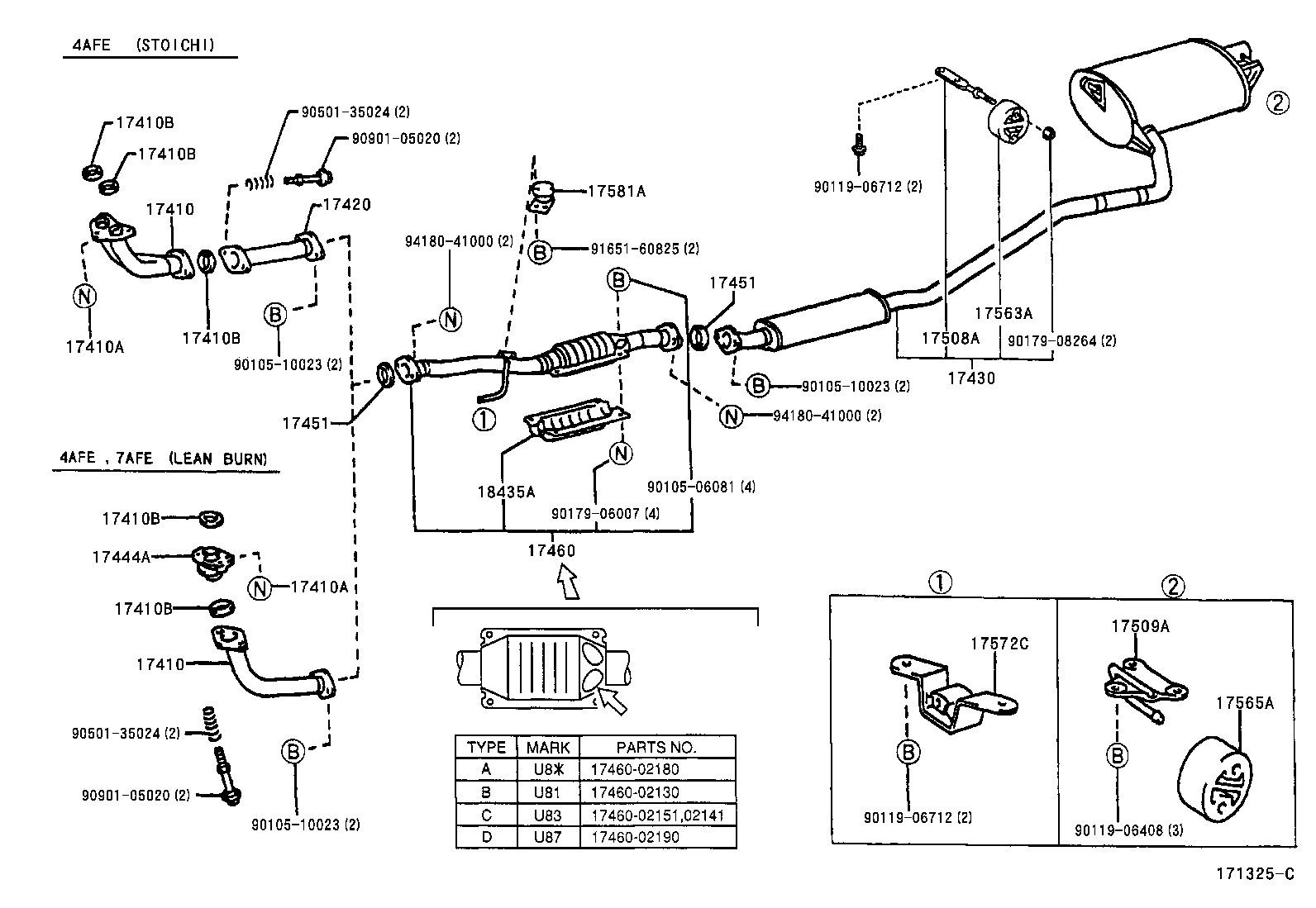

AT221R-ALPEKW (1997)
Toyota Avensis
(9710-0007)4AFE,7AFE
W(CONVERTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-02340 |
7AFE..AT221 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-02340 |
7AFE..AT221 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
7AFE..AT221;4AFE..AT220..TERRA LEAN BURN |
2 | ||
| 90179-10070 |
4AFE..AT220..RHD;7AFE,3SFE..AT221,ST220 |
2 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
7AFE..AT221;4AFE..AT220..TERRA LEAN BURN |
2 | ||
| 90179-10070 |
4AFE..AT220..RHD;7AFE,3SFE..AT221,ST220 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-02030 |
4AFE,7AFE,3SFE..AT22#,ST220 REAR |
1 | ||
| 90917-06065 |
7AFE..AT221;4AFE..AT220..TERRA LEAN BURN,FRONT |
1 | ||
| 90917-06065 |
4AFE..AT220..RHD;7AFE,3SFE..AT221,ST220 FRONT |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-02030 |
4AFE,7AFE,3SFE..AT22#,ST220 REAR |
1 | ||
| 90917-06065 |
7AFE..AT221;4AFE..AT220..TERRA LEAN BURN,FRONT |
1 | ||
| 90917-06065 |
4AFE..AT220..RHD;7AFE,3SFE..AT221,ST220 FRONT |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-02030 |
4AFE,7AFE,3SFE..AT22#,ST220 REAR |
1 | ||
| 90917-06065 |
7AFE..AT221;4AFE..AT220..TERRA LEAN BURN,FRONT |
1 | ||
| 90917-06065 |
4AFE..AT220..RHD;7AFE,3SFE..AT221,ST220 FRONT |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-02030 |
4AFE,7AFE,3SFE..AT22#,ST220 REAR |
1 | ||
| 90917-06065 |
7AFE..AT221;4AFE..AT220..TERRA LEAN BURN,FRONT |
1 | ||
| 90917-06065 |
4AFE..AT220..RHD;7AFE,3SFE..AT221,ST220 FRONT |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-02030 |
4AFE,7AFE,3SFE..AT22#,ST220 REAR |
1 | ||
| 90917-06065 |
7AFE..AT221;4AFE..AT220..TERRA LEAN BURN,FRONT |
1 | ||
| 90917-06065 |
4AFE..AT220..RHD;7AFE,3SFE..AT221,ST220 FRONT |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-02181 |
4AFE,7AFE,3SFE..AT22#,ST220..LB,SED |
1 | ||
| 17430-02180 |
4AFE,7AFE,3SFE..AT22#,ST220..LB,SED |
1 | ||
| 17444A - SPACER, EXHAUST FRONT PIPE | ||||
| 17444-02030 |
7AFE..AT221;4AFE..AT220..RHD |
1 | ||
| 17444-02030 |
7AFE..AT221;4AFE..AT220..TERRA |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06046 |
4AFE,7AFE,3SFE..AT22#,ST220 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06046 |
4AFE,7AFE,3SFE..AT22#,ST220 |
2 | ||
| 17460 - CONVERTER ASSY, CATALYTIC W/PIPE | ||||
| 17460-02151 |
7AFE..AT221 LEAN BURN;TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 17460-02220 |
7AFE..AT221 *115=TOYOTA/-00/N,LEAN BURN |
1 | ||
| 17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17508-02050 |
4AFE,7AFE,1CDFTV,2CT#,3SFE..AT22#,CDT220,CT220,ST220 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-02020 |
1AZFSE,4AFE,7AFE,1CDFTV,2CT#,3SFE,1ZZFE,3ZZFE..AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-16270 |
4AFE,7AFE,1CDFTV,2CT#,3SFE..AT22#,CDT220,CT220,ST220 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-16270 |
4AFE,7AFE,1CDFTV,2CT#,3SFE..AT22#,CDT220,CT220,ST220 |
1 | ||
| 17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-74430 |
1AZFSE,4AFE,7AFE,3SFE,1ZZFE,3ZZFE..AT22#,AZT220,ST220,ZZT22# |
1 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-16070 |
4AFE,7AFE..AT22# |
1 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18435-02030 |
4AFE,7AFE..AT22# |
1 | ||
| Common parts | ||||
| 90105-06081 | ||||
| 90105-10023 | ||||
| 90119-06408 | ||||
| 90119-06712 | ||||
| 90179-06007 | ||||
| 90179-08264 | ||||
| 90501-35024 | ||||
| 90901-05020 | ||||
| 91651-60825 | ||||
| 94180-41000 | ||||
