AT221R-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9710- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

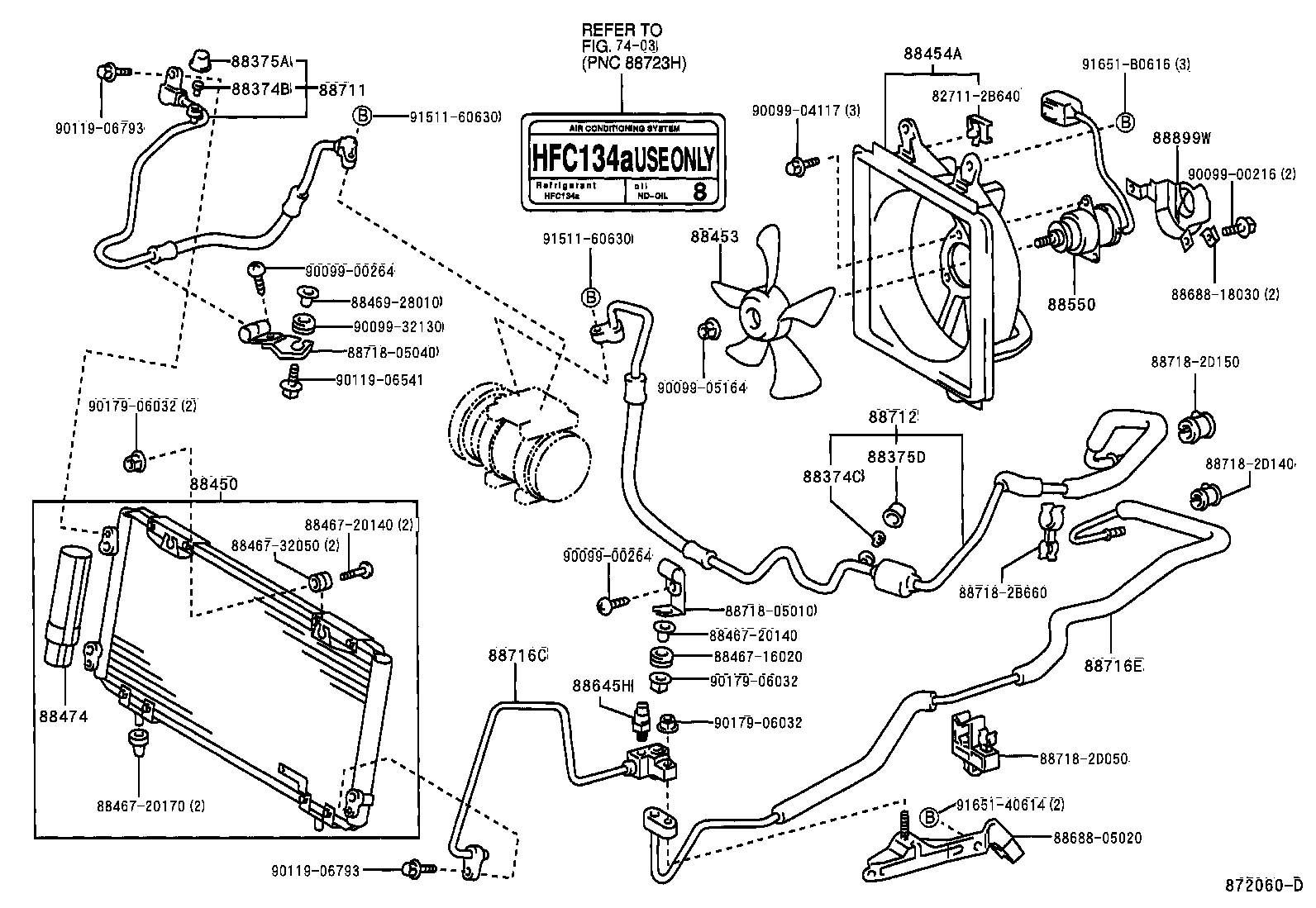

ILLUST NO. 1 OF 2(9710-0007)AT22#,ST220..RHD

Click highlighted areas on diagram

MAKER OPTION

diagram 7403 827112B640 88374B 88374C 88375A 88375D 88450 88453 88454A 8846716020 8846720140 8846720140 8846720170 8846732050 8846928010 88474 88550 88645H 8868805020 8868818030 88711 88712 88716C 88716E 8871805010 8871805040 887182B660 887182D050 887182D140 887182D150 88899W 9009900216 9009900264 9009900264 9009904117 9009905164 9009932130 9011906541 9011906793 9011906793 9017906032 9017906032 9017906032 9151160630 9151160630 9165140614 91651B0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AT22#,CT220,ST220

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05020

AT22#,CDT220,CT220,ST220..RHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-02110

AT220..RHD;AT221,ST220,ZZT22#

 1
88454A - SHROUD, FAN
16711-02070

AT220..RHD;AT221,ST220,ZZT22#

 1
88474 - DRYER, COOLER
88474-47010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-74250

AT221,ST220;AT220..TERRA

 1
88550-33010

AT220..RHD;AT221,ST220

 1
16363-74250

AT220..RHD;AT221,ST220

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-05010

AT22#..RHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05010

AT22#..RHD

MAKER OPTION

 1
88712-05070

AT22#..RHD

DEALER OPTION

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-05090

AT22#,CDT220,CT220,ST220..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-05070

AT22#,ST220,ZZT22#..RHD

 1
88899W - SUPPORT SUB-ASSY, B
16374-02010

AT220..RHD;AT221,ST220

 1
Common parts
82711-2B640
88467-16020
88467-20140
88467-20170
88467-32050
88469-28010
88688-05020
88688-18030
88718-05010
88718-05040
88718-2B660
88718-2D050
88718-2D140
88718-2D150
90099-00216
90099-00264
90099-04117
90099-05164
90099-32130
90119-06541
90119-06793
90179-06032
91511-60630
91651-40614
91651-B0616
Linked diagrams
7403

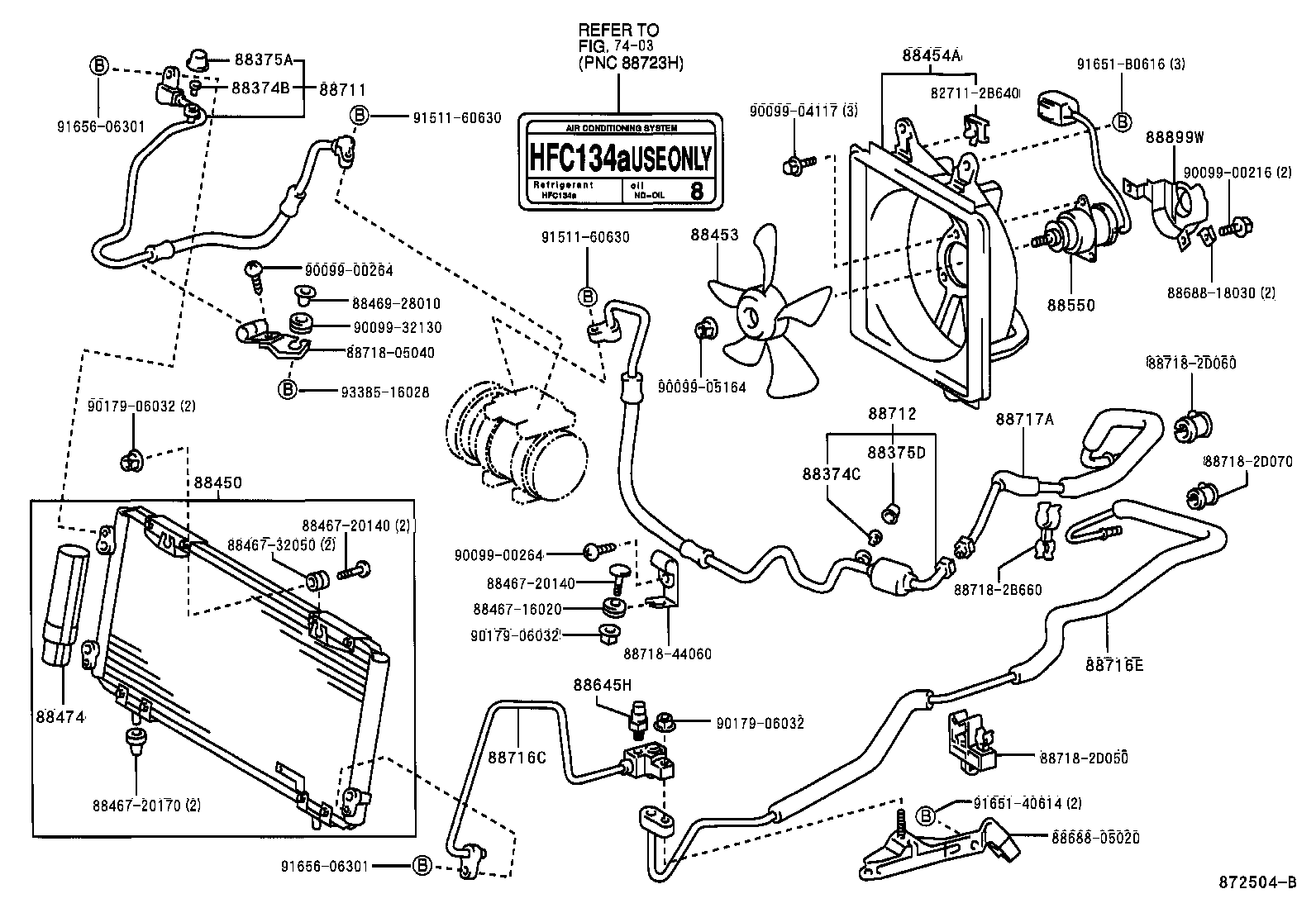

ILLUST NO. 1 OF 2(9710-0007)AT22#..RHD

Click highlighted areas on diagram

DEALER OPTION

diagram 7403 827112B640 88374B 88374C 88375A 88375D 88450 88453 88454A 8846716020 8846720140 8846720140 8846720170 8846732050 8846928010 88474 88550 88645H 8868805020 8868818030 88711 88712 88716C 88716E 88717A 8871805040 887182B660 887182D050 887182D060 887182D070 8871844060 88899W 9009900216 9009900264 9009900264 9009904117 9009905164 9009932130 9017906032 9017906032 9017906032 9151160630 9151160630 9165140614 91651B0616 9165606301 9165606301 9338516028
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AT22#,CT220,ST220

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05020

AT22#,CDT220,CT220,ST220..RHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-02110

AT220..RHD;AT221,ST220,ZZT22#

 1
88454A - SHROUD, FAN
16711-02070

AT220..RHD;AT221,ST220,ZZT22#

 1
88474 - DRYER, COOLER
88474-47010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-74250

AT221,ST220;AT220..TERRA

 1
88550-33010

AT220..RHD;AT221,ST220

 1
16363-74250

AT220..RHD;AT221,ST220

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-05010

AT22#..RHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05010

AT22#..RHD

MAKER OPTION

 1
88712-05070

AT22#..RHD

DEALER OPTION

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-05090

AT22#,CDT220,CT220,ST220..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-05070

AT22#,ST220,ZZT22#..RHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-05070

AT22#..RHD

 1
88899W - SUPPORT SUB-ASSY, B
16374-02010

AT220..RHD;AT221,ST220

 1
Common parts
82711-2B640
88467-16020
88467-20140
88467-20170
88467-32050
88469-28010
88688-05020
88688-18030
88718-05040
88718-2B660
88718-2D050
88718-2D060
88718-2D070
88718-44060
90099-00216
90099-00264
90099-04117
90099-05164
90099-32130
90179-06032
91511-60630
91651-40614
91651-B0616
91656-06301
93385-16028
Linked diagrams
7403
