AT221R-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9710-0007)

Click highlighted areas on diagram

IMMOBILIZER

diagram 8420 8420 89703 89709 89770 89770B 89780 89785 89785A 89786 89786A
Part # Description Qty Price
89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89703-05071

AT22#,CDT220,CT220..DCR,EFI,TDEFI

 1
89703-05070

AT22#,CT220..EFI,TDEFI

 1
89709 - COMPUTER SET, TRANSPONDER KEY
89709-05240

AT22#,CT220..RHD

W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))

 1
89709-05241

AT22#,CDT220,CT220..RHD

 1
89709-05220

AT22#,CT220..RHD

 1
89770 - TRANSMITTER ASSY,TRANSPONDER IMMOBILIZER&WIRELESS(BLANK
89770-05020

AT22#,CT220,ST220..RHD

 1
89770-02020

AT22#,CDT220,CT220,ST220..RHD

 1
89770B - TRANSMITTER ASSY, TRANSPONDER W/IMMOBILIZER & WIRELESS(
89770-05030

AT22#,CT220,ST220..RHD

 1
89770-02030

AT22#,CDT220,CT220,ST220..RHD

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-05021

AT22#,CDT220,CT220..DCR,EFI,TDEFI

 1
89780-05020

AT22#,CT220..EFI,TDEFI

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-02050

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

 1
89785-05020

AT22#,CT220,ST220..EFI,TDEFI

 1
89785A - TRANSMITTER, TRANSPONDER CUT KEY MASTER
89785-02060

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

 1
89785-05030

AT22#,CT220,ST220..EFI,TDEFI

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-05020

AT22#,CT220,ST220..EFI,TDEFI

 1
89786-02020

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

 1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-02030

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

 1
89786-05030

AT22#,CT220,ST220..EFI,TDEFI

 1
Linked diagrams
8420

ILLUST NO. 2 OF 2(9710- )RHD

Click highlighted areas on diagram

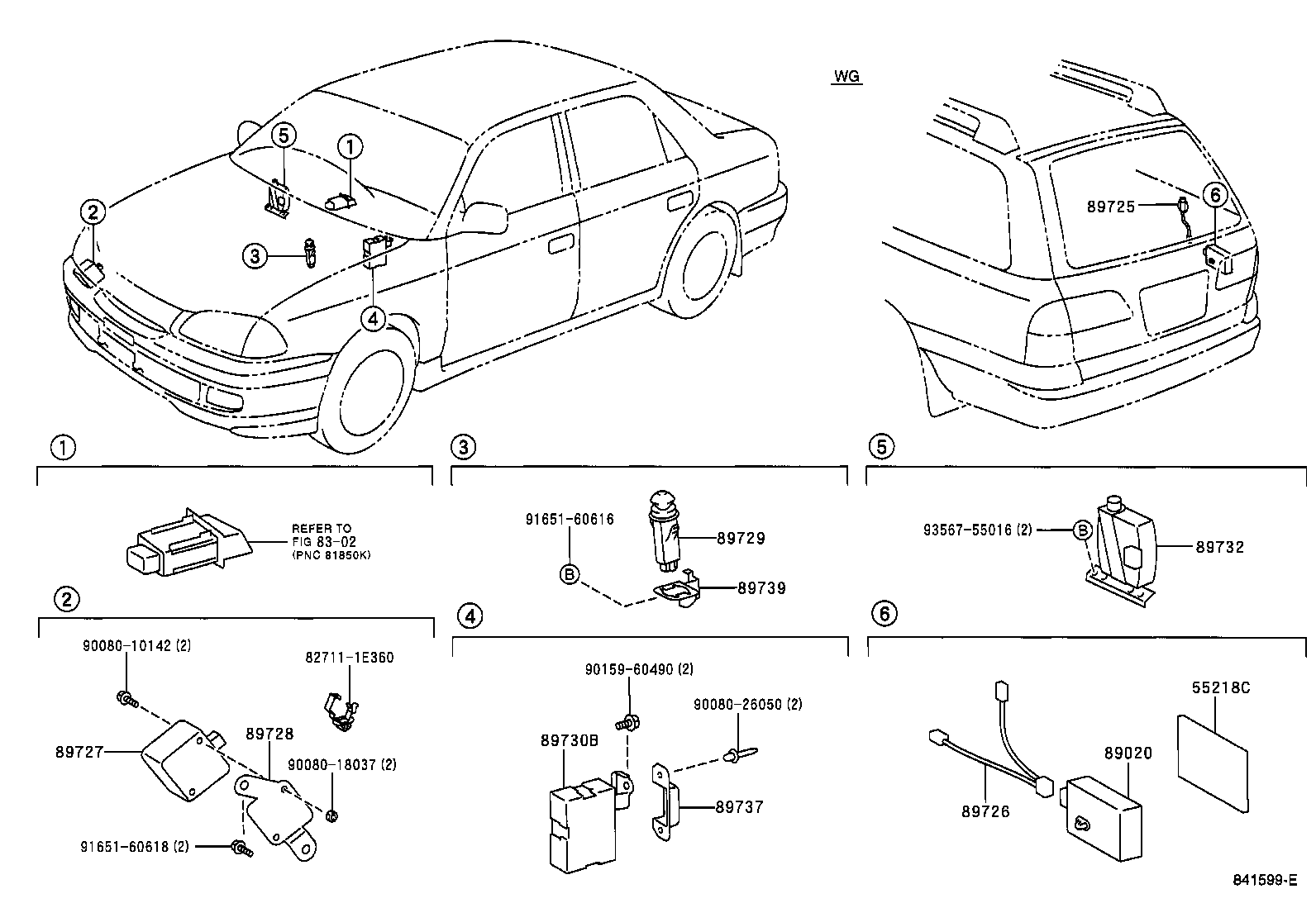

THEFT WARNING SYSTEM

diagram 55218C 827111E360 8302 89020 89725 89726 89727 89728 89729 89730B 89732 89737 89739 9008010142 9008018037 9008026050 9015960490 9165160616 9165160618 9356755016
Part # Description Qty Price
89727 - SIREN, THEFT WARNING
89727-05010

AT22#,CDT220,CT220,ST220..RHD

 1
89728 - BRACKET, THEFT WARNING SIREN
89728-05010

AT22#,CDT220,CT220,ST220..RHD

 1
89729 - SWITCH, THEFT WARNING COURTESY
89729-05010

AT22#,CDT220,CT220,ST220..RHD

 1
89730B - COMPUTER ASSY, THEFT WARNING
89730-05010

AT22#,CDT220,CT220,ST220..RHD

 1
89732 - SENSOR, THEFT WARNING RADAR
89732-05010

AT22#,CDT220,CT220,ST220..RHD

 1
89737 - BRACKET, THEFT WARNING COMPUTER, NO.1
89737-05010

AT22#,CDT220,CT220,ST220..RHD

 1
89739 - BRACKET, THEFT WARNING COURTESY SWITCH
89739-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
Common parts
82711-1E360
90080-10142
90080-18037
90080-26050
90159-60490
91651-60616
91651-60618
93567-55016
Linked diagrams
8302
