AT221R-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )LB

Click highlighted areas on diagram

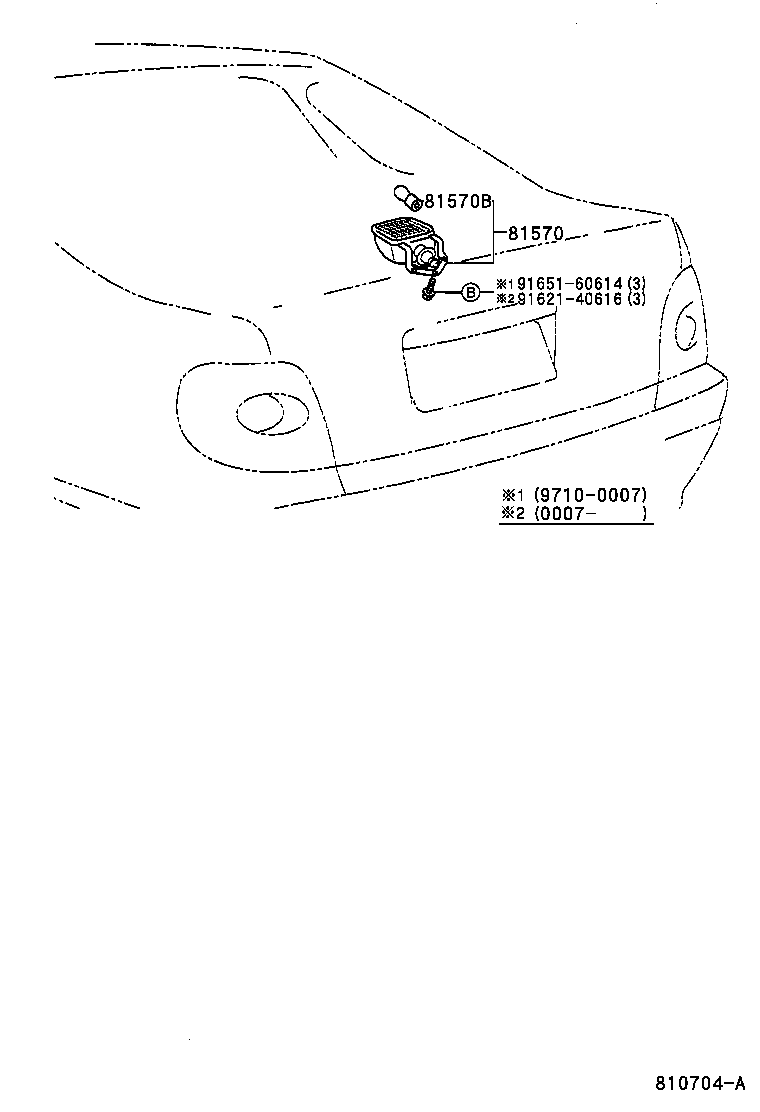

diagram 81570 81570B 9162140616 9165160614
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-0W040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
81570B - BULB (FOR CENTER STOP LAMP)
90080-81035

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 21W

 1
Common parts
91621-40616
91651-60614
