AT221R-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )LB

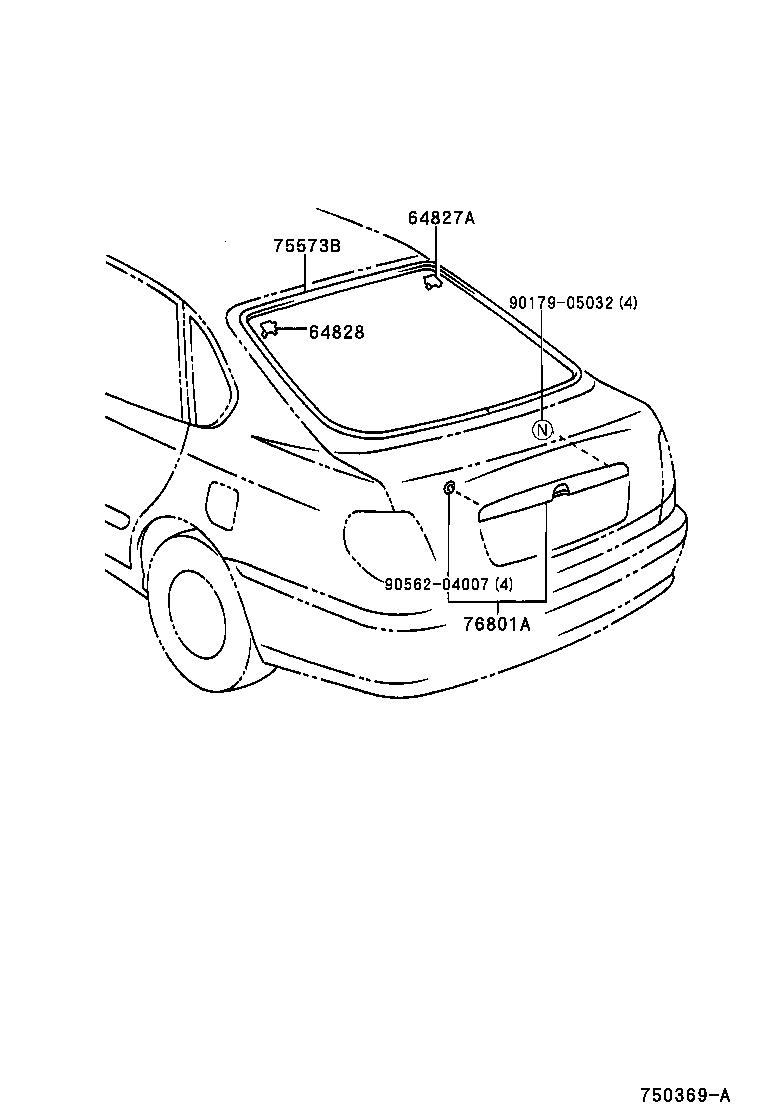

Click highlighted areas on diagram

diagram 64827A 64828 75573B 76801A 9017905032 9056204007
Part # Description Qty Price
64827A - CLIP, BACK WINDOW GLASS, RH
64827-20050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
64828 - CLIP, BACK WINDOW GLASS, LH
64828-20020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
75573B - MOULDING, BACK WINDOW, OUTSIDE
75573-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-05020A0

AT22#,CT220,ST220..LB

SUPER WHITE 2,040

 1
76801-05020H0

AT22#,CT220,ST220..LB

DP.TURQUOISE MC.,758

 1
76801-05020J0

AT22#,CT220,ST220..LB

STRONG BLUE M,8B6

 1
76801-05020G0

AT22#,CDT220,CT220,ST220..LB

DK.GREEN M.M.,6P3

 1
76801-05020K0

AT22#,CDT220,CT220,ST220..LB

DK.PURPLE M.M.,945

 1
76801-05020D1

AT22#,CDT220,CT220,ST220..LB

RED M.M.,3M3

 1
76801-05020J0

AT22#,CDT220,CT220,ST220..LB

STRONG BLUE M,8B6

 1
76801-05020J2

AT22#,CDT220,CT220,ST220..LB

DK.BLUE ME.,8N3

 1
76801-05020G1

AT22#,CDT220,CT220,ST220..LB

LT.GREEN ME.,6Q2

 1
76801-05020C0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

BLACK ME,205

 1
76801-05020B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SILVER ME,199

 1
76801-05020J1

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

DK.BLUE,8M4

 1
76801-05020A0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SUPER WHITE 2,040

 1
76801-05020D0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SU.RED 3,3J6

 1
Common parts
90179-05032
90562-04007
