AT221R-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

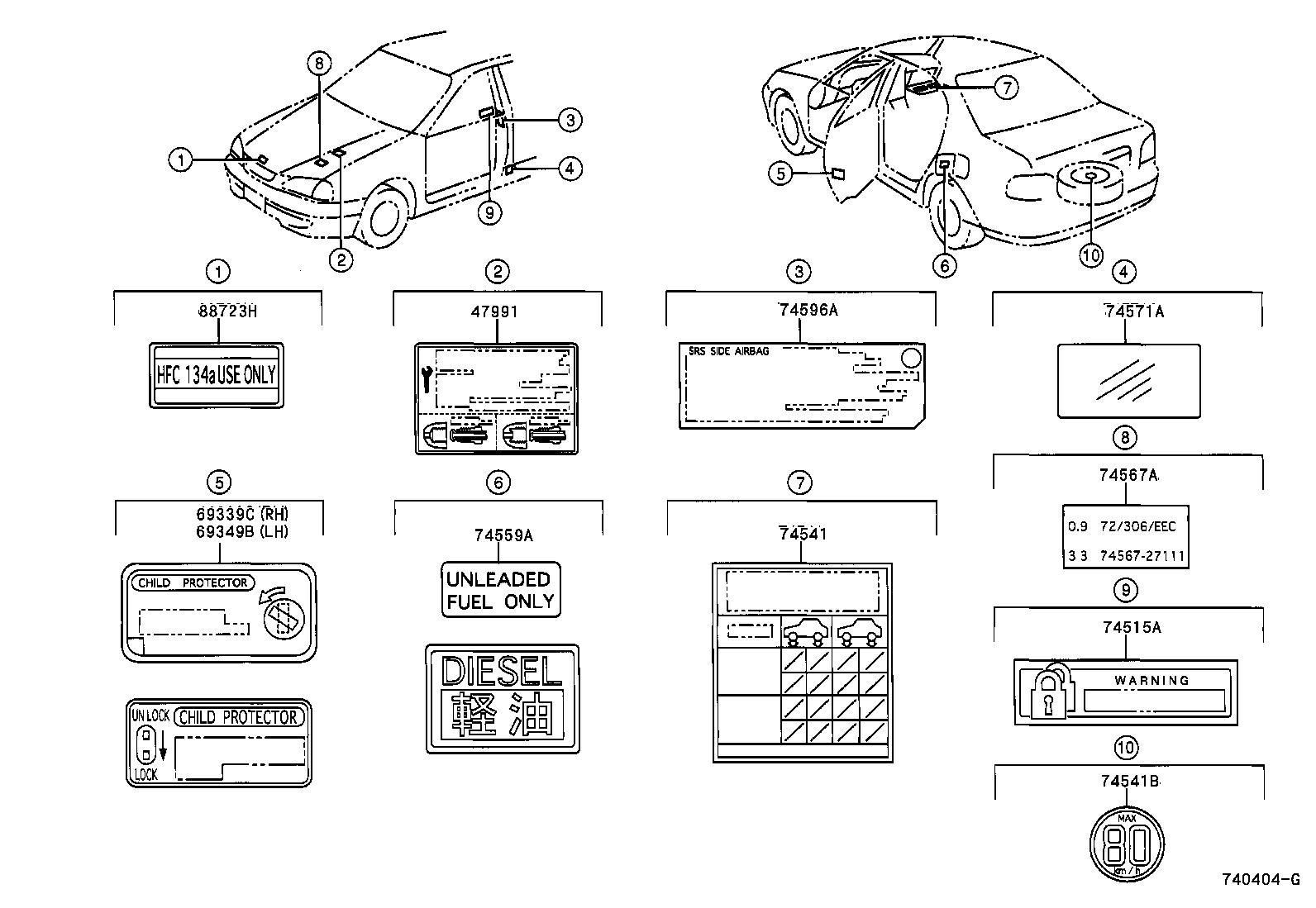

Click highlighted areas on diagram

diagram 47991 69339C 69349B 74515A 74541 74541B 74559A 74567A 74571A 74596A 88723H
Part # Description Qty Price
47991 - LABEL, BRAKE TUBE INFORMATION
47991-33010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-05020

AT22#,CDT220,CT220,ST220

 1
69349B - LABEL, CHILD PROTECTOR INFORMATION, LH
69349-05020

AT22#,CDT220,CT220,ST220

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-05100

AT22#,CT220..TERRA

 1
42661-05110

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

W(REAR DISC BRAKE)

 1
74559A - PLATE, FUEL CAUTION
74559-05010

AT22#,AZT220,ST220,ZZT22#

 1
74571A - FILM, LABEL COVER
74571-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12011

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
88723H - LABEL, COOLER SERVICE CAUTION
88723-20040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
