AT221R-ALMNKW (1997)
Toyota Avensis
(9710- )

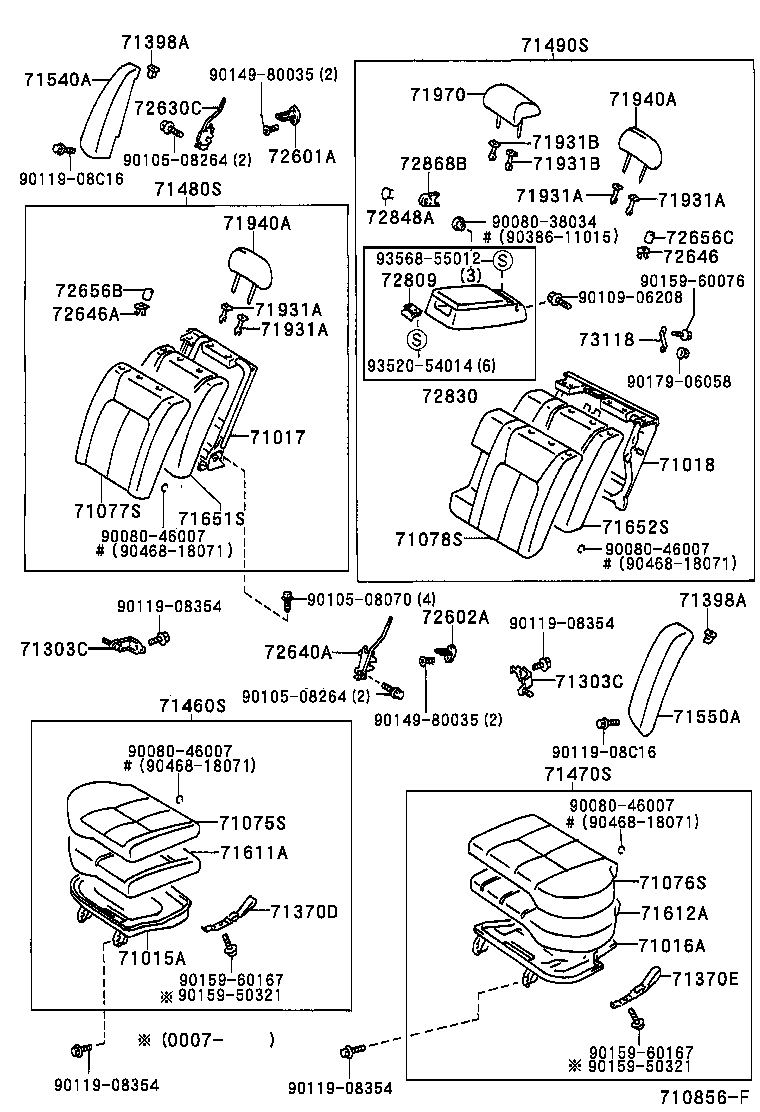

SEPARATE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-05230B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71075-05231B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71075-05231B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71075-05231G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71075-05230G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71075-05290B0 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71075-05231G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-05100B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71076-05100G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71076-05101B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71076-05101B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71076-05101G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71076-05140B0 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71076-05101G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-05180G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71077-05180B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-05181G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71077-05220B1 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-05181G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71077-05181B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-05181B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-05150G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71078-05151B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-05151G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71078-05190B1 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-05151B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-05150B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-05151G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 71370D - HOLDER ASSY, REAR SEAT CUSHION, RH | ||||
| 71370-05010C0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG BLACK,TRIM1#,6# |
1 | ||
| 71370E - HOLDER ASSY, REAR SEAT CUSHION, LH | ||||
| 71370-05010C0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG BLACK,TRIM1#,6# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-32010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-32010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-05220G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71460-05220B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71460-05221B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71460-05221B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71460-05221G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71460-05280B0 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71460-05221G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-05100B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71470-05101G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71470-05100G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71470-05101B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71470-05101G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71470-05101B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71470-05140B0 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-05290B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-05291G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71480-05291B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-05290G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71480-05350B0 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-05291B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-05291G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-05260B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71490-05261B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71490-05260G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71490-05261G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71490-05261G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71490-05320B0 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71490-05261B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-05050B0 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71540-05050G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71540-05080B1 |
ST220..RHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71540-05050G0 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71540-05050B0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-05050B0 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71550-05050G0 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71550-05050G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71550-05080B1 |
ST220..RHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71550-05050B0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
1 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
1 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-05050G0 |
AT22#,CDT220,CT220..TERRA SLATE GREEN,TRIM6# |
2 | ||
| 71940-05050B0 |
AT22#,CDT220,CT220..TERRA MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-05080B1 |
ST220..RHD;AT22#,CDT220,CT220..TERRA LINEA LUNA,MEDIUM GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-05050G0 |
AT22#,CDT220,CT220..TERRA SLATE GREEN,TRIM6# |
2 | ||
| 71940-05050B0 |
AT22#,CDT220,CT220..TERRA MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-05080B1 |
ST220..RHD;AT22#,CDT220,CT220..TERRA LINEA LUNA,MEDIUM GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71960-05010B0 |
AT22#,CDT220,CT220..TERRA MEDIUM GRAY,TRIM1# |
1 | ||
| 71960-05010G0 |
AT22#,CDT220,CT220..TERRA SLATE GREEN,TRIM6# |
1 | ||
| 71960-05040B1 |
ST220..RHD;AT22#,CDT220,CT220..TERRA LINEA LUNA,MEDIUM GRAY,TRIM1# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-20250 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-20250 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG SLATE GREEN,TRIM6# |
1 | ||
| 72646-05030B0 |
AT22#,CDT220,CT220,ST220..LB,WG MD.GRAY,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-05030B0 |
AT22#,CDT220,CT220,ST220..LB,WG MD.GRAY,TRIM1# |
1 | ||
| 72646-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG SLATE GREEN,TRIM6# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72661-05010B1 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05010B1 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72661-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72809 - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-50020G2 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72809-50020B2 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-05050G1 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 72830-05050B1 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-05050G1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 72830-05050B1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-05060B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72848-05010B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72868-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 73118 - PLATE, BELT SUPPORT | ||||
| 73118-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90080-38034 | ||||
| 90080-46007 | ||||
| 90105-08070 | ||||
| 90105-08264 | ||||
| 90109-06208 | ||||
| 90119-08354 | ||||
| 90119-08C16 | ||||
| 90149-80035 | ||||
| 90159-50321 | ||||
| 90159-60076 | ||||
| 90159-60167 | ||||
| 90179-06058 | ||||
| 90386-11015 | ||||
| 90468-18071 | ||||
| 93520-54014 | ||||
| 93568-55012 | ||||

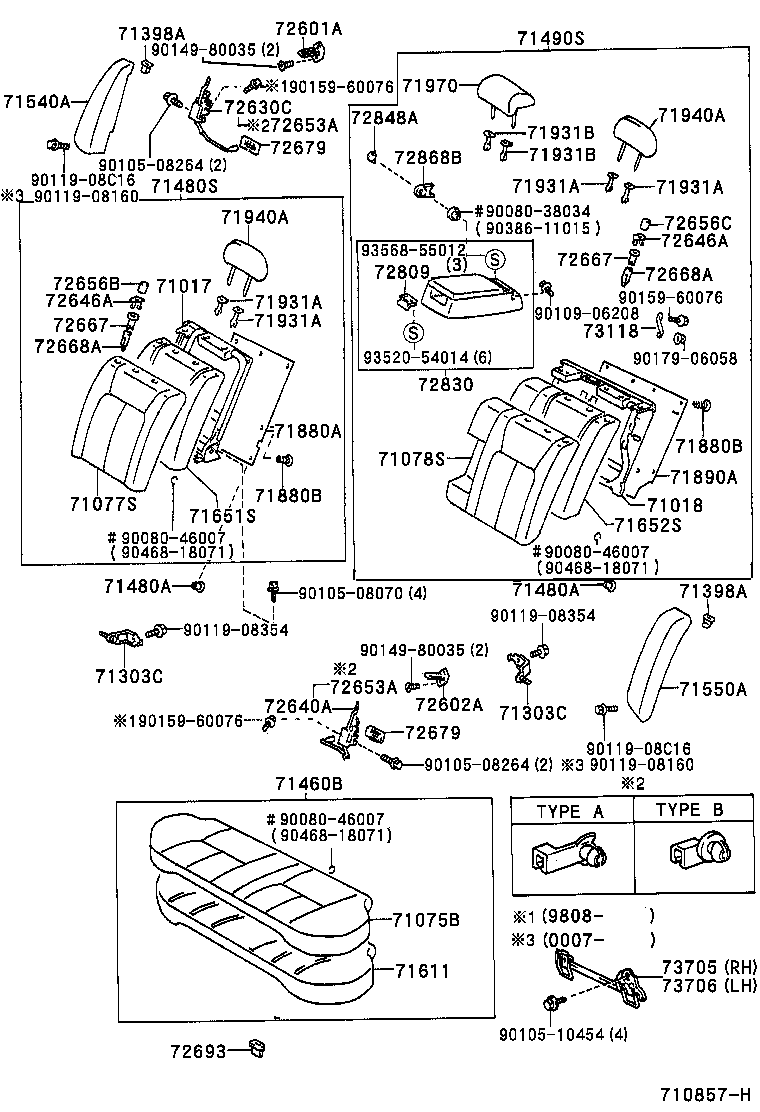

(9710- )
BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-05180G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71077-05180B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-05181G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71077-05220B1 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-05181G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71077-05181B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-05181B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-05150G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71078-05151B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-05151G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71078-05190B1 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-05151B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-05150B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-05151G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT. GREEN,TRIM6# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-32010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-32010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-05290B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-05291G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71480-05291B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-05290G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71480-05350B0 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-05291B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-05291G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-05260B0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71490-05261B2 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71490-05260G0 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71490-05261G1 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71490-05261G1 |
AT22#,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,LT.GREEN,TRIM6# |
1 | ||
| 71490-05320B0 |
ST220..RHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71490-05261B2 |
ST220..LHD..(LB,WG);AT22#,CDT220,CT220..(LB,WG)..TERRA SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-05050B0 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71540-05050G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71540-05080B1 |
ST220..RHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71540-05050G0 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71540-05050B0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-05050B0 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71550-05050G0 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71550-05050G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71550-05080B1 |
ST220..RHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71550-05050B0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
1 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
1 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-05050G0 |
AT22#,CDT220,CT220..TERRA SLATE GREEN,TRIM6# |
2 | ||
| 71940-05050B0 |
AT22#,CDT220,CT220..TERRA MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-05080B1 |
ST220..RHD;AT22#,CDT220,CT220..TERRA LINEA LUNA,MEDIUM GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-05050G0 |
AT22#,CDT220,CT220..TERRA SLATE GREEN,TRIM6# |
2 | ||
| 71940-05050B0 |
AT22#,CDT220,CT220..TERRA MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-05080B1 |
ST220..RHD;AT22#,CDT220,CT220..TERRA LINEA LUNA,MEDIUM GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71960-05010B0 |
AT22#,CDT220,CT220..TERRA MEDIUM GRAY,TRIM1# |
1 | ||
| 71960-05010G0 |
AT22#,CDT220,CT220..TERRA SLATE GREEN,TRIM6# |
1 | ||
| 71960-05040B1 |
ST220..RHD;AT22#,CDT220,CT220..TERRA LINEA LUNA,MEDIUM GRAY,TRIM1# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-20250 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-20250 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-05030B0 |
AT22#,CDT220,CT220,ST220..LB,WG MD.GRAY,TRIM1# |
1 | ||
| 72646-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG SLATE GREEN,TRIM6# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-05030B0 |
AT22#,CDT220,CT220,ST220..LB,WG MD.GRAY,TRIM1# |
1 | ||
| 72646-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG SLATE GREEN,TRIM6# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72661-05010B1 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05010B1 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72661-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72809 - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-50020G2 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72809-50020B2 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-05050G1 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 72830-05050B1 |
AT22#,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-05050G1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,SLATE GREEN,TRIM6# |
1 | ||
| 72830-05050B1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE C OR TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-05060B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72848-05010B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72868-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 73118 - PLATE, BELT SUPPORT | ||||
| 73118-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90080-38034 | ||||
| 90080-46007 | ||||
| 90105-08070 | ||||
| 90105-08264 | ||||
| 90105-10454 | ||||
| 90109-06208 | ||||
| 90119-08160 | ||||
| 90119-08354 | ||||
| 90119-08C16 | ||||
| 90149-80035 | ||||
| 90159-60076 | ||||
| 90179-06058 | ||||
| 90386-11015 | ||||
| 90468-18071 | ||||
| 93520-54014 | ||||
| 93568-55012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
