AT221R-ALMNKW (1997)
Toyota Avensis
ILLUST NO. 1 OF 2(9710- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-05730B0 |
AT22#,CT220..TERRA TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-05740B0 |
AT22#,CT220..TERRA W(SPEAKER) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67010-05040B1 |
AT22#,CT220..TERRA TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-05730G0 |
AT22#,CT220..TERRA TRIM = TYPE E-*104,GREEN,TRIM6# |
1 | ||
| 67630-05750B0 |
AT22#,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-05750G0 |
AT22#,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE E-*104,GREEN,TRIM6# |
1 | ||
| 67630-05760G0 |
AT22#,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE E-*104,GREEN,TRIM6# |
1 | ||
| 67630-05760B0 |
AT22#,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67010-05050B1 |
AT22#,CT220..TERRA W(SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67010-05050G0 |
AT22#,CT220..TERRA W(SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67010-05060G0 |
AT22#,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67010-05040G0 |
AT22#,CT220..TERRA TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67010-05060B1 |
AT22#,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67010-05070B1 |
AT22#,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67010-05010B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW---FRONT ONLY) & W(SPEAKER) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67010-05070G0 |
AT22#,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67010-05040B1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-05740G0 |
AT22#,CT220..TERRA W(SPEAKER) & TRIM = TYPE E-*104,GREEN,TRIM6# |
1 | ||
| 67010-05030B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW---FRONT & REAR) & W(SPEAKER) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67010-05040G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67010-05060B1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-05890B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW---FRONT ONLY) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67010-05050G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67010-05070G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67010-05050B1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67010-05070B1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67010-05060G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67010-05020B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW---FRONT & REAR) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90080-46230B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
13 | ||
| 90080-46230G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
13 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-05760B0 |
AT22#,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-05730G0 |
AT22#,CT220..TERRA TRIM = TYPE E-*104,GREEN,TRIM6# |
1 | ||
| 67640-05740G0 |
AT22#,CT220..TERRA W(SPEAKER) & TRIM = TYPE E-*104,GREEN,TRIM6# |
1 | ||
| 67640-05750G0 |
AT22#,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE E-*104,GREEN,TRIM6# |
1 | ||
| 67640-05740B0 |
AT22#,CT220..TERRA W(SPEAKER) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-05730B0 |
AT22#,CT220..TERRA TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67020-05060B1 |
AT22#,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-05750B0 |
AT22#,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE E-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-05760G0 |
AT22#,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE E-*104,GREEN,TRIM6# |
1 | ||
| 67020-05060G0 |
AT22#,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67020-05050B1 |
AT22#,CT220..TERRA W(SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67020-05040B1 |
AT22#,CT220..TERRA TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67020-05040G0 |
AT22#,CT220..TERRA TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67020-05050G0 |
AT22#,CT220..TERRA W(SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67020-05070B1 |
AT22#,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67020-05030B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW---FRONT & REAR) & W(SPEAKER) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67020-05070G0 |
AT22#,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67020-05020B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW---FRONT & REAR) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-05890B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW---FRONT ONLY) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67020-05050B1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67020-05040G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67020-05050G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67020-05040B1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67020-05010B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW---FRONT ONLY) & W(SPEAKER) & TRIM = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67020-05070B1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67020-05060B1 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE C-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 67020-05060G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67020-05070G0 |
ST220..LHD;AT22#,CDT220,CT220..TERRA W(POWER WINDOW & SPEAKER) & TRIM = TYPE C-*104,SLATE GREEN,TRIM6# |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67628-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67628-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 67653D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, RH | ||||
| 67653-05010B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 67653-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 67654D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, LH | ||||
| 67654-05010B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 67654-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-20140 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG (J),RH |
1 | ||
| 68174-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG (J),LH |
1 | ||
| 74294 - PLATE, REAR DOOR ARMREST, NO.2 | ||||
| 74295-05010 |
AT22#,CDT220,CT220,ST220 RH |
1 | ||
| 74296-05010 |
AT22#,CDT220,CT220,ST220 LH |
1 | ||
| Common parts | ||||
| 67772-05020 | ||||
| 90080-18033 | ||||
| 90189-06018 | ||||
| 93590-16016 | ||||

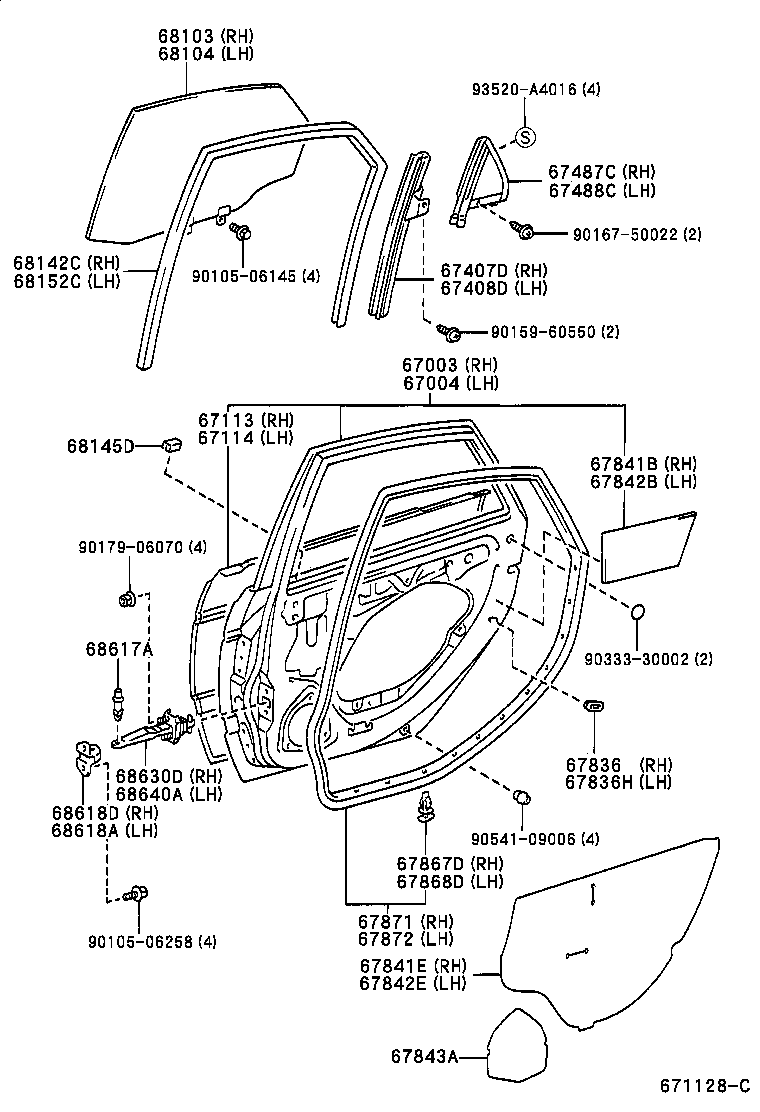

ILLUST NO. 2 OF 2(9710- )LB,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-05060 |
AT22#,CDT220,CT220,ST220..LB |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-05060 |
AT22#,CDT220,CT220,ST220..LB |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG (L) |
1 | ||
| 67407-20300 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG (J) |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-20290 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG (J) |
1 | ||
| 67408-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG (L) |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-20370 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67805-05040 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 67842B - COVER, REAR DOOR SERVICE HOLE, LOWER | ||||
| 67842-20260 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67805-05040 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 67843A - COVER, REAR DOOR SERVICE HOLE, NO.2 | ||||
| 67843-05020 |
AT22#,CDT220,CT220,ST220 |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-05050 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-05050 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-05050 |
AT22#,CT220..LB..TERRA *TEM,T=3.1,GREEN |
1 | ||
| 68103-05050 |
ST220..LB;AT22#,CT220..LB..TERRA *TEM,T=3.1,GREEN,LINEA LUNA |
1 | ||
| 68103-05080 |
AT22#,CDT220,CT220,ST220..LB *TEM,T=3.1,DK.GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-05050 |
AT22#,CT220..LB..TERRA *TEM,T=3.1,GREEN |
1 | ||
| 68104-05050 |
ST220..LB;AT22#,CT220..LB..TERRA *TEM,T=3.1,GREEN,LINEA LUNA |
1 | ||
| 68104-05080 |
AT22#,CDT220,CT220,ST220..LB *TEM,T=3.1,DK.GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-05050 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB |
1 | ||
| 68145D - CUSHION, REAR DOOR WINDOW | ||||
| 68145-05020 |
AT22#,CT220,ST220 |
2 | ||
| 68145-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG |
2 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-05050 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20011 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 68618-20020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 68618D - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 68618-20020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-05031 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 68630-05030 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-05030 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 68630-05031 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90105-06145 | ||||
| 90105-06258 | ||||
| 90159-60550 | ||||
| 90167-50022 | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90541-09006 | ||||
| 93520-A4016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
