AT221R-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )RHD

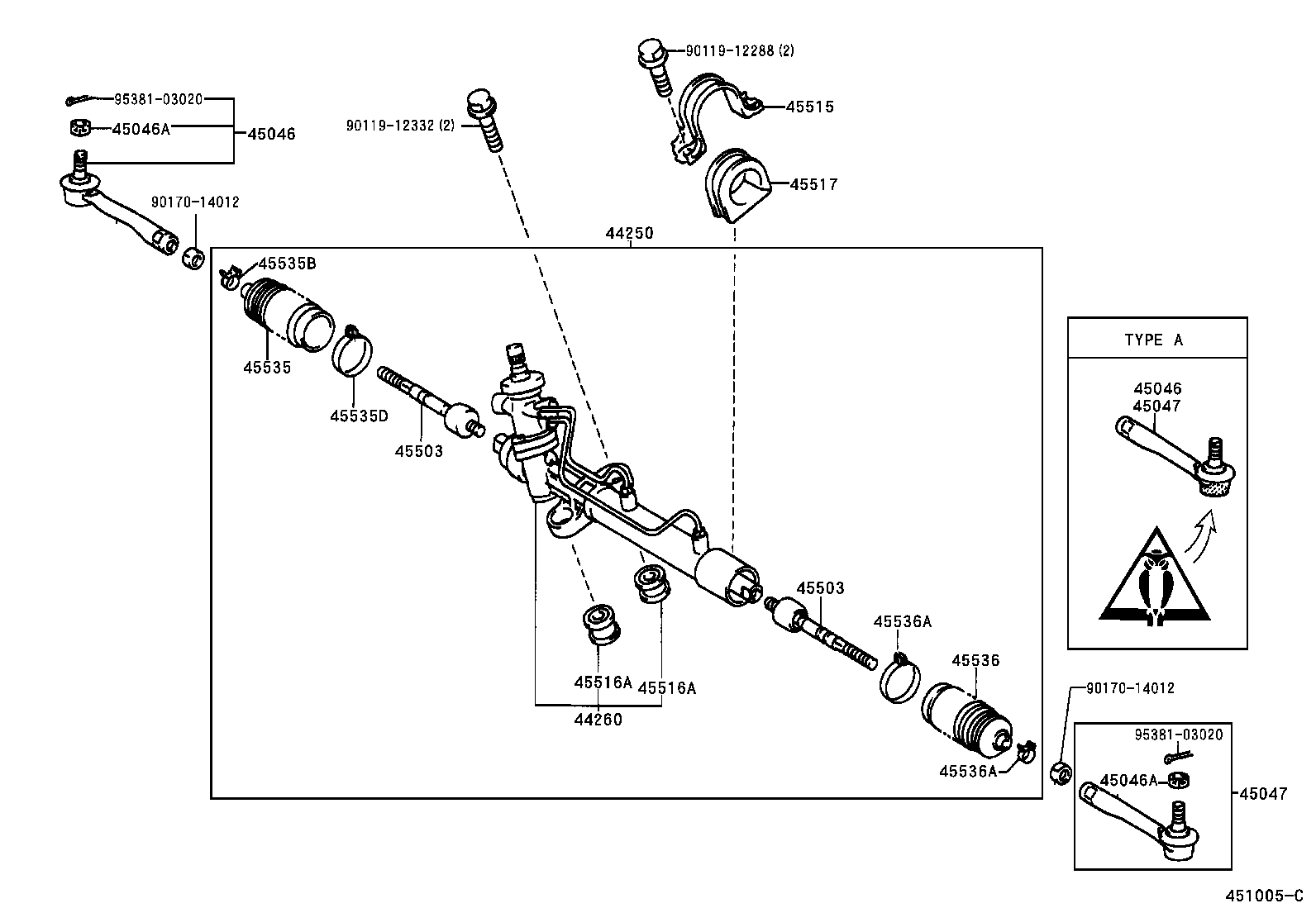

Click highlighted areas on diagram

diagram 44250 44260 45046 45046 45046A 45046A 45047 45047 45503 45503 45515 45516A 45516A 45517 45535 45535B 45535D 45536 45536A 45536A 9011912288 9011912332 9017014012 9017014012 9538103020 9538103020
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
44260 - CYLINDER ASSY, POWER STEERING POWER
44260-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-09100

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

TYPE A:REFER TO ILLUSTRATION

 1
45046-29365

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-09100

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

TYPE A:REFER TO ILLUSTRATION

 1
45046-29365

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

TYPE A:REFER TO ILLUSTRATION

 1
45047-29125

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
45047 - END SUB-ASSY, TIE ROD, LH
45047-09030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

TYPE A:REFER TO ILLUSTRATION

 1
45047-29125

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
45503 - END SUB-ASSY, STEERING RACK
45503-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-20160

AT22#,AZT220,ST220,ZZT22#..RHD

 1
45516A - BUSH, STEERING RACK HOUSING, NO.1
45516-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
45516A - BUSH, STEERING RACK HOUSING, NO.1
45516-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
45535 - BOOT, STEERING RACK, NO.1
45535-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46222

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90069-48002

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90069-48002

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90069-48002

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
90119-12288
90119-12332
90170-14012
95381-03020
