AT221R-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)AT22#..RHD

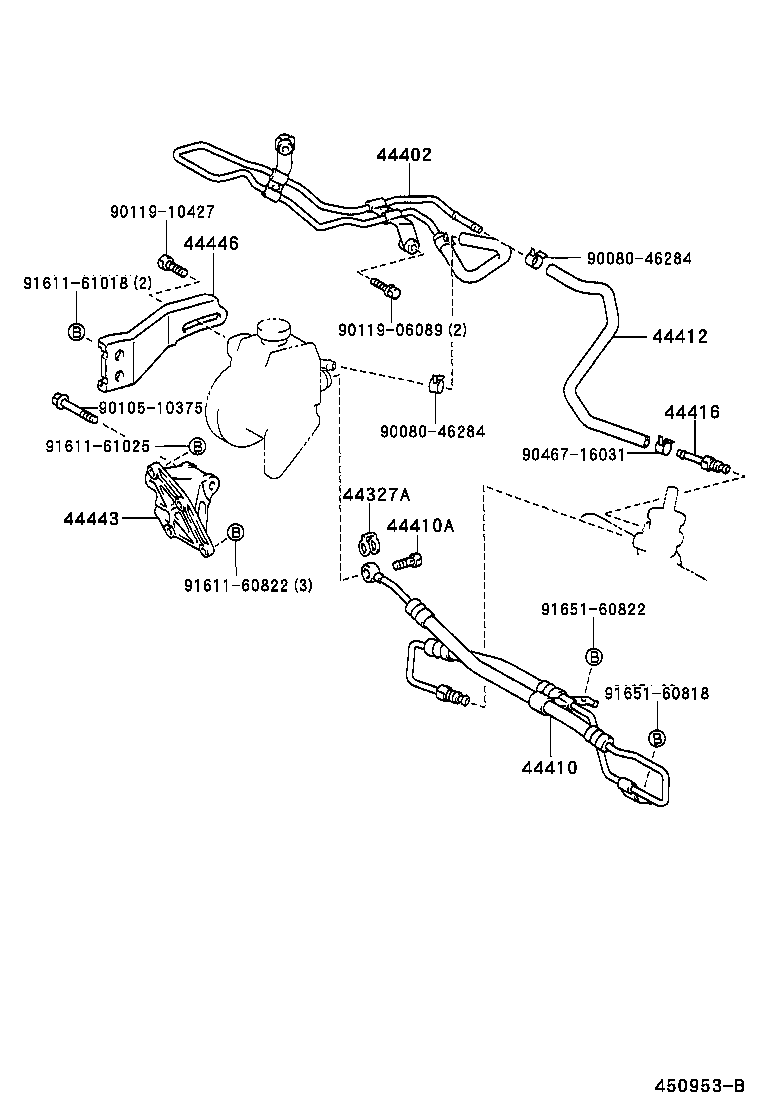

Click highlighted areas on diagram

diagram 44327A 44402 44410 44410A 44412 44416 44443 44446 9008046284 9008046284 9010510375 9011906089 9011910427 9046716031 9161160822 9161161018 9161161025 9165160818 9165160822
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

ZZT22#..LHD;AT22#,AZT220,CDT220,CT220,ST220..RHD

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-20490

AT22#..RHD

 1
44402-05010

AT22#..RHD

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-2B350

AT22#..RHD

 1
44410-05120

AT22#..RHD

 1
44410-05121

AT22#..RHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT22#,CDT220,CT220,ST220

 1
96341-41603

AT22#,AZT220,CDT220,CT220,ST220

 1
44412 - HOSE, RETURN
44412-05040

AT22#..RHD

 1
44412-20220

AT22#..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT22#,CT220,ST220..RHD

 1
44416-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
44443 - BRACKET, PUMP
44443-12100

AT22#

 1
44446 - STRUT, ADJUSTING
44446-05020

AT221

 1
Common parts
90080-46284
90105-10375
90119-06089
90119-10427
90467-16031
91611-60822
91611-61018
91611-61025
91651-60818
91651-60822
