AT221R-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)AT22#..MTM ; (0007- )ZZT22#..MTM

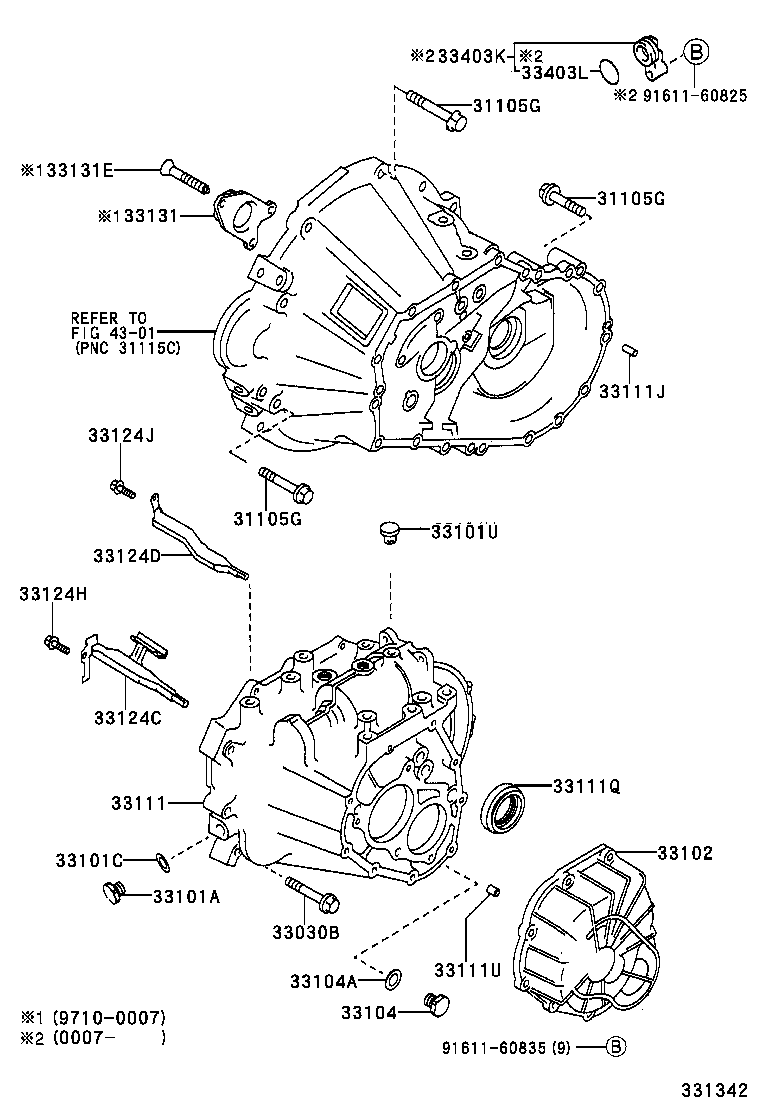

Click highlighted areas on diagram

C250,C50

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33101U 33102 33104 33104A 33111 33111J 33111Q 33111U 33124C 33124D 33124H 33124J 33131 33131E 33403K 33403L 4301 9161160825 9161160835
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT22#,CDT220,CT220,ST220..MTM

*10-1.25PX43-26

 1
90119-12042

AT22#..MTM

*12-1.25PX75-30

 1
90119-12168

AT22#..MTM

*12-1.25PX55-30

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT22#,CDT220,CT220,ST220..MTM

*10-1.25PX43-26

 1
90119-12042

AT22#..MTM

*12-1.25PX75-30

 1
90119-12168

AT22#..MTM

*12-1.25PX55-30

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT22#,CDT220,CT220,ST220..MTM

*10-1.25PX43-26

 1
90119-12042

AT22#..MTM

*12-1.25PX75-30

 1
90119-12168

AT22#..MTM

*12-1.25PX55-30

 2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08064

AT22#,ZZT22#..MTM

*8-1.25PX51-28

 13
90105-08086

AT22#,ZZT22#..MTM

*8-1.25PX45-27.5

 3
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

AT22#,AZT220,CT220,ST220,ZZT22#..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03133

AT22#,AZT220,CT220,ST220,ZZT22#..MTM

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12021

AT22#,ZZT22#..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-16062

AT22#..MTM

 1
33111-16063

AT22#..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

AT22#,CDT220,ZZT22#..MTM

L=23,OD=8

 4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34017

AT22#,ZZT220..MTM

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

AT22#,ZZT22#..MTM

L=11,OD=11

 2
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-12012

AT22#..MTM

 1
33124-20050

AT22#,ZZT22#..MTM

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021

AT22#,ZZT22#..MTM

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

AT22#,ZZT22#..MTM

 1
33124J - BOLT, W/WASHER
91611-60820

AT22#,ZZT22#..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-12080

AT22#..MTM

 1
33131E - SCREW(FOR BEARING RETAINER FRONT)
90149-60028

AT22#..MTM

 3
Common parts
91611-60825
91611-60835
Linked diagrams
4301
