AT221R-ALMNKW (1997)
Toyota Avensis
Production
Oct 1997
-
Jul 2000
Engine
7AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9710-0007)AT22#,ST220..RHD..MTM ; (0007- )AZT220,ZZT22#..RHD..MTM

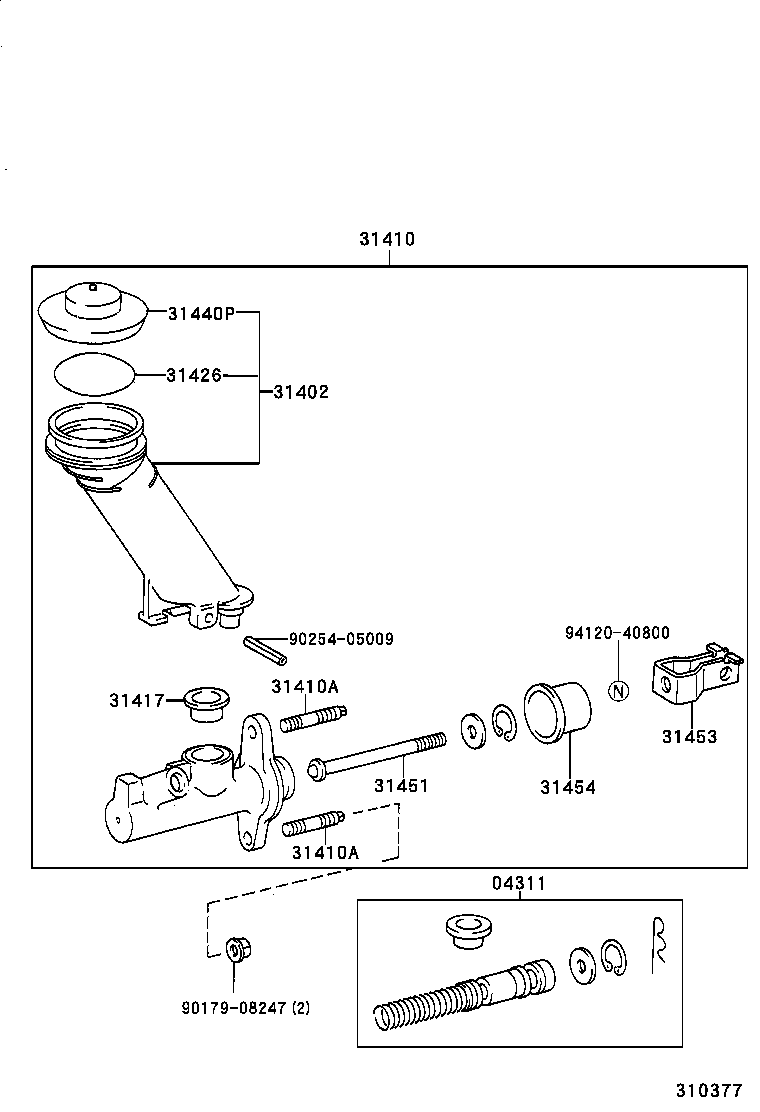

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12110 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..MTM |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-20080 |
AT22#,ST220..RHD..MTM |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-20520 |
AT22#,ST220..RHD..MTM |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 90116-08146 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM |
2 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 90116-08146 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM |
2 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..MTM |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-22020 |
AT22#,CDT220,CT220,ST220..MTM |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
CDT220..RHD;AT22#,CT220,ST220..MTM |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-35070 |
AT22#,ST220..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-10040 |
AT22#,ST220..MTM |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-16010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM |
1 | ||
| 31454-16010 |
CDT220..RHD;AT22#,CT220,ST220..MTM |
1 | ||
| Common parts | ||||
| 90179-08247 | ||||
| 90254-05009 | ||||
| 94120-40800 | ||||
