AT221R-ALMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

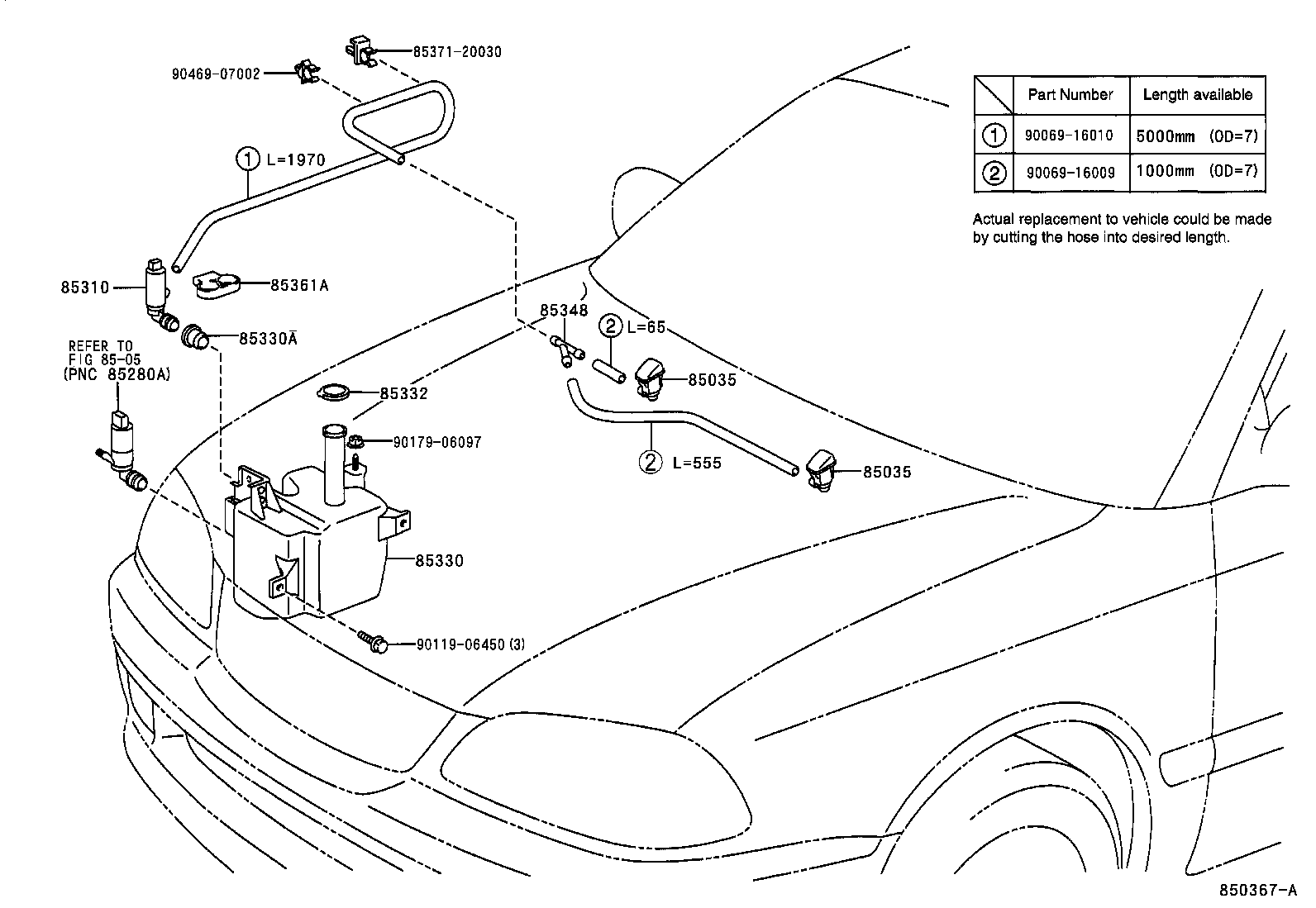

Click highlighted areas on diagram

diagram 85035 85035 8505 85310 85330 85330A 85332 85348 85361A 8537120030 9006916009 9006916010 9011906450 9017906097 9046907002
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-05080

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-05070

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-05070

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85337-05080

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
85371-20030
90069-16009
90069-16010
90119-06450
90179-06097
90469-07002
Linked diagrams
8505
