AT221R-AEPEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9710- )

Click highlighted areas on diagram

diagram 67603 67603B 67604 67627 67628 67653D 67654D 6777205020 68190 74294 9008018033 9018906018 9018906018 9359016016 9359016016
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-05770B0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW) & TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#

 1
67630-05770G0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW) & TRIM = TYPE A-*104,GREEN,TRIM6#

 1
67630-05800B0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW & SPEAKER) & TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#

 1
67630-05780G0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW & SPEAKER) & TRIM = TYPE A-*104,GREEN,TRIM6#

 1
67630-05790B0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW) & TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#

 1
67630-05780B0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW & SPEAKER) & TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90080-46230B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 13
90080-46230G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 13
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-05780B0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW & SPEAKER) & TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#

 1
67640-05770G0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW) & TRIM = TYPE A-*104,GREEN,TRIM6#

 1
67640-05800B0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW & SPEAKER) & TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#

 1
67640-05790B0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW) & TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#

 1
67640-05770B0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW) & TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#

 1
67640-05780G0

AT22#,CDT220,CT220,ST220..SOL

W(POWER WINDOW & SPEAKER) & TRIM = TYPE A-*104,GREEN,TRIM6#

 1
67627 - BRACKET, REAR DOOR TRIM, RH
67628-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67628 - BRACKET, REAR DOOR TRIM, LH
67628-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67653D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, RH
67653-05010B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
67653-05010G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
67654D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, LH
67654-05010B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
67654-05010G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68173-20130

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

(J),RH

 1
68174-20080

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

(J),LH

 1
74294 - PLATE, REAR DOOR ARMREST, NO.2
74295-05010

AT22#,CDT220,CT220,ST220

RH

 1
74296-05010

AT22#,CDT220,CT220,ST220

LH

 1
Common parts
67772-05020
90080-18033
90189-06018
93590-16016

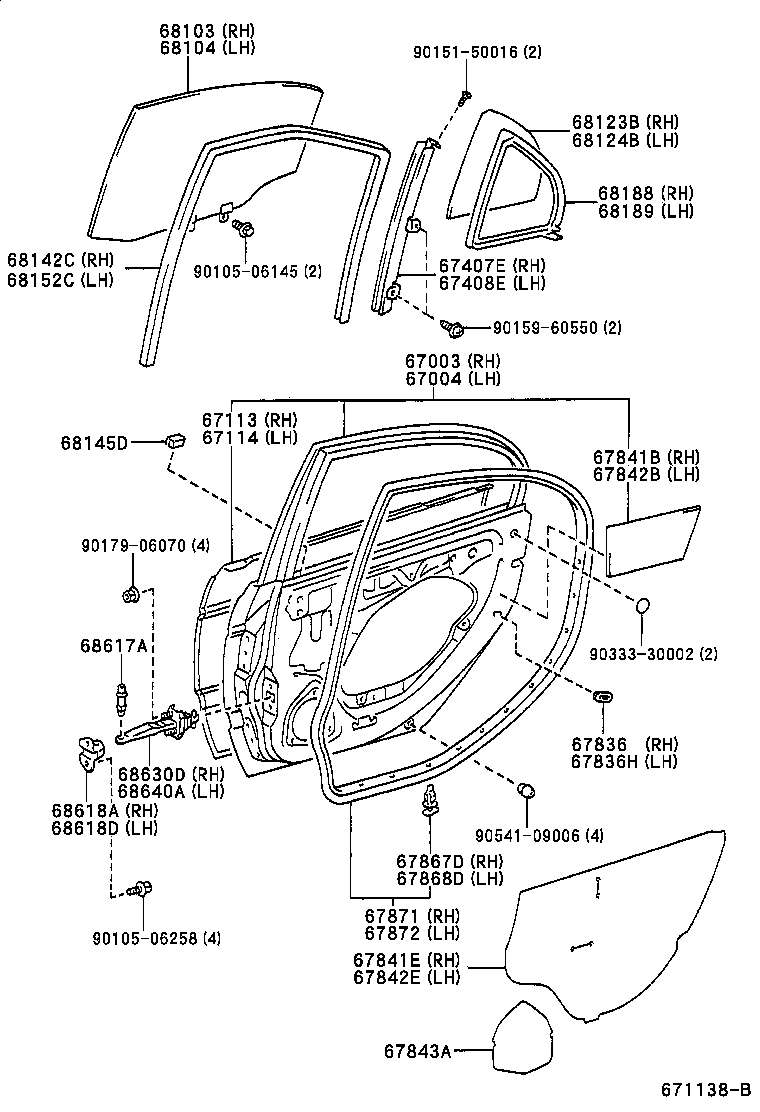

ILLUST NO. 2 OF 2(9710- )SED

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67407E 67408E 67836 67836H 67841B 67841E 67842B 67842E 67843A 67867D 67868D 67871 67872 68103 68104 68123B 68124B 68142C 68145D 68152C 68188 68189 68617A 68618A 68618D 68630D 68640A 9010506145 9010506258 9015150016 9015960550 9017906070 9033330002 9054109006
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-05050

AT22#,CDT220,CT220,ST220..SED

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-05050

AT22#,CDT220,CT220,ST220..SED

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
67841B - COVER, REAR DOOR SERVICE HOLE
67841-20370

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67805-05040

AT22#,CDT220,CT220,ST220

 1
67842B - COVER, REAR DOOR SERVICE HOLE, LOWER
67842-20260

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67805-05040

AT22#,CDT220,CT220,ST220

 1
67843A - COVER, REAR DOOR SERVICE HOLE, NO.2
67843-05020

AT22#,CDT220,CT220,ST220

 2
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 17
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 17
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-05070

AT22#,CT220,ST220..SED..SOL

*TEM,T=3.1,DK.GREEN

 1
68103-05070

AT22#,CDT220,CT220,ST220..SED..(DCR,EFI,TDEFI)

*TEM,T=3.1,DK.GREEN

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-05070

AT22#,CDT220,CT220,ST220..SED..(DCR,EFI,TDEFI)

*TEM,T=3.1,DK.GREEN

 1
68104-05070

AT22#,CT220,ST220..SED..SOL

*TEM,T=3.1,DK.GREEN

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-05040

AT22#,CT220,ST220..SED..SOL

*TEM,T=3.1,DK.GREEN

 1
68123-05040

AT22#,CDT220,CT220,ST220..SED..(DCR,EFI,TDEFI)

*TEM,T=3.1,DK.GREEN

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-05040

AT22#,CDT220,CT220,ST220..SED..(DCR,EFI,TDEFI)

*TEM,T=3.1,DK.GREEN

 1
68124-05040

AT22#,CT220,ST220..SED..SOL

*TEM,T=3.1,DK.GREEN

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
68145D - CUSHION, REAR DOOR WINDOW
68145-05020

AT22#,CT220,ST220

 2
68145-20050

AT22#,CDT220,CT220,ST220..SED

 2
68152C - RUN, REAR DOOR GLASS, LH
68152-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
68617A - PIN, REAR DOOR CHECK
68617-20011

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
68618A - BRACKET, REAR DOOR CHECK ARM, LH
68618-20020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
68618D - BRACKET, REAR DOOR CHECK ARM, RH
68618-20020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-05031

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
68630-05030

AT22#,CDT220,CT220,ST220

 1
68640A - CHECK ASSY, REAR DOOR, LH
68630-05030

AT22#,CDT220,CT220,ST220

 1
68630-05031

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
90105-06145
90105-06258
90151-50016
90159-60550
90179-06070
90333-30002
90541-09006
