AT221R-AEMEKW (1997)
Toyota Avensis
Production
Oct 1997
-
Jul 2000
Engine
7AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9710- )

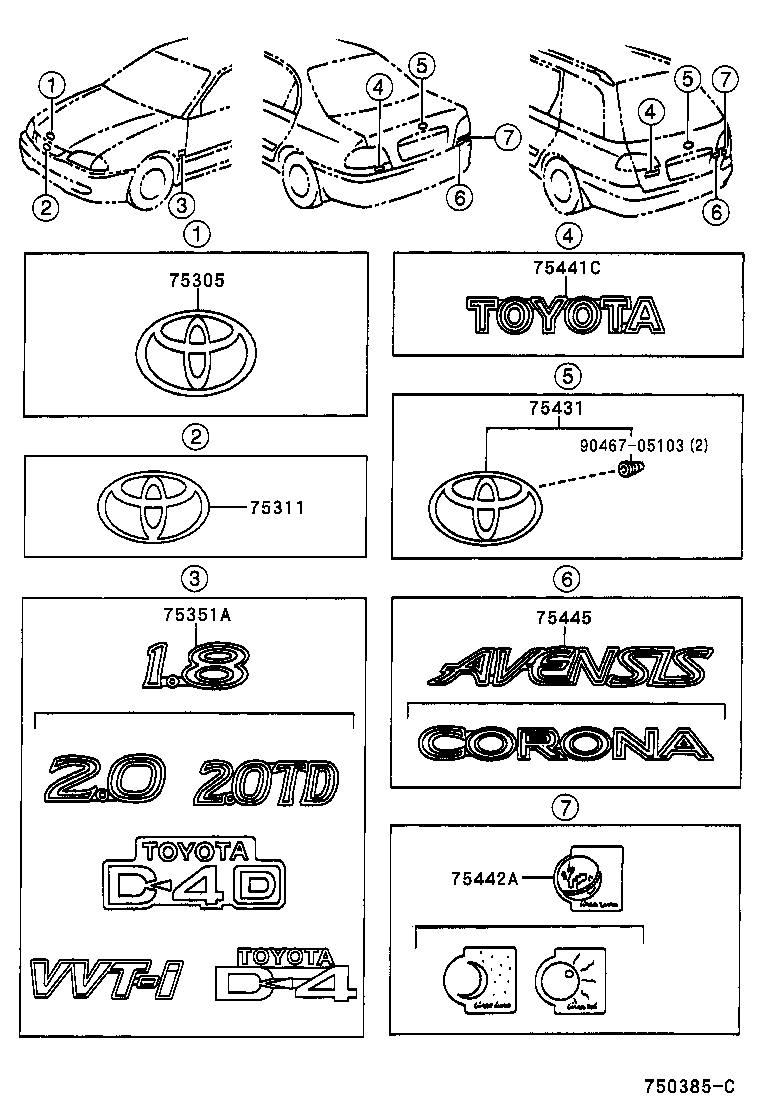

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75305 - EMBLEM, HOOD | ||||
| 75331-05010 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 75351A - EMBLEM, FRONT FENDER | ||||
| 75351-05010 |
AT221 RH |
1 | ||
| 75351-05020 |
AT221 LH |
1 | ||
| 75431 - EMBLEM, LUGGAGE COMPARTMENT DOOR | ||||
| 75431-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED |
1 | ||
| 75441C - PLATE, BACK DOOR NAME | ||||
| 75441-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED TOYOTA |
1 | ||
| 75442A - PLATE, BACK DOOR NAME, NO.2 | ||||
| 75442-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED..SOL LINEA SOL |
1 | ||
| 75445 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5 | ||||
| 75445-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED AVENSIS |
1 | ||
| Common parts | ||||
| 90467-05103 | ||||
