AT221L-AWPNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

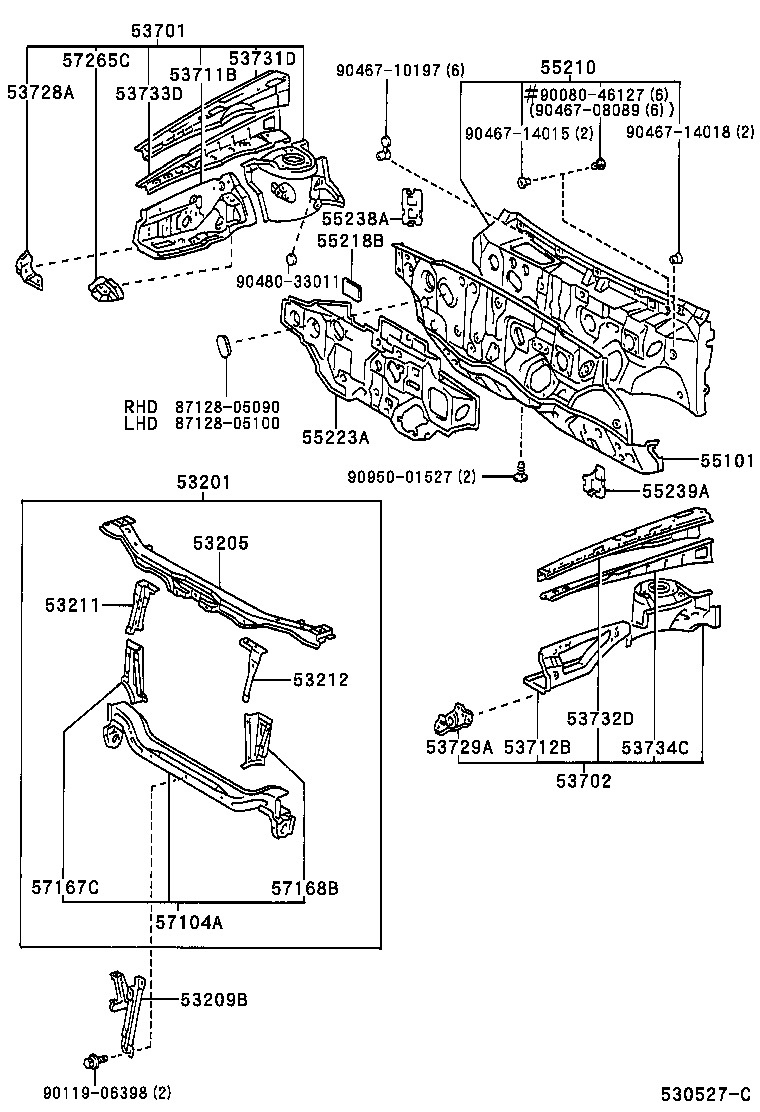

Click highlighted areas on diagram

diagram 53201 53205 53209B 53211 53212 53701 53702 53711B 53712B 53728A 53729A 53731D 53732D 53733D 53734C 55101 55210 55218B 55223A 55238A 55239A 57104A 57167C 57168B 57265C 8712805090 8712805100 9008046127 9011906398 9046708089 9046710197 9046714015 9046714018 9048033011 9095001527
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-05010

AT22#,CDT220,CT220,ST220

 1
53211 - SUPPORT, RADIATOR, RH
53211-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53212 - SUPPORT, RADIATOR, LH
53212-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53728A - BRACKET, FENDER APRON, RH
53728-20120

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53729A - BRACKET, FENDER APRON, LH
53729-20010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
55101 - PANEL SUB-ASSY, DASH
55101-05210

AT221,ST220..LHD..ATM

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-05080

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
55218B - SEAL, DASH PANEL INSULATOR
55218-20090

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
55238A - PLATE, DASH PANEL INSULATOR, NO.2
55238-20030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
55239A - PLATE, DASH PANEL INSULATOR, NO.3
55239-20060

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH
57168-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
57265C - BRACKET, ENGINE MOUNTING, RH
57265-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
87128-05090
87128-05100
90080-46127
90119-06398
90467-08089
90467-10197
90467-14015
90467-14018
90480-33011
90950-01527
