AT221L-AWPNKW (1997)
Toyota Avensis

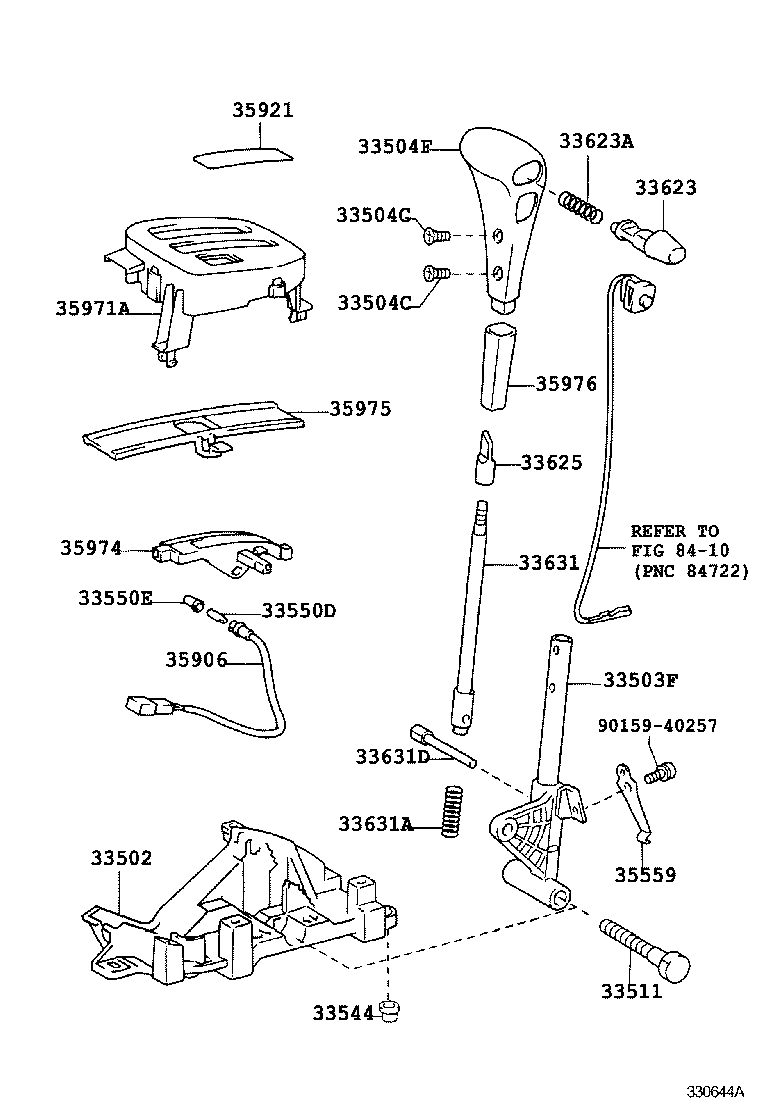

ILLUST NO. 1 OF 2(9710-0007)LHD..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-42010 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-20190 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-12230C0 |
AT221,AZT220,ST220,ZZT221..LHD..ATM BLACK,TRIM1#,6# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-12120 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-33010 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11040 |
AT221,AZT220,ST220,ZZT221..LHD..ATM 12V 2W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-42010C0 |
AT221,ST220..LHD..ATM BLACK,TRIM1#,6# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07037 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-12030 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-33020 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07101 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04008 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 35559 - SPRING, MANUAL DETENT | ||||
| 35559-12040 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-32040 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-20370 |
AT221,ST220..LHD..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-20320 |
AT221,ST220..LHD..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-20200 |
AT221,ST220..LHD..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-20170 |
AT221,AZT220,ST220,ZZT221..LHD..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-12080C0 |
AT221,ST220..LHD..ATM BLACK,TRIM1#,6# |
1 | ||
| Common parts | ||||
| 90159-40257 | ||||
| Linked diagrams | ||||
| 8410 | ||||

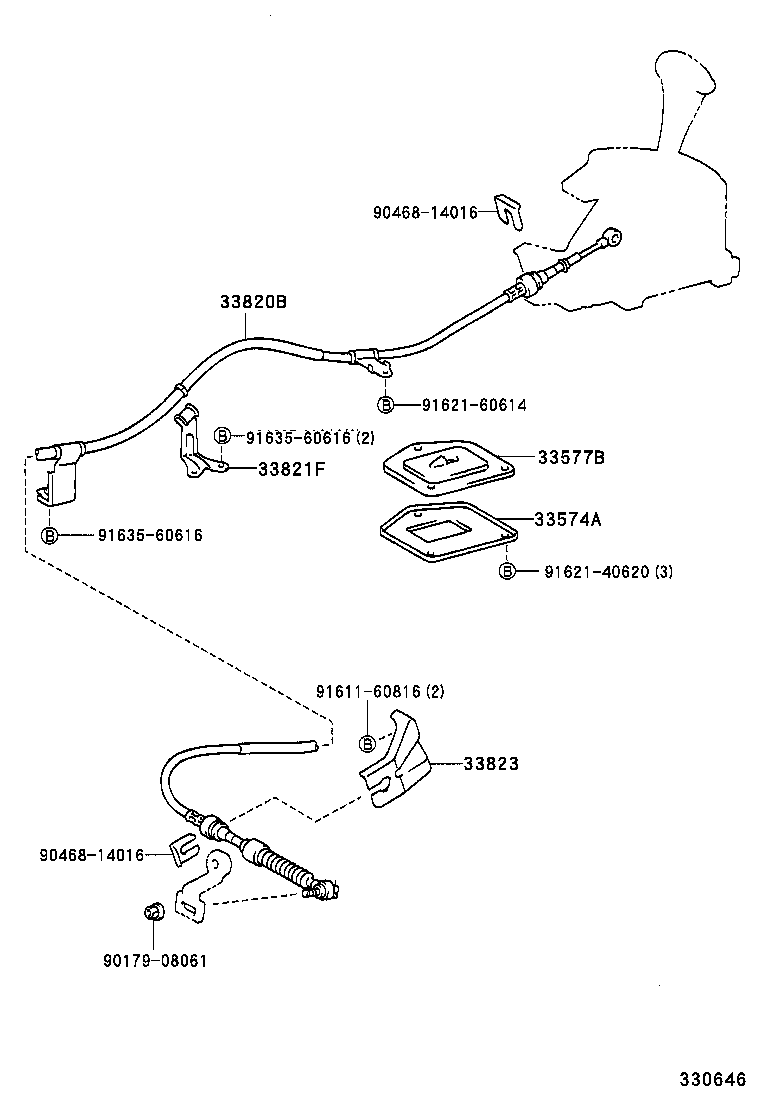

ILLUST NO. 2 OF 2(9710-0007)AT221..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 33577B - COVER, CONTROL SHAFT HOLE | ||||
| 33577-05020 |
AT221,AZT220,ST220,ZZT221..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-05110 |
AT221..ATM |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01A21 |
AT221,ST220..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-20150 |
AT221..ATM |
1 | ||
| Common parts | ||||
| 90179-08061 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| 91621-40620 | ||||
| 91621-60614 | ||||
| 91635-60616 | ||||
