AT221L-AWPEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)AT221..ATM

Click highlighted areas on diagram

A245E

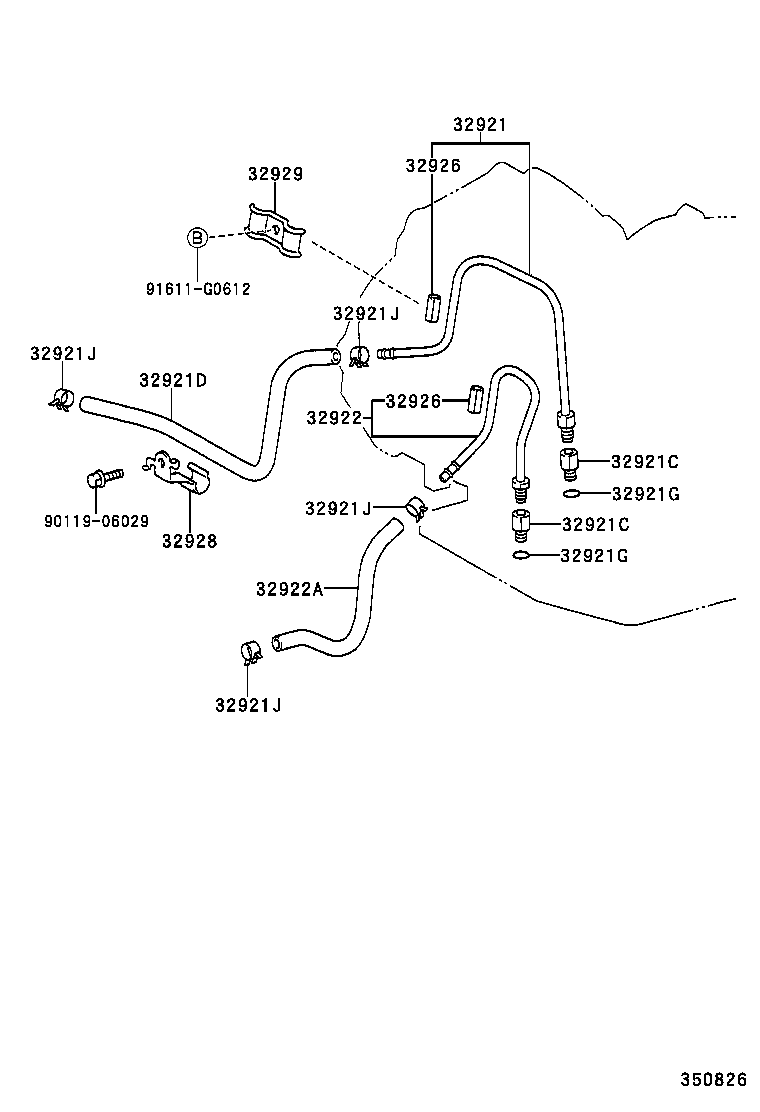

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32926 32926 32928 32929 9011906029 91611G0612
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-05030

AT221..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

AT221,ZZT221..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

AT221,ZZT221..ATM

 2
32921D - HOSE(FOR OIL COOLER INLET)
32943-20091

AT221..ATM

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

AT221,ZZT221..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

AT221,ZZT221..ATM

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-05030

AT221..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17106

AT221,ST220..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-05010

AT221,ST220..ATM

L=25,ID=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-05010

AT221,ST220..ATM

L=25,ID=10

 2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-20120

AT221..ATM

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
90462-12074

AT221,ZZT221..ATM

 1
Common parts
90119-06029
91611-G0612

(9710-0007)AT221..ATM

Click highlighted areas on diagram

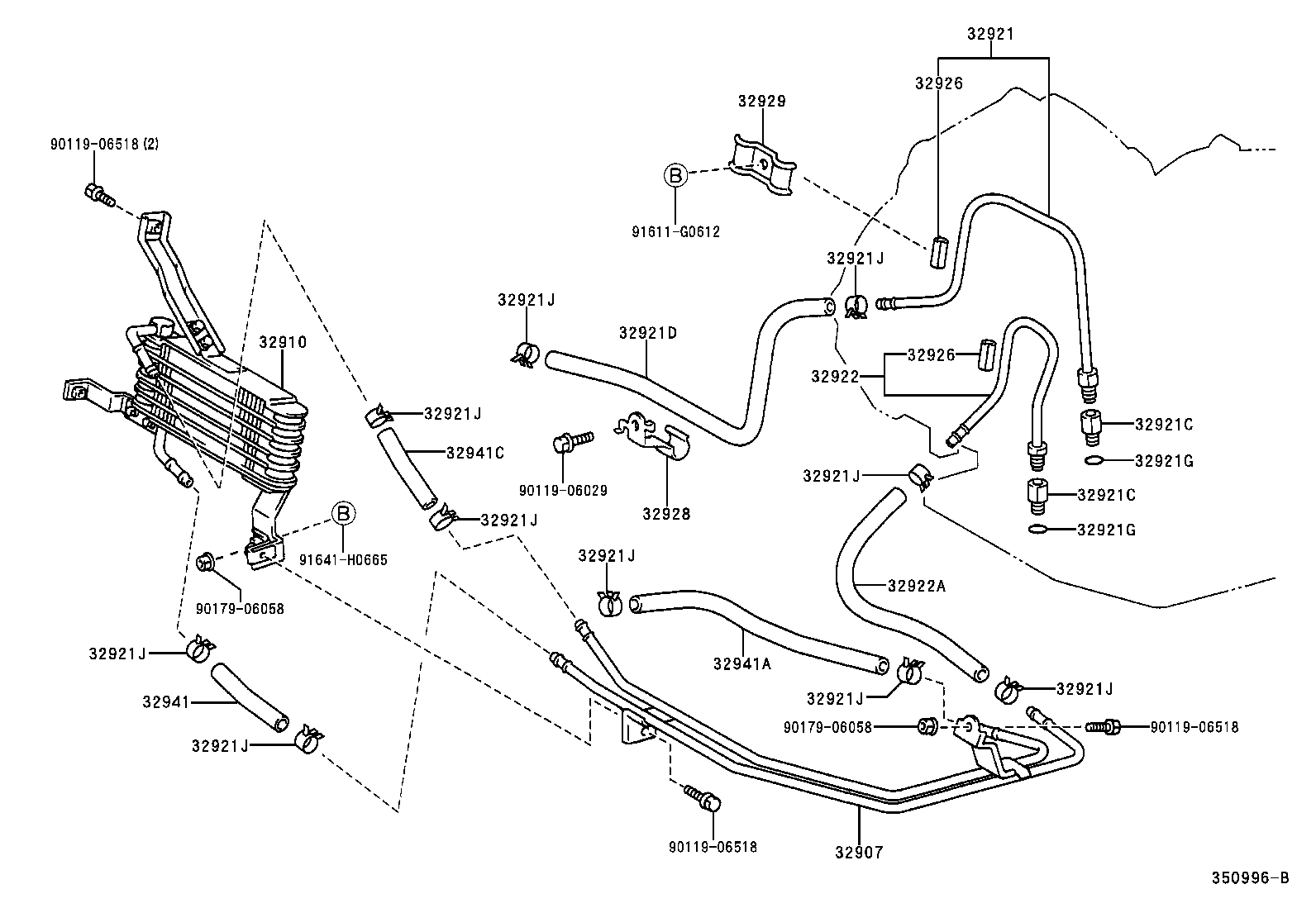

A245E,AIR COOLING OIL COOLER

diagram 32907 32910 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32922 32922A 32926 32926 32928 32929 32941 32941A 32941C 9011906029 9011906518 9011906518 9011906518 9017906058 9017906058 91611G0612 91641H0665
Part # Description Qty Price
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-20030

AT221..ATM

 1
32910 - COOLER ASSY, OIL
32910-20050

AT221..ATM

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-05030

AT221..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

AT221,ZZT221..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

AT221,ZZT221..ATM

 2
32921D - HOSE(FOR OIL COOLER INLET)
32943-20091

AT221..ATM

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

AT221,ZZT221..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

AT221,ZZT221..ATM

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT221..ATM

 12
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-05030

AT221..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17106

AT221,ST220..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-05010

AT221,ST220..ATM

L=25,ID=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-05010

AT221,ST220..ATM

L=25,ID=10

 2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-20120

AT221..ATM

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
90462-12074

AT221,ZZT221..ATM

 1
32941 - HOSE, OIL COOLER INLET, NO.1
90445-17093

AT221..ATM

 1
32941A - HOSE, OIL COOLER INLET, NO.2
90445-17126

AT221..ATM

 1
32941C - HOSE(OIL COOLER)
90445-17151

AT221..ATM

 1
Common parts
90119-06029
90119-06518
90179-06058
91611-G0612
91641-H0665
