AT221L-AWPEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)4AFE,7AFE

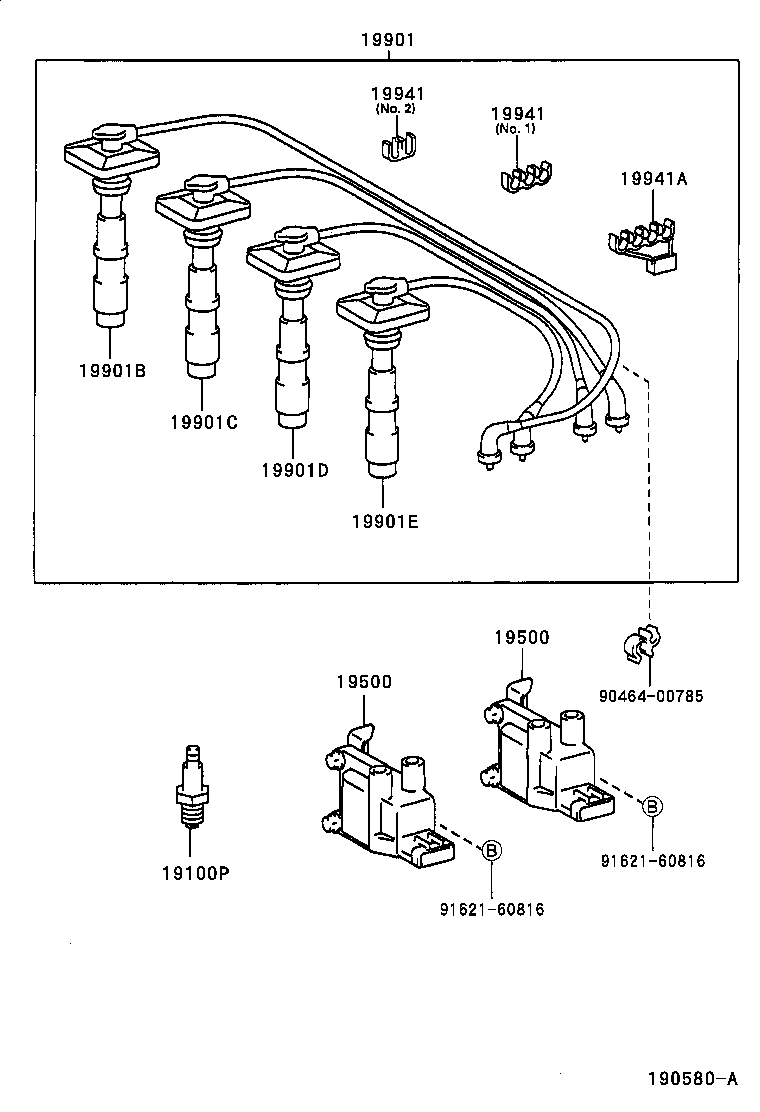

Click highlighted areas on diagram

LEAN BURN

diagram 19100P 19500 19500 19901 19901B 19901C 19901D 19901E 19941 19941 19941A 9046400785 9162160816 9162160816
Part # Description Qty Price
19100P - PLUG, SPARK
90080-91159

7AFE..AT221;4AFE..AT220..RHD

 4
90919-01212

7AFE..AT221;4AFE..AT220..RHD

SK20R-P13

 4
19500 - COIL ASSY, IGNITION
19500-16030

7AFE..AT221;4AFE..AT220..RHD

 2
19500 - COIL ASSY, IGNITION
19500-16030

7AFE..AT221;4AFE..AT220..RHD

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90080-91127

7AFE..AT221;4AFE..AT220..RHD

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90080-91132

7AFE..AT221;4AFE..AT220..RHD

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90080-91131

7AFE..AT221;4AFE..AT220..RHD

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90080-91130

7AFE..AT221;4AFE..AT220..RHD

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90080-91129

7AFE..AT221;4AFE..AT220..RHD

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90080-46176

4AFE,7AFE..AT22#

NO.1

 1
90080-46187

4AFE,7AFE..AT22#

NO.2

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90080-46176

4AFE,7AFE..AT22#

NO.1

 1
90080-46187

4AFE,7AFE..AT22#

NO.2

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90080-46175

4AFE,7AFE..AT22#

 1
Common parts
90464-00785
91621-60816
