AT221L-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

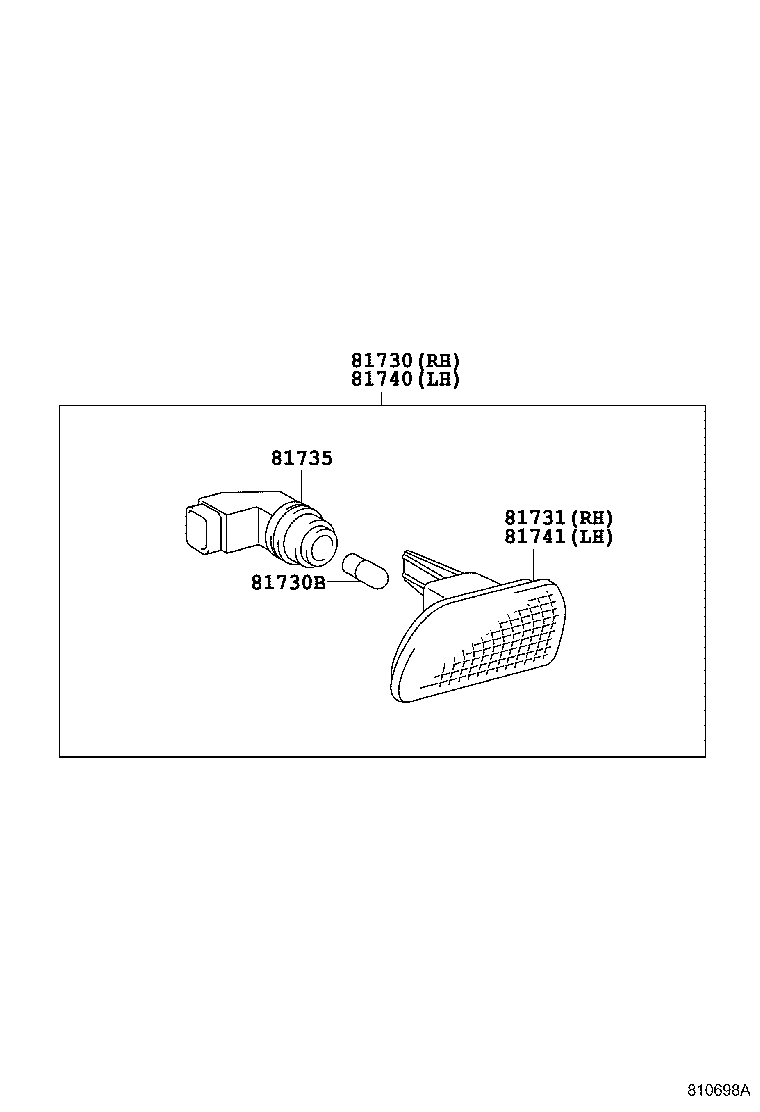

Click highlighted areas on diagram

diagram 81730 81730B 81731 81735 81740 81741
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-05020

AT22#,CDT220,CT220,ST220

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
90080-81030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-05020

AT22#,CDT220,CT220,ST220

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
81275-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-05010

AT22#,CDT220,CT220,ST220

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-05010

AT22#,CDT220,CT220,ST220

 1
