AT221L-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

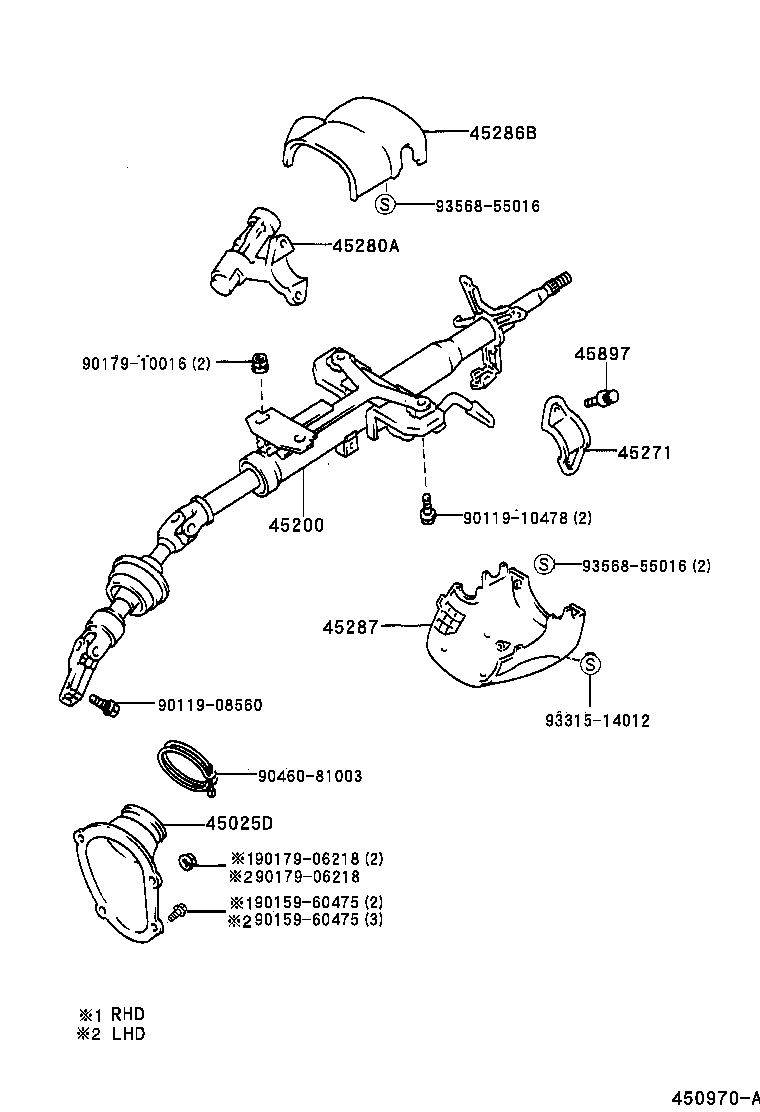

Click highlighted areas on diagram

diagram 45025D 45200 45271 45280A 45286B 45287 45897 9011908560 9011910478 9015960475 9015960475 9017906218 9017906218 9017910016 9046081003 9331514012 9356855016 9356855016
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
45200 - POST ASSY, STEERING
45200-05120

AT22#,CDT220,CT220,ST220..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-05030

AT22#,CT220,ST220

 1
45280-05050

AT22#,CDT220,CT220,ST220

 1
45286B - COVER, STEERING COLUMN, UPR
45286-05050C0

AT22#,CDT220,CT220,ST220

BLACK,TRIM1#,6#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-05110C0

AT22#,CDT220,CT220,ST220

BLACK,TRIM1#,6#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
Common parts
90119-08560
90119-10478
90159-60475
90179-06218
90179-10016
90460-81003
93315-14012
93568-55016
