AT221L-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)4AFE,7AFE

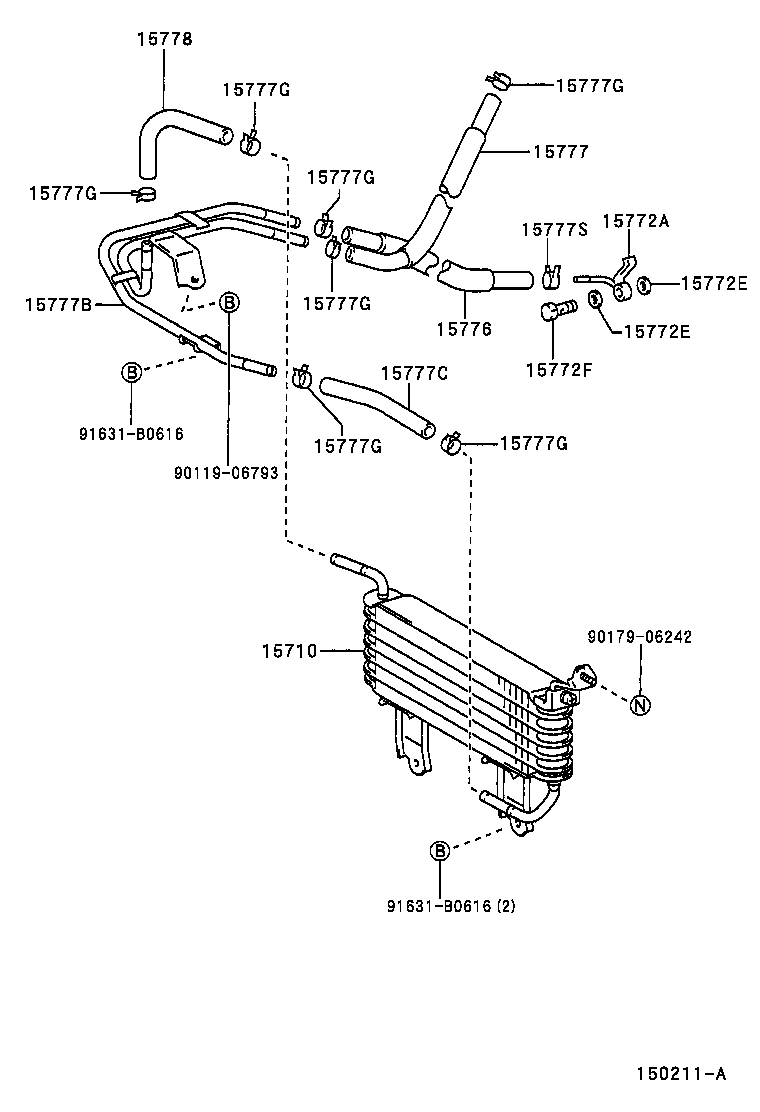

Click highlighted areas on diagram

diagram 15710 15772A 15772E 15772E 15772F 15776 15777 15777B 15777C 15777G 15777G 15777G 15777G 15777G 15777G 15777G 15777S 15778 9011906793 9017906242 91631B0616 91631B0616
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15700-02060

4AFE,7AFE..AT22#

 1
15772A - UNION(FOR OIL PIPE)
90080-40017

7AFE..AT221

 1
90405-10043

7AFE..AT221

 1
15772E - GASKET(FOR OIL PIPE)
90430-12031

4AFE,7AFE..AT22#

 2
15772E - GASKET(FOR OIL PIPE)
90430-12031

4AFE,7AFE..AT22#

 2
15772F - BOLT, UNION(FOR OIL PIPE)
90401-12009

4AFE,7AFE..AT22#

 1
15776 - HOSE, OIL COOLER, NO.4
15777-02030

4AFE,7AFE..AT22#

 1
15777 - HOSE, OIL COOLER
15777-02030

4AFE,7AFE..AT22#

 1
15777B - PIPE, OIL COOLER
15767-02030

4AFE,7AFE..AT22#

 1
15777C - HOSE, OIL COOLER
15779-02030

4AFE,7AFE..AT22#

 1
15777G - CLAMP OR CRIP, HOSE
90467-15025

4AFE,7AFE..AT22#

 7
15777G - CLAMP OR CRIP, HOSE
90467-15025

4AFE,7AFE..AT22#

 7
15777G - CLAMP OR CRIP, HOSE
90467-15025

4AFE,7AFE..AT22#

 7
15777G - CLAMP OR CRIP, HOSE
90467-15025

4AFE,7AFE..AT22#

 7
15777G - CLAMP OR CRIP, HOSE
90467-15025

4AFE,7AFE..AT22#

 7
15777G - CLAMP OR CRIP, HOSE
90467-15025

4AFE,7AFE..AT22#

 7
15777G - CLAMP OR CRIP, HOSE
90467-15025

4AFE,7AFE..AT22#

 7
15777S - CLAMP OR CLIP, HOSE
90467-15025

4AFE,7AFE..AT22#

 1
15778 - HOSE, OIL COOLER, NO.2
15778-02030

4AFE,7AFE..AT22#

 1
Common parts
90119-06793
90179-06242
91631-B0616
