AT221L-AWMEKW (1997)
Toyota Avensis
Production
Oct 1997
-
Jul 2000
Engine
7AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9710-0007)4AFE,7AFE

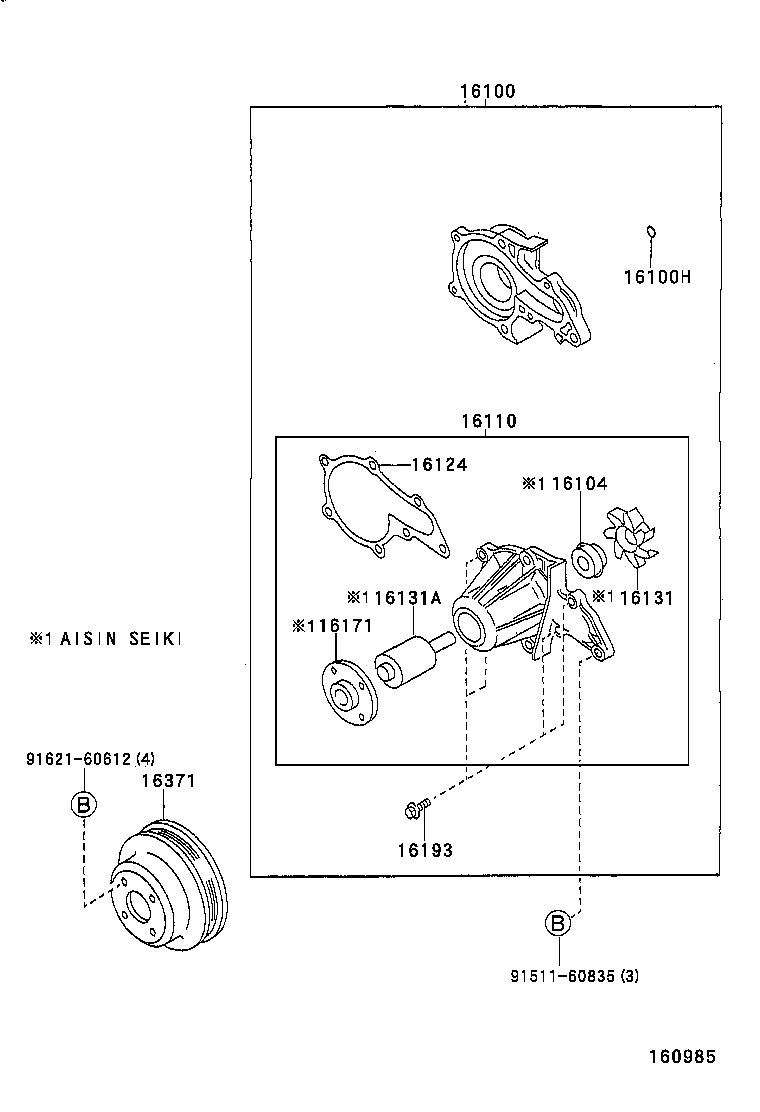

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-09061 |
7AFE..AT221 SEM |
1 | ||
| 16100-19305 |
7AFE..AT221 AISIN SEIKI |
1 | ||
| 16100-09060 |
7AFE..AT221 |
1 | ||
| 16100H - RING, O(FOR WATER PUMP) | ||||
| 96761-24035 |
4AFE,7AFE..AT22# |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-46060 |
7AFE..AT221 AISIN SEIKI |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-19185 |
7AFE..AT221 AISIN SEIKI |
1 | ||
| 16110-09031 |
7AFE..AT221 SEM |
1 | ||
| 16110-09030 |
7AFE..AT221 |
1 | ||
| 16110-09031 |
7AFE..AT221 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-02010 |
4AFE,7AFE..AT22# |
1 | ||
| 16124-15110 |
7AFE..AT221 AISIN SEIKI |
1 | ||
| 16124-02010 |
7AFE..AT221 SEM |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-16090 |
7AFE..AT221 AISIN SEIKI |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90029-36846 |
7AFE..AT221 AISIN SEIKI |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-10012 |
7AFE..AT221 AISIN SEIKI |
1 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-02020 |
4AFE,7AFE..AT22# |
4 | ||
| 16193-02020 |
7AFE..AT221 SEM |
4 | ||
| 16193-15011 |
7AFE..AT221 AISIN SEIKI |
4 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-02030 |
4AFE,7AFE..AT22# |
1 | ||
| Common parts | ||||
| 91511-60835 | ||||
| 91621-60612 | ||||
