AT221L-ALPEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)4AFE,7AFE

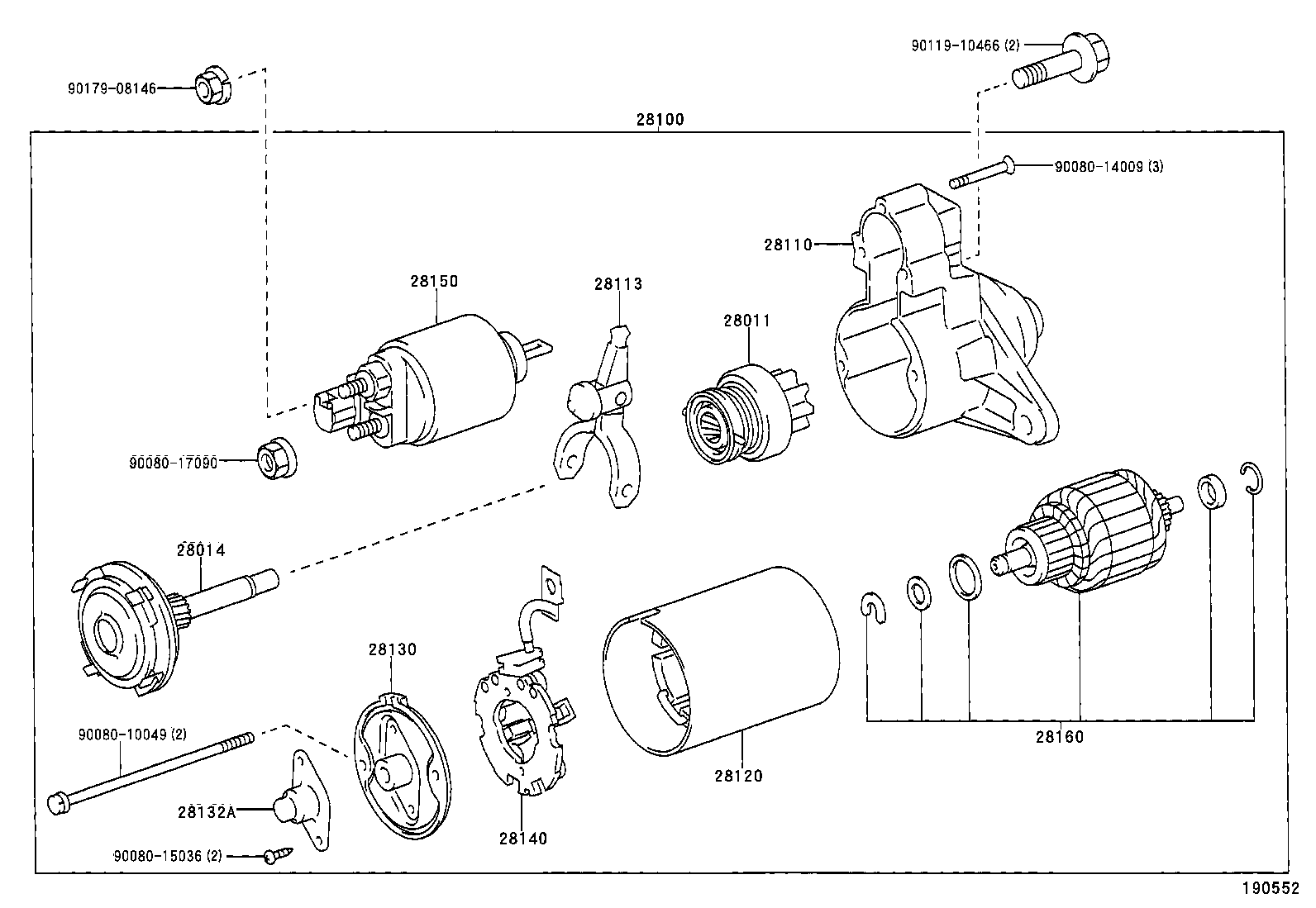

Click highlighted areas on diagram

12V 1.1W

diagram 28011 28014 28100 28110 28113 28120 28130 28132A 28140 28150 28160 9008010049 9008014009 9008015036 9008017090 9011910466 9017908146
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-02010

4AFE,7AFE..AT22#

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-0D030

4AFE,7AFE..AT22#

 1
28014-02080

4AFE,7AFE..AT22#

 1
28100 - STARTER ASSY
28100-02080

4AFE,7AFE..AT22#

12V 1.1KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-02080

4AFE,7AFE..AT22#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-02010

4AFE,7AFE,1CDFTV,2CT#..AT22#,CDT220,CT220

 1
28120 - YOKE ASSY, STARTER
28120-02020

4AFE,7AFE..AT22#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-02050

4AFE,7AFE..AT22#

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-04010

4AFE,7AFE,1CDFTV,2CT#..AT22#,CDT220,CT220

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-02020

4AFE,7AFE..AT22#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-02080

4AFE,7AFE..AT22#

 1
28160 - ARMATURE ASSY, STARTER
28160-02080

4AFE,7AFE..AT22#

 1
Common parts
90080-10049
90080-14009
90080-15036
90080-17090
90119-10466
90179-08146
