AT221L-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

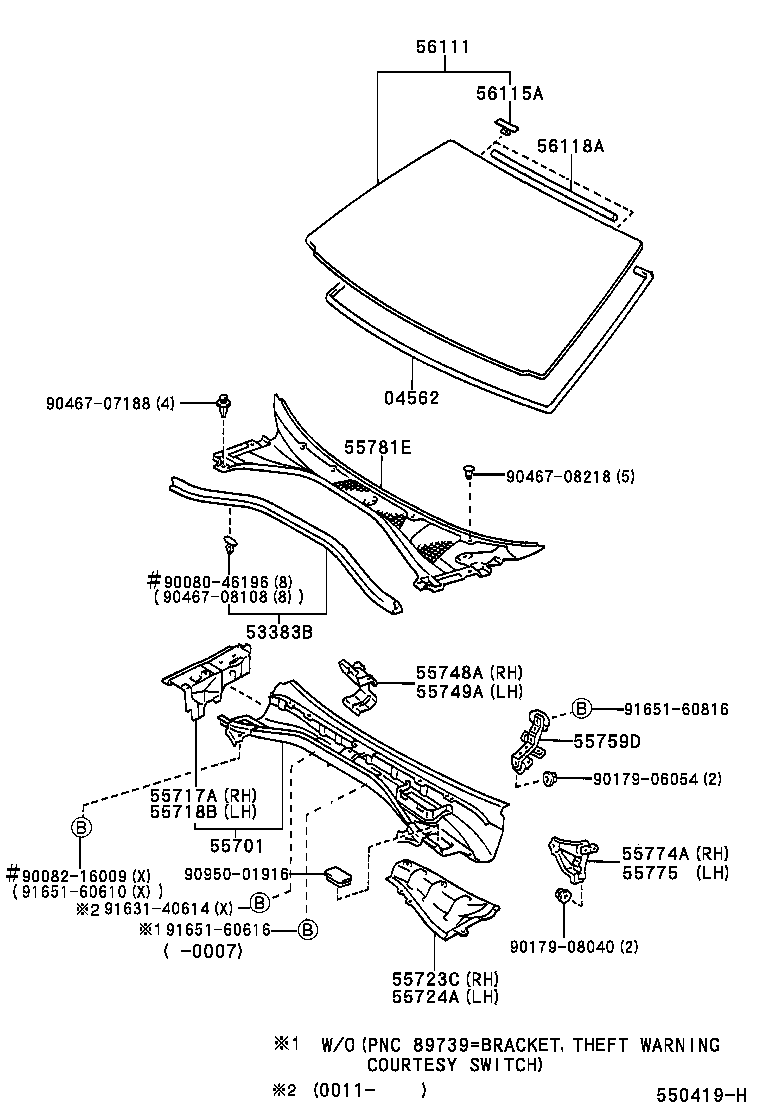

Click highlighted areas on diagram

diagram 04562 53383B 55701 55717A 55718B 55723C 55724A 55748A 55749A 55759D 55774A 55775 55781E 56111 56115A 56118A 9008046196 9008216009 9017906054 9017908040 9046707188 9046708108 9046708218 9095001916 9163140614 9165160610 9165160616 9165160816
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
56117-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53383B - SEAL, HOOD TO COWL TOP
53383-05020

AT22#,CT220,ST220

 1
53383-05021

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
55701 - PANEL SUB-ASSY, COWL
55700-05904

AT22#,ST220..LHD..MTM

 1
55700-05160

AT22#,ST220..LHD..MTM

 1
55717A - PANEL, COWL TOP SIDE, INNER RH
55717-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
55718B - PANEL, COWL TOP SIDE, INNER LH
55718-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
55723C - REINFORCEMENT, COWL TOP SIDE, RH
55723-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
55748A - BRACE, COWL TOP INNER TO PILLAR
55748-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
55749A - BRACE, COWL TOP INNER TO PILLAR, LH
55749-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
55759D - BRACKET, COWL TOP INNER STAY MOUNTING
55759-05010

AT22#,CDT220,CT220,ST220

 1
55774A - BRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55774-05010

AT22#,CT220,ST220..LHD

 1
55774-05011

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-05071

AT22#,CDT220,CT220,ST220..LHD..(DCR,EFI,TDEFI)

 1
55708-05060

AT22#,CT220..LHD..TERRA..(EFI,TDEFI)

NORWAY OR SWEDEN OR AUSTRIA OR ICELAND OR DENMARK OR FINLAND SPEC

 1
55708-05070

AT22#,CT220,ST220..LHD..(EFI,TDEFI)

 1
55708-05061

AT22#,CDT220,CT220,ST220..LHD

NORWAY OR ICELAND OR DENMARK OR FINLAND SPEC

 1
56111 - GLASS, WINDSHIELD
56101-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

*LAM,T=4.96,GREEN,W(FRONT DEFOGGER & REAR DEFOGGER)

 1
56101-05030

AT221,ST220..RHD;AT221..LHD..TERRA;AT220,CDT220,CT220..TERRA

*LAM,T=4.96,GREEN

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-33020

AT22#,CT220,ST220

 2
56115-20090

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
90080-46196
90082-16009
90179-06054
90179-08040
90467-07188
90467-08108
90467-08218
90950-01916
91631-40614
91651-60610
91651-60616
91651-60816
