AT221L-ALMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

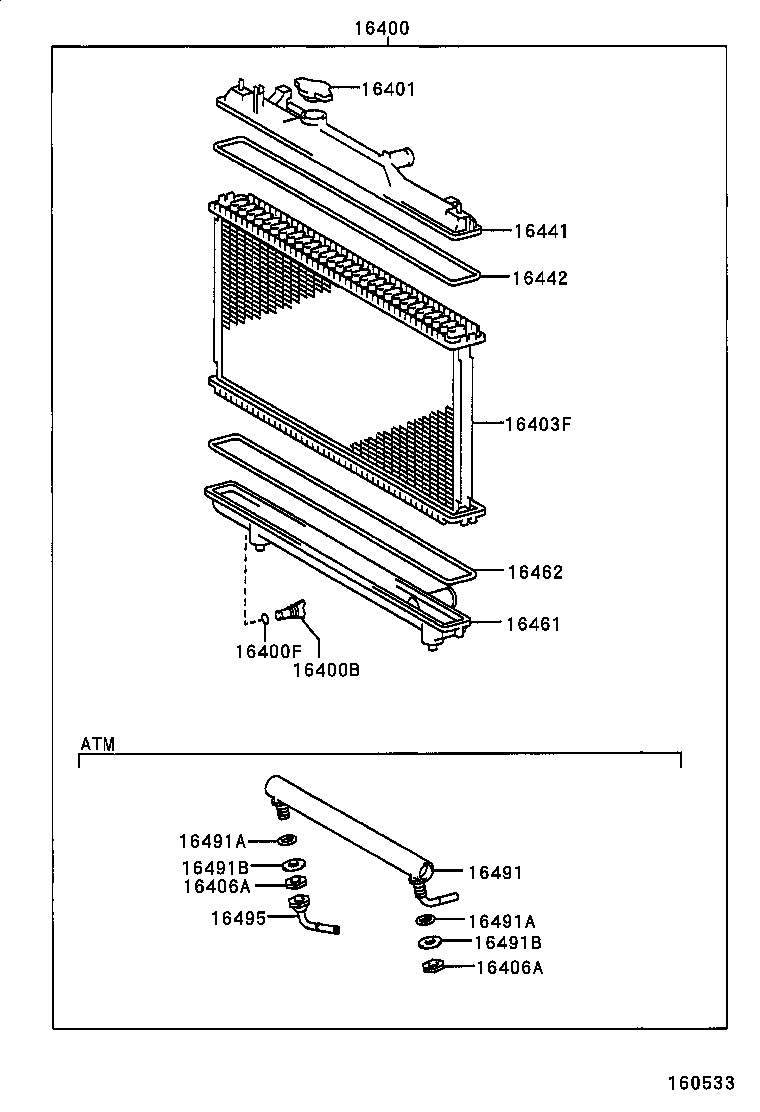

ILLUST NO. 2 OF 2(9710- )1AZFSE,4AFE,7AFE

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16406A 16406A 16441 16442 16461 16462 16491 16491A 16491A 16491B 16491B 16495
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-02270

4AFE..AT220..LHD;7AFE..AT221..MTM

MARK 0227

 1
16400B - PLUG, RADIATOR DRAIN COCK
90080-34010

1AZFSE,4AFE,7AFE..AT22#,AZT220

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
90080-30024

4AFE,7AFE..AT22#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-72090

1AZFSE,4AFE,7AFE..AT22#,AZT220

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-03180

4AFE..AT220..LHD;7AFE..AT221..MTM

MARK 0227

 1
16441 - TANK, RADIATOR, UPPER
16441-03180

4AFE,7AFE..AT22#

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-02030

4AFE,7AFE..AT22#;1AZFSE..AZT220..MTM

 1
16461 - TANK, RADIATOR, LOWER
16461-02080

4AFE,7AFE..AT22#..MTM

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-02040

4AFE,7AFE..AT22#;1AZFSE..AZT220..MTM

 1

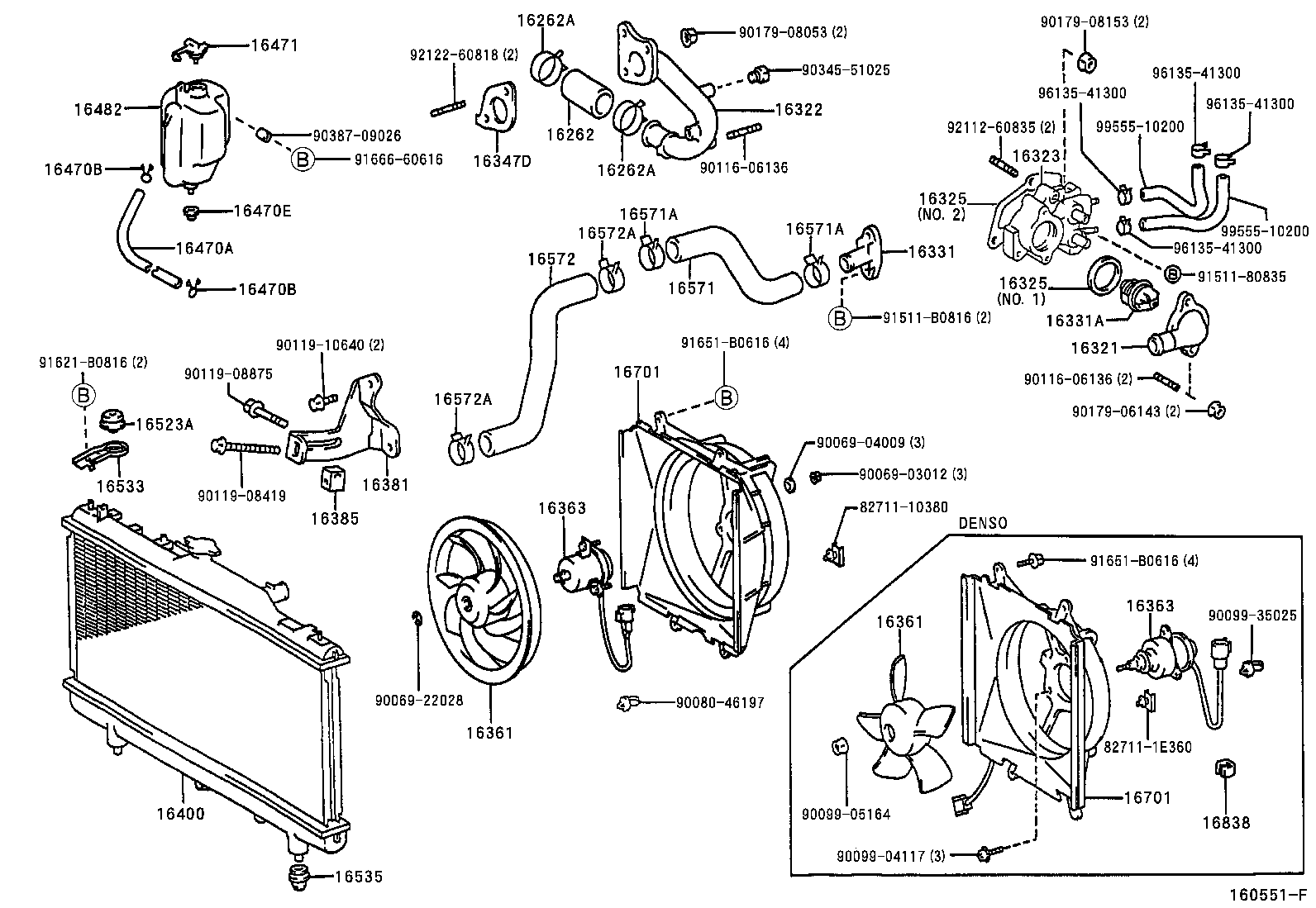

ILLUST NO. 1 OF 2(9710-0007)4AFE,7AFE

Click highlighted areas on diagram

diagram 16262 16262A 16262A 16321 16322 16323 16325 16325 16331 16331A 16347D 16361 16361 16363 16363 16381 16385 16400 16470A 16470B 16470B 16470E 16471 16482 16523A 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16701 16701 16838 8271110380 827111E360 9006903012 9006904009 9006922028 9008046197 9009904117 9009905164 9009935025 9011606136 9011606136 9011908419 9011908875 9011910640 9017906143 9017908053 9017908153 9034551025 9038709026 9151180835 91511B0816 91621B0816 91651B0616 91651B0616 9166660616 9211260835 9212260818 9613541300 9613541300 9613541300 9613541300 9955510200 9955510200
Part # Description Qty Price
16262 - HOSE, WATER INLET
16262-02030

4AFE,7AFE..AT22#

 1
16262-16030

4AFE,7AFE..AT22#

 1
16262A - CLIP(FOR WATER INLET HOSE)
90467-37002

4AFE,7AFE..AT22#

 2
16262A - CLIP(FOR WATER INLET HOSE)
90467-37002

4AFE,7AFE..AT22#

 2
16321 - INLET, WATER
16321-02060

4AFE,7AFE..AT22#

 1
16322 - PIPE, WATER INLET
16322-02031

7AFE..AT221

 1
16322-16080

7AFE..AT221

 1
16323 - HOUSING, WATER INLET
16323-02030

4AFE,7AFE..AT22#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-15020

4AFE,7AFE..AT22#

NO.2

 1
16325-63011

4AFE,7AFE..AT22#

NO.1

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-15020

4AFE,7AFE..AT22#

NO.2

 1
16325-63011

4AFE,7AFE..AT22#

NO.1

 1
16331 - OUTLET, WATER
16331-02050

4AFE,7AFE..AT22#

 1
16331A - THERMOSTAT
90080-23003

4AFE,7AFE..AT22#

*WAX 82-95

 1
16347D - GASKET, WATER BY-PASS
16347-02011

4AFE,7AFE..AT22#

 1
16361 - FAN
16361-02080

1AZFSE,4AFE,7AFE..AT22#,AZT220

BOSCH

 1
16361 - FAN
16361-02080

1AZFSE,4AFE,7AFE..AT22#,AZT220

BOSCH

 1
16363 - MOTOR, COOLING FAN
16363-02070

1AZFSE,4AFE,7AFE..AT22#,AZT220

BOSCH

 1
16363 - MOTOR, COOLING FAN
16363-02070

1AZFSE,4AFE,7AFE..AT22#,AZT220

BOSCH

 1
16381 - BAR, FAN BELT ADJUSTING
16381-02030

4AFE,7AFE..AT22#

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-15020

4AFE,7AFE..AT22#

 1
16400 - RADIATOR ASSY
16400-02270

4AFE..AT220..LHD;7AFE..AT221..MTM

MARK 0227

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16472-02070

1AZFSE,4AFE,7AFE..AT22#,AZT220

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90466-11001

4AFE,7AFE..AT22#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90466-11001

4AFE,7AFE..AT22#

 1
16470E - GROMMET, RADIATOR RESERVE TANK HOSE
90080-48049

1AZFSE,4AFE,7AFE..AT22#,AZT220

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-02070

1AZFSE,4AFE,7AFE..AT22#,AZT220

 1
16482 - TANK SUB-ASSY, RADIATOR RESERVE
16482-02070

1AZFSE,4AFE,7AFE..AT22#,AZT220

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-02020

1AZFSE,4AFE,7AFE..AT22#,AZT220

 2
16533 - SUPPORT, RADIATOR, UPPER
16533-02060

1AZFSE,4AFE,7AFE..AT22#,AZT220

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-02050

1AZFSE,4AFE,7AFE..AT22#,AZT220

 2
16571 - HOSE, RADIATOR, INLET
16571-16210

4AFE,7AFE..AT22#

 1
16571-02070

4AFE,7AFE..AT22#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34004

4AFE,7AFE..AT22#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34004

4AFE,7AFE..AT22#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-16210

4AFE,7AFE..AT22#

 1
16572-02061

4AFE,7AFE..AT22#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34004

4AFE,7AFE..AT22#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34004

4AFE,7AFE..AT22#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-02060

1AZFSE,4AFE,7AFE..AT22#,AZT220

BOSCH

 1
16701 - SHROUD SUB-ASSY, FAN
16711-02060

1AZFSE,4AFE,7AFE..AT22#,AZT220

BOSCH

 1
Common parts
82711-10380
82711-1E360
90069-03012
90069-04009
90069-22028
90080-46197
90099-04117
90099-05164
90099-35025
90116-06136
90119-08419
90119-08875
90119-10640
90179-06143
90179-08053
90179-08153
90345-51025
90387-09026
91511-80835
91511-B0816
91621-B0816
91651-B0616
91666-60616
92112-60835
92122-60818
96135-41300
99555-10200
