AT221L-ALMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

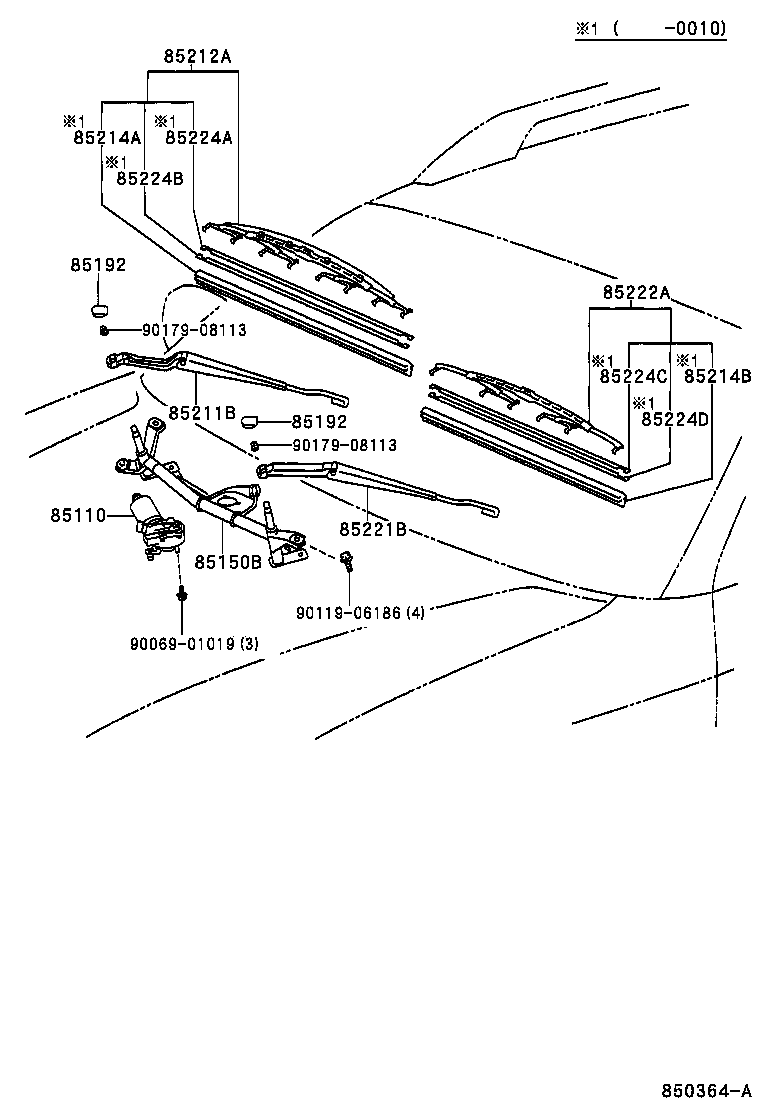

Click highlighted areas on diagram

diagram 85110 85150B 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 9006901019 9011906186 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
85150B - LINK ASSY, WIPER
85150-05040

AT22#,CT220,ST220..LHD

 1
85150-05041

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
85211B - ARM, FRONT WIPER, RH
85211-05051

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
85211-05050

AT22#,CT220,ST220..LHD

 1
85212A - BLADE, FR WIPER, RH
85222-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
85214A - RUBBER, WIPER, RH
85214-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
85214B - RUBBER, WIPER, LH
85214-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
85221B - ARM, FRONT WIPER, LH
85221-05051

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
85221-05050

AT22#,CT220,ST220..LHD

 1
85222A - BLADE, FR WIPER, LH
85222-05060

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
Common parts
90069-01019
90119-06186
90179-08113
