AT221L-ALMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )LB

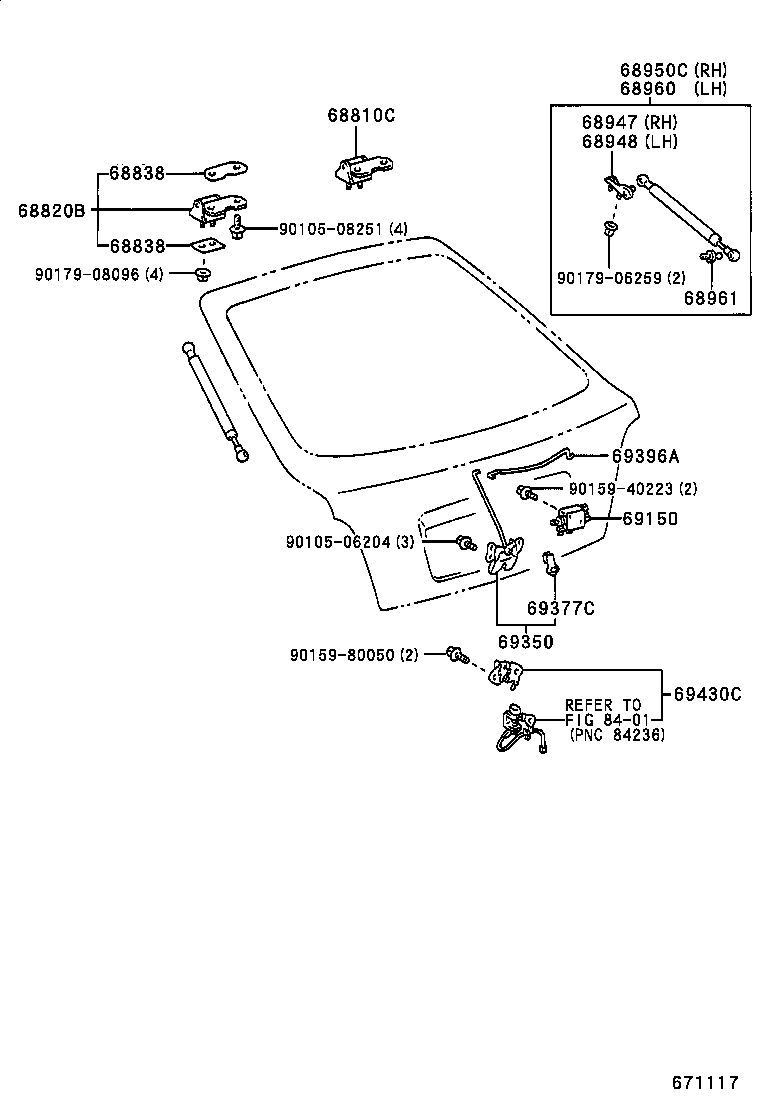

Click highlighted areas on diagram

diagram 68810C 68820B 68838 68838 68947 68948 68950C 68960 68961 69150 69350 69377C 69396A 69430C 8401 9010506204 9010508251 9015940223 9015980050 9017906259 9017908096
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68801-05021

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
68820B - HINGE ASSY, BACK DOOR, LH
68801-05021

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

LOWER

 2
68838-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

UPPER

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

LOWER

 2
68838-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

UPPER

 2
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-09080

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-09050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
68961 - BOLT, BACK DOOR STAY
68961-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 2
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

 1
69350 - LOCK ASSY, BACK DOOR
69350-20090

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
69377C - SNAP, DOOR LOCK CONTROL ROD
69759-20040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
69396A - ROD, BACK DOOR LOCK OPENING, NO.2
69396-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-20150

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
Common parts
90105-06204
90105-08251
90159-40223
90159-80050
90179-06259
90179-08096
Linked diagrams
8401
