AT221L-ALMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

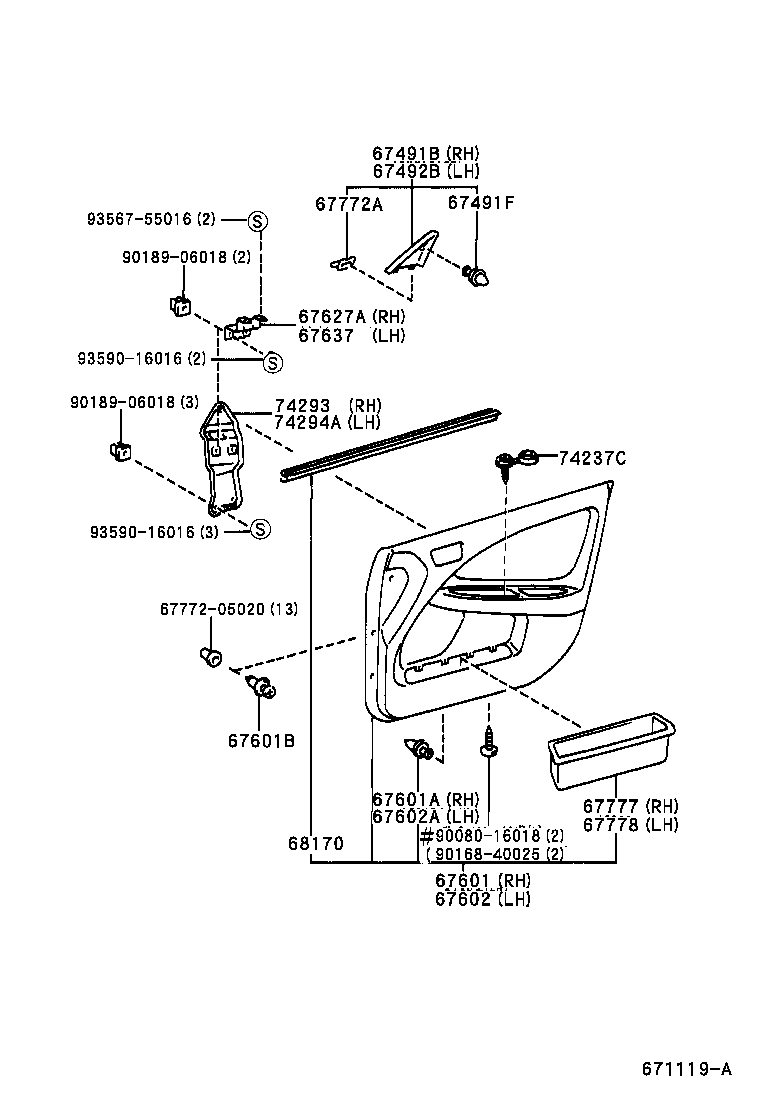

ILLUST NO. 1 OF 3(9710- )

Click highlighted areas on diagram

diagram 67491B 67491F 67492B 67601 67601A 67601B 67602 67602A 67627A 67637 6777205020 67772A 67777 67778 68170 74237C 74293 74294A 9008016018 9016840025 9018906018 9018906018 9356755016 9359016016 9359016016
Part # Description Qty Price
67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH
67491-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67491F - CLIP(FOR DOOR TRIM)
67771-30070

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH
67492-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-05300G0

AT22#,CDT220,CT220,ST220..SOL

TRIM = TYPE A-*104,GREEN,TRIM6#

 1
67610-05310B0

AT22#,CDT220,CT220,ST220..SOL

TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#

 1
67610-05300B0

AT22#,CDT220,CT220,ST220..SOL

TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-20110

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90080-46230G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 13
90080-46230B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 13
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-05300G0

AT22#,CDT220,CT220,ST220..SOL

TRIM = TYPE A-*104,GREEN,TRIM6#

 1
67620-05300B0

AT22#,CDT220,CT220,ST220..SOL

TRIM = TYPE A-*104,MEDIUM GRAY,TRIM1#

 1
67620-05310B0

AT22#,CDT220,CT220,ST220..SOL

TRIM = TYPE B-*104,MEDIUM GRAY,TRIM1#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-20110

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
67627A - BRACKET, DOOR TRIM, NO.3
67627-05010

AT22#,CDT220,CT220,ST220

 1
67637 - PLATE, FRONT DOOR TRIM
67637-05010

AT22#,CDT220,CT220,ST220

 1
67772A - CAP, FRONT DOOR TRIM RETAINER
67772-21020

AT22#,CT220,ST220

 2
67777 - POCKET, FRONT DOOR TRIM, RH
67777-05030G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
67777-05030B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-05030B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 1
67778-05030G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-20100

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

(J),RH

 1
68172-20090

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

(J),LH

 1
74237C - CAP, FRONT DOOR ARMREST BASE
74237-20050B0

AT22#,CT220,ST220

MD.GRAY,TRIM1#

 4
74237-20060B0

AT22#,CDT220,CT220,ST220

MD.GRAY,TRIM1#

 4
74237-20060G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

SLATE GREEN,TRIM6#

 4
74237-20050G0

AT22#,CT220,ST220

SLATE GREEN,TRIM6#

 4
74293 - PLATE, FRONT DOOR ARMREST, NO.1
74293-05030

AT22#,CDT220,CT220,ST220

 1
74294A - PLATE, FRONT DOOR ARMREST, NO.2
74294-05010

AT22#,CDT220,CT220,ST220

 1
Common parts
67772-05020
90080-16018
90168-40025
90189-06018
93567-55016
93590-16016

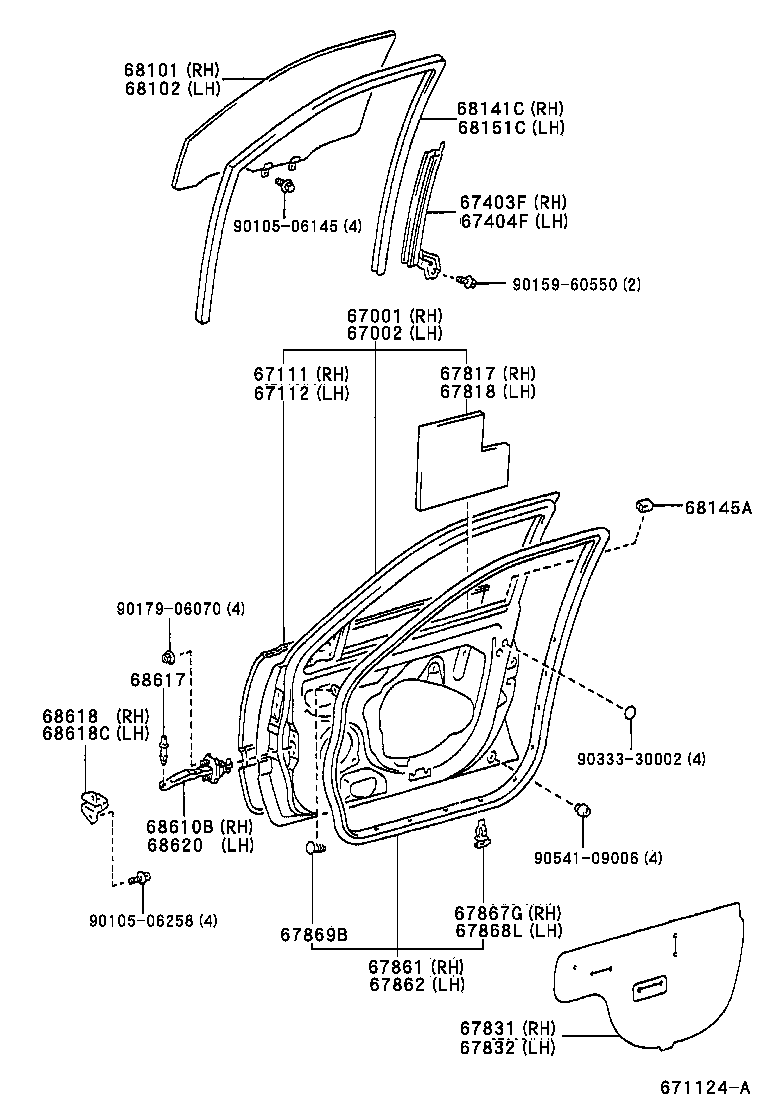

ILLUST NO. 2 OF 3(9710- )

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67403F 67404F 67817 67818 67831 67832 67861 67862 67867G 67868L 67869B 68101 68102 68141C 68145A 68151C 68610B 68617 68618 68618C 68620 9010506145 9010506258 9015960550 9017906070 9033330002 9054109006
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-05030

AT22#,CDT220,CT220,ST220

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-05030

AT22#,CDT220,CT220,ST220

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

(L)

 1
67403-20140

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

(J)

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-20120

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

(J)

 1
67404-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

(L)

 1
67817 - PACKING, FRONT DOOR PROTECTOR, RH
67817-20020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67818 - PACKING, FRONT DOOR PROTECTOR, LH
67818-20020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67801-05030

AT22#,CDT220,CT220,ST220

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67802-05030

AT22#,CDT220,CT220,ST220

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-12150

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 16
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-12150

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 16
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

*TEM,T=5.0,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

*TEM,T=5.0,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
68145A - CUSHION, FRONT DOOR WINDOW
68145-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
68151C - RUN, FRONT DOOR GLASS, LH
68151-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-05030

AT22#,CDT220,CT220,ST220

 1
68610-05031

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
68617 - PIN, FRONT DOOR CHECK
68617-20011

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
68618 - BRACKET, FRONT DOOR CHECK ARM, RH
68618-20020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
68618C - BRACKET, FRONT DOOR CHECK ARM, LH
68618-20020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-05031

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
68610-05030

AT22#,CDT220,CT220,ST220

 1
Common parts
90105-06145
90105-06258
90159-60550
90179-06070
90333-30002
90541-09006

ILLUST NO. 3 OF 3(9710-0007)

Click highlighted areas on diagram

diagram
Part # Description Qty Price
