AT221L-ALMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

Click highlighted areas on diagram

4-SPOKE

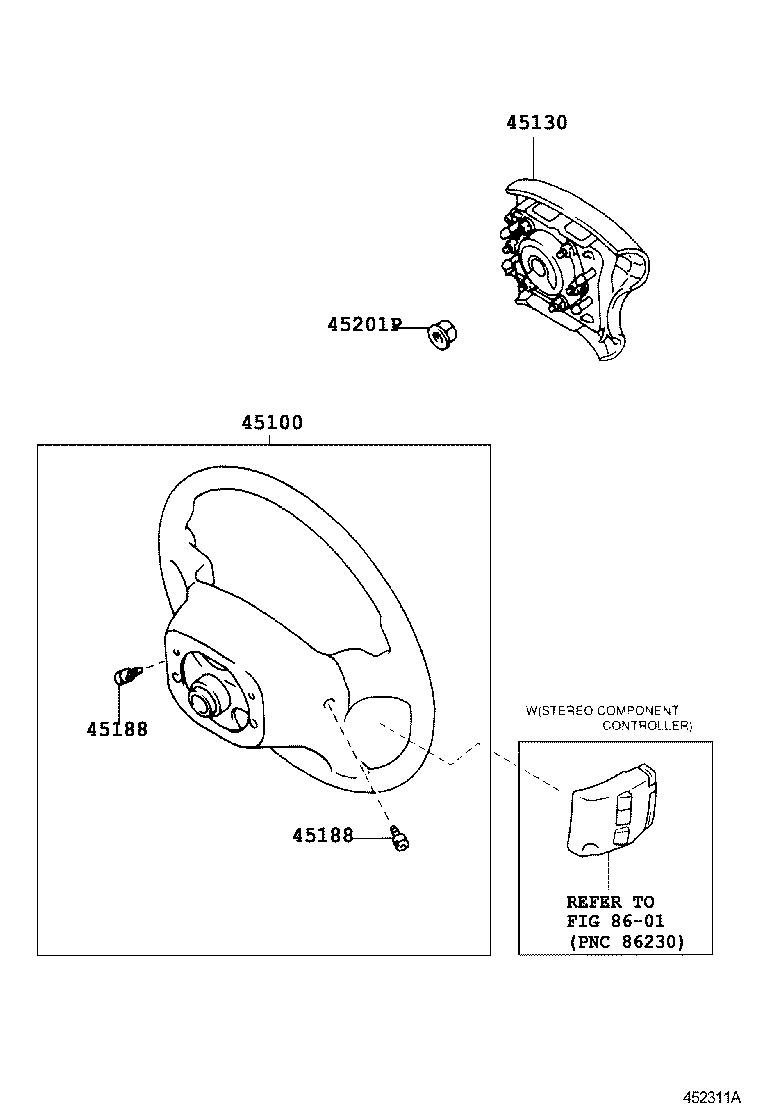

diagram 45100 45130 45188 45188 45201P 8601
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-05070C0

AT22#,CT220,ST220..SOL

4-SPOKE,LEATHER,W(ELECTRICAL TYPE *80),BLACK,TRIM1#,6#

 1
45100-05070C0

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

4-SPOKE,LEATHER,W(ELECTRICAL TYPE *80),BLACK,TRIM1#,6#

 1
45130 - BUTTON ASSY, HORN
45130-05070C0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

BLACK,TRIM1#,6#

 1
45130-05050C0

AT22#,CT220,ST220

BLACK,TRIM1#,6#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90080-14018

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

L=15.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90080-14018

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

L=15.5

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Linked diagrams
8601
