AT221L-AEPEKW (1997)
Toyota Avensis
Production
Oct 1997
-
Jul 2000
Engine
7AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

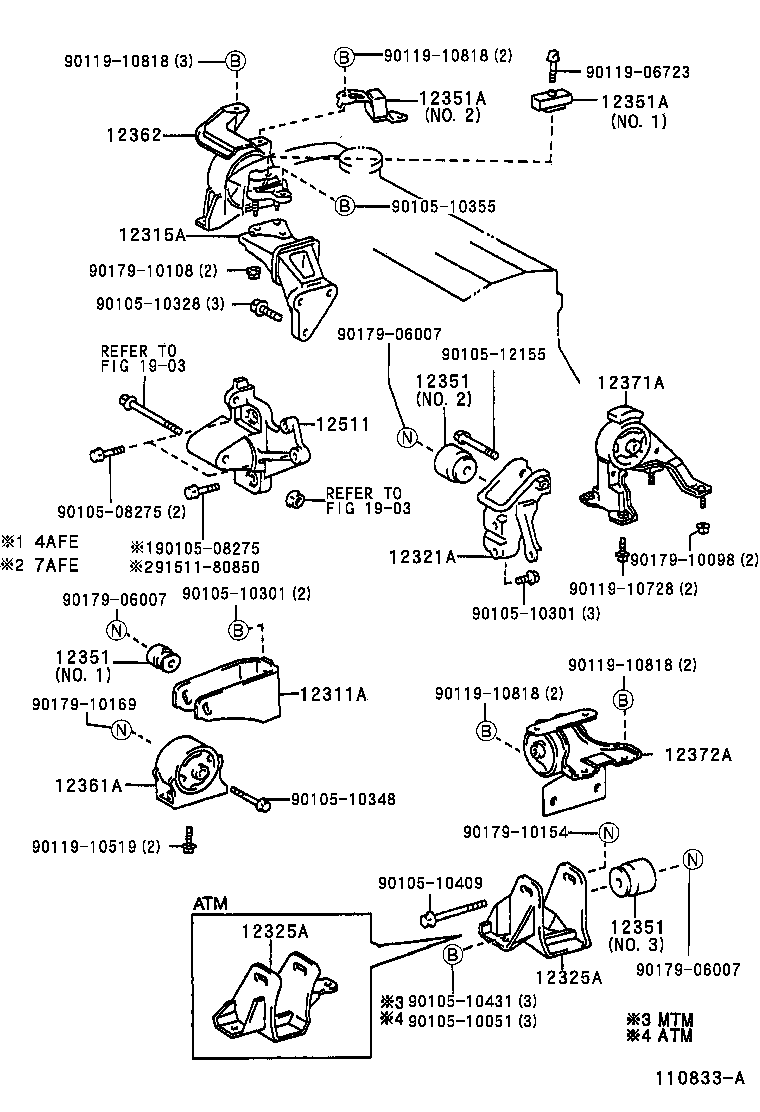

(9710-0007)4AFE,7AFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-02040 |
4AFE,7AFE..AT22# |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-02040 |
4AFE,7AFE..AT22# |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-16270 |
7AFE..AT221..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-16210 |
7AFE..AT221..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-16210 |
7AFE..AT221..ATM |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-02020 |
1AZFSE,4AFE,7AFE..AT22#,AZT220 NO.1 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-02020 |
1AZFSE,4AFE,7AFE..AT22#,AZT220 NO.1 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-02020 |
1AZFSE,4AFE,7AFE..AT22#,AZT220 NO.1 |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-16080 |
7AFE..AT221 NO.2 |
1 | ||
| 12351-16050 |
7AFE..AT221 NO.1 |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-16080 |
7AFE..AT221 NO.2 |
1 | ||
| 12351-16050 |
7AFE..AT221 NO.1 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-02100 |
1AZFSE,7AFE..AT221,AZT220..ATM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12305-16160 |
4AFE,7AFE..AT22# |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-16340 |
7AFE..AT221..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-02140 |
4AFE,7AFE..AT22#;1AZFSE..AZT220..MTM |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-16100 |
7AFE..AT221 |
1 | ||
| 12511-02040 |
7AFE..AT221 |
1 | ||
| Common parts | ||||
| 90105-08275 | ||||
| 90105-10051 | ||||
| 90105-10301 | ||||
| 90105-10328 | ||||
| 90105-10348 | ||||
| 90105-10355 | ||||
| 90105-10409 | ||||
| 90105-10431 | ||||
| 90105-12155 | ||||
| 90119-06723 | ||||
| 90119-10519 | ||||
| 90119-10728 | ||||
| 90119-10818 | ||||
| 90179-06007 | ||||
| 90179-10098 | ||||
| 90179-10108 | ||||
| 90179-10154 | ||||
| 90179-10169 | ||||
| 91511-80850 | ||||
| Linked diagrams | ||||
| 1903 | ||||
