AT221L-AEMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

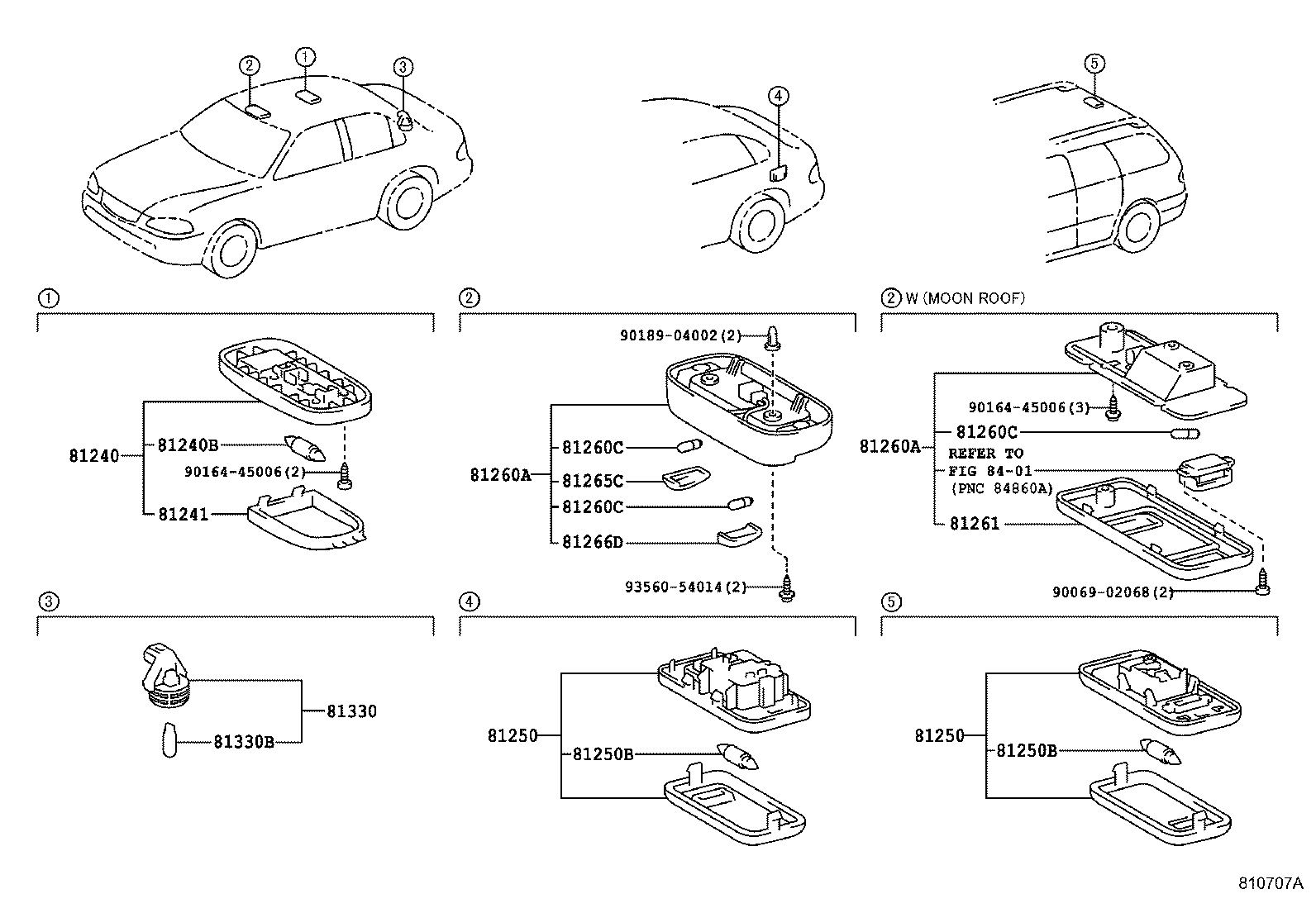

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250 81250B 81250B 81260A 81260A 81260C 81260C 81260C 81261 81265C 81266D 81330 81330B 8401 9006902068 9016445006 9016445006 9018904002 9356054014
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-05010B1

AT22#,CDT220,CT220,ST220

LT.GRAY,TRIM1#

 1
81240-05010G0

AT22#,CDT220,CT220,ST220

LT.GREEN,TRIM6#

 1
81240B - BULB, ROOM LAMP, NO.1
90080-81047

AT22#,CT220,ST220

12V 10W

 1
90080-81078

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
81260A - LAMP ASSY, MAP
81260-05050G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(MOON ROOF),LT.GREEN,TRIM6#

 1
81260-05040G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GREEN,TRIM6#

 1
81260-05050B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(MOON ROOF),LT.GRAY,TRIM1#

 1
81260-05040B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GRAY,TRIM1#

 1
81260A - LAMP ASSY, MAP
81260-05050G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(MOON ROOF),LT.GREEN,TRIM6#

 1
81260-05040G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GREEN,TRIM6#

 1
81260-05050B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

W(MOON ROOF),LT.GRAY,TRIM1#

 1
81260-05040B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT.GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90011-11006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 5W,W(MOON ROOF)

 1
90011-11006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
90011-11006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 5W,W(MOON ROOF)

 1
90011-11006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
90011-11006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 5W,W(MOON ROOF)

 1
90011-11006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 5W

 2
81261 - LENS AND COVER, MAP LAMP
81261-05050G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT. GREEN,TRIM6#

 1
81261-05050B0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

LT. GRAY,TRIM1#

 1
81265C - LENS, MAP LAMP, NO.1
81265-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
81266D - LENS, MAP LAMP, NO.2
81266-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90080-81048

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

12V 5.0W

 1
Common parts
90069-02068
90164-45006
90189-04002
93560-54014
Linked diagrams
8401
