AT220R-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

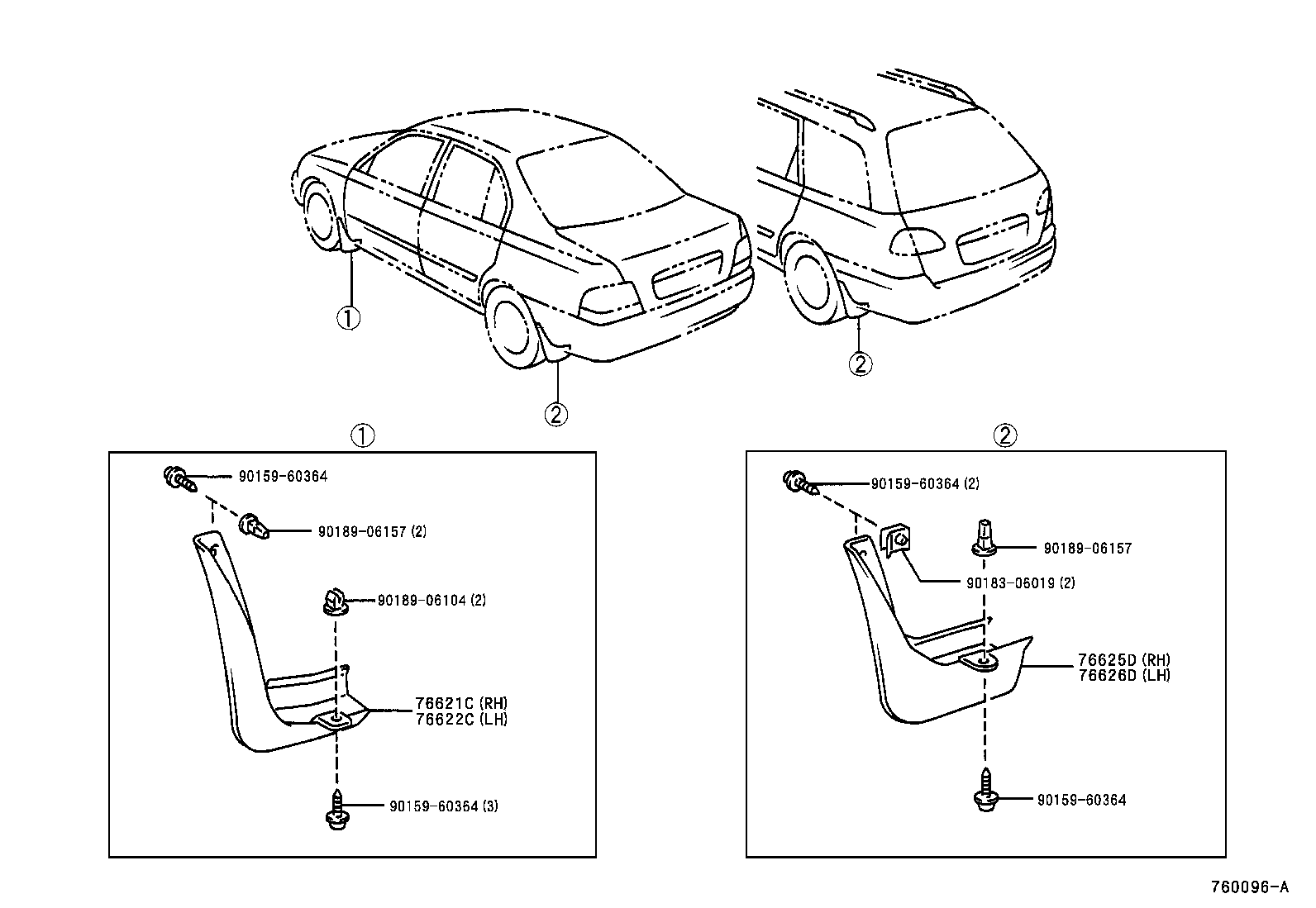

Click highlighted areas on diagram

diagram 76621C 76622C 76625D 76626D 9015960364 9015960364 9015960364 9015960364 9018306019 9018906104 9018906157 9018906157
Part # Description Qty Price
76621C - MUDGUAD, FRONT FENDER, RH
76621-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
76622C - MUDGUARD, FRONT FENDER, LH
76622-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
76625D - MUDGUARD, QUARTER PANEL, REAR RH
76625-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
76626D - MUDGUARD, QUARTER PANEL, REAR LH
76626-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
90159-60364
90183-06019
90189-06104
90189-06157
