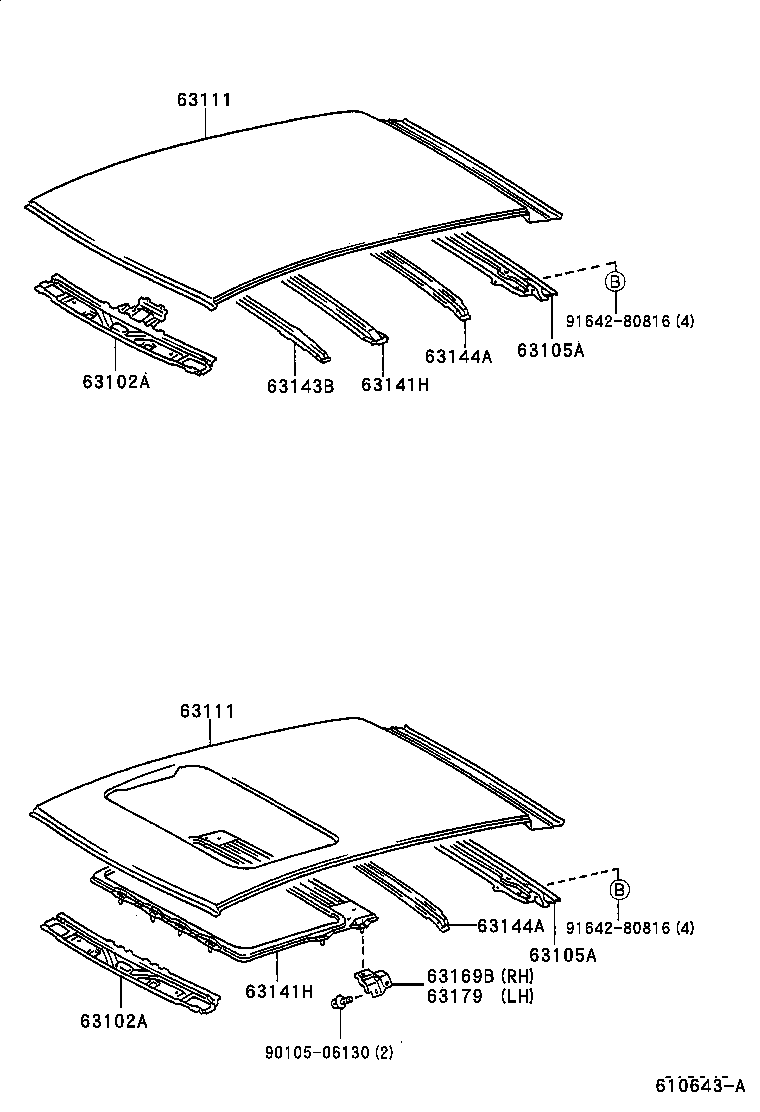

AT220R-ALMNKW (1997)
Toyota Avensis
(9710- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63102-05050 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG W(MOON ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63102-05050 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG W(MOON ROOF) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-05900 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-05900 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-05190 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB |
1 | ||
| 63111-05200 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-05190 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB |
1 | ||
| 63111-05200 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB W(MOON ROOF) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED |
1 | ||
| 63103-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(MOON ROOF) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED |
1 | ||
| 63103-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED |
1 | ||
| 63144-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED W(MOON ROOF) |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED |
1 | ||
| 63144-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED W(MOON ROOF) |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-05010 |
AT22#,CT220,ST220 |
1 | ||
| 63169-05011 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63169-05011 |
CDT220..LB,SED;AT22#,CT220,ST220 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-05010 |
AT22#,CT220,ST220 |
1 | ||
| 63179-05011 |
CDT220..LB,SED;AT22#,CT220,ST220 |
1 | ||
| 63179-05011 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90105-06130 | ||||
| 91642-80816 | ||||
(9710- )
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63207G - RAIL SUB-ASSY, SLIDING ROOF GUIDE | ||||
| 63207-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-0W010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-0W010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-0W010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-0W010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63228D - CLIP, ROOF WINDOW DEFLECTOR PANEL GUIDE | ||||
| 63228-0W010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 63228D - CLIP, ROOF WINDOW DEFLECTOR PANEL GUIDE | ||||
| 63228-0W010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 63233B - FRAME, SLIDING ROOF HOUSING, RH | ||||
| 63233-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63234B - FRAME, SLIDING ROOF HOUSING, LH | ||||
| 63234-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-05010 |
AT22#,CT220,ST220 |
2 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-05060 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-05070 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED L=1620 |
2 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63255F - COVER, SLIDE ROOF MOTOR | ||||
| 63255-0W010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63256-05010 |
AT22#,CT220,ST220 |
1 | ||
| 63257E - HOLDER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63257-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63258G - HOLDER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63258-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63262-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 63275C - BOX, SLIDING ROOF DRIVE GEAR | ||||
| 63275-0W010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90080-10039 | ||||
| 90080-14005 | ||||
| 90080-14006 | ||||
| 90080-15030 | ||||
| 90080-15031 | ||||
| 90080-18018 | ||||
| 90080-24033 | ||||
| 90080-24040 | ||||
| 90080-38063 | ||||
| 90080-52045 | ||||
| 90119-06098 | ||||
| 90179-06276 | ||||
| 90467-14001 | ||||
| 90480-26020 | ||||
| 90959-01553 | ||||
| 90959-01566 | ||||
