AT220R-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

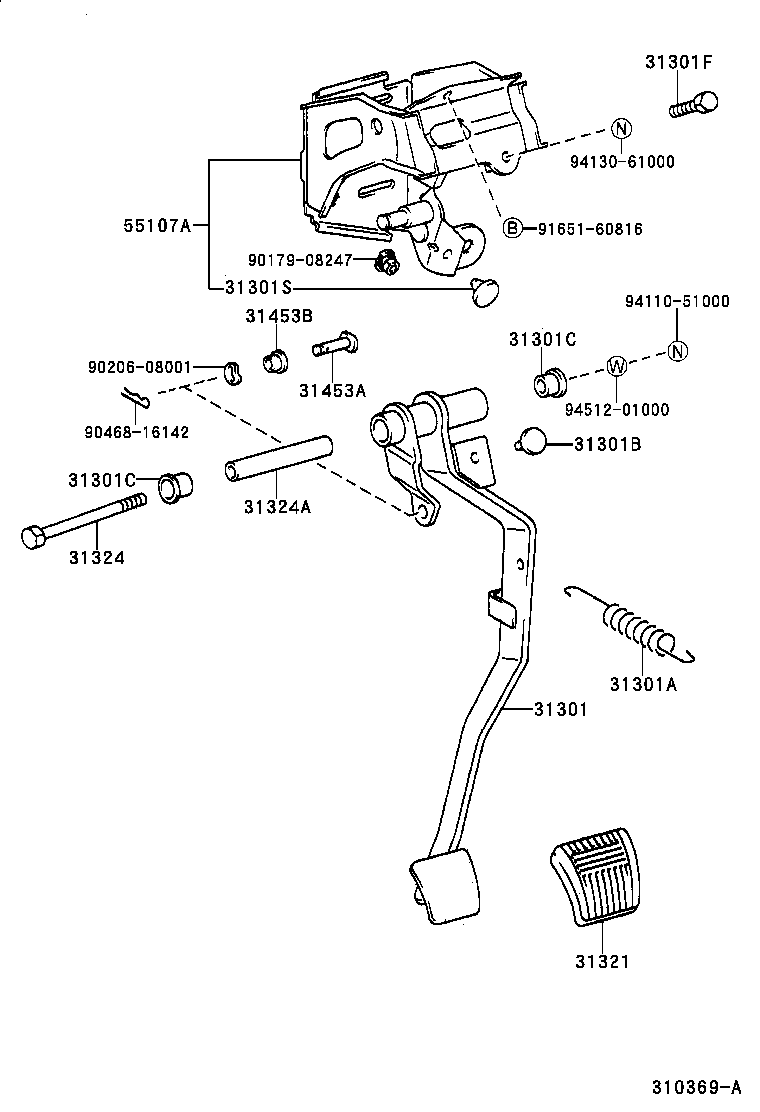

ILLUST NO. 1 OF 2(9710-0007)AT22#,ST220..RHD..MTM ; (0007- )ZZT22#..RHD..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301S 31321 31324 31324A 31453A 31453B 55107A 9017908247 9020608001 9046816142 9165160816 9411051000 9413061000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-05010

AT22#,ST220,ZZT22#..RHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-07002

AT22#,ST220,ZZT22#..RHD..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90541-06036

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

AT22#,CT220,ST220..MTM

 1
31321-14020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10100

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10002

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-05040

AT22#,ST220,ZZT22#..RHD..MTM

 1
Common parts
90179-08247
90206-08001
90468-16142
91651-60816
94110-51000
94130-61000
94512-01000

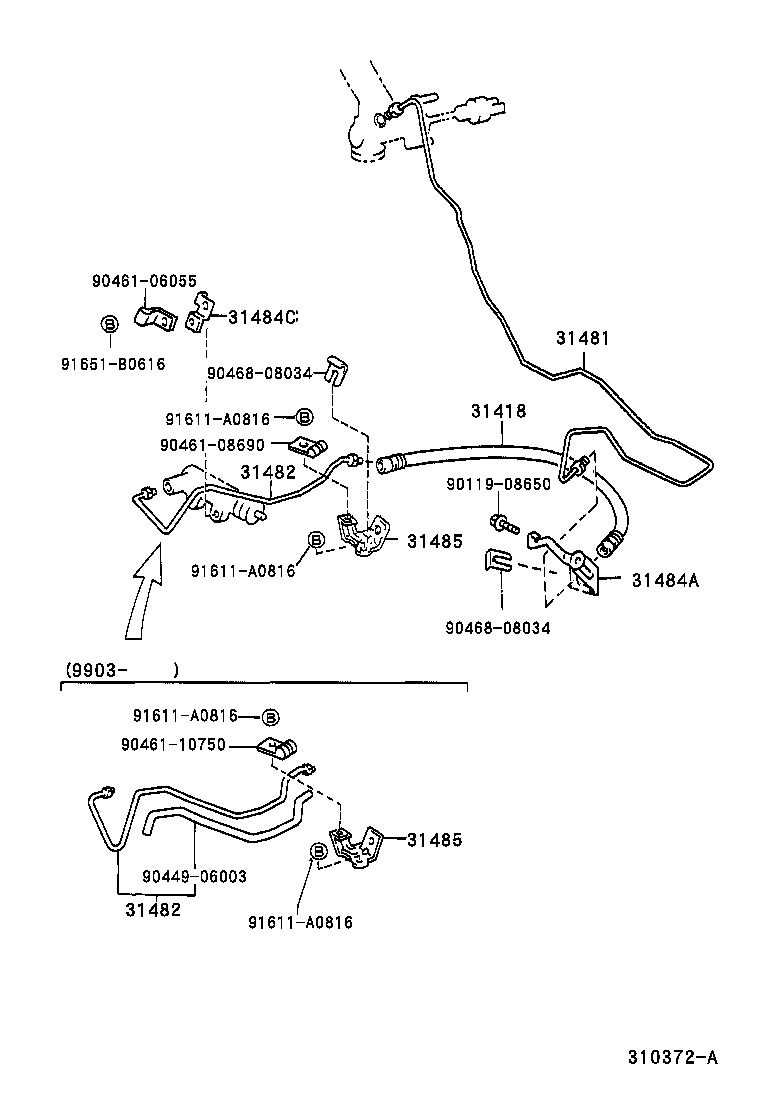

ILLUST NO. 2 OF 2(9710-0007)AT22#..RHD..MTM

Click highlighted areas on diagram

diagram 31418 31481 31482 31482 31484A 31484C 31485 31485 9011908650 9044906003 9046106055 9046108690 9046110750 9046808034 9046808034 91611A0816 91611A0816 91611A0816 91611A0816 91651B0616
Part # Description Qty Price
31418 - HOSE, CLUTCH
90080-93008

AT22#,CDT220,CT220,ST220..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-05060

AT22#,CDT220,CT220,ST220..RHD..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-05050

AT22#..MTM

 1
31482-05051

AT22#..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-05050

AT22#..MTM

 1
31482-05051

AT22#..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20540

CDT220..RHD;AT22#,AZT220,CT220,ST220,ZZT22#..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12110

AT22#..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-20531

AT22#..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-20531

AT22#..MTM

 1
Common parts
90119-08650
90449-06003
90461-06055
90461-08690
90461-10750
90468-08034
91611-A0816
91651-B0616
