AT220L-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

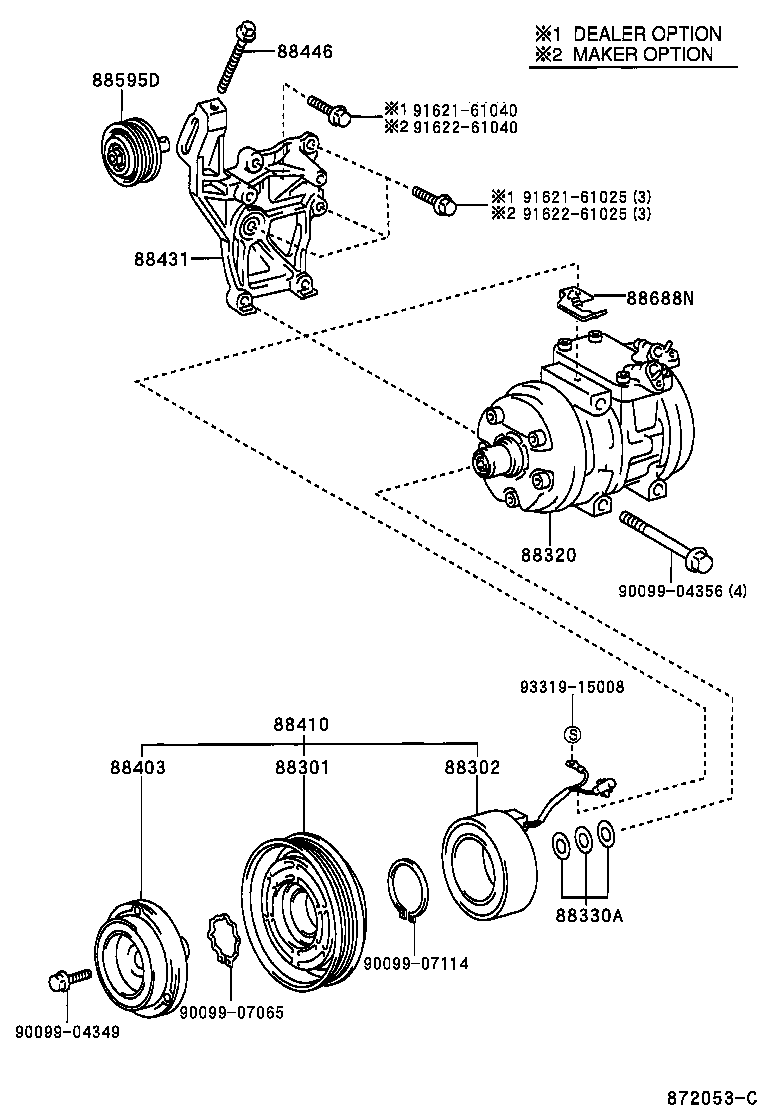

ILLUST NO. 1 OF 3(9710- )AT22#

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88431 88446 88595D 88688N 9009904349 9009904356 9009907065 9009907114 9162161025 9162161040 9162261025 9162261040 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-12150

AT220..LHD

DEALER OPTION

 1
88412-12190

AT22#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030

AT22#,CDT220,CT220,ST220

 1
88320 - COMPRESSOR ASSY, COOLER
88320-2B400

AT22#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290

AT22#,CT220,ST220

 1
88410 - CLUTCH ASSY, MAGNET
88410-34040

AT220..LHD

DEALER OPTION

 1
88410-21020

AT22#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-20390

AT22#

 1
88446 - BOLT, IDLE PULLEY
88446-12030

AT22#

 1
88595D - PULLEY ASSY, IDLE
88440-20160

AT22#

DEALER OPTION

 1
88440-20170

AT22#

MAKER OPTION

 1
88688N - BRACKET, COOLER
88688-2D760

AT22#

 1
Common parts
90099-04349
90099-04356
90099-07065
90099-07114
91621-61025
91621-61040
91622-61025
91622-61040
93319-15008

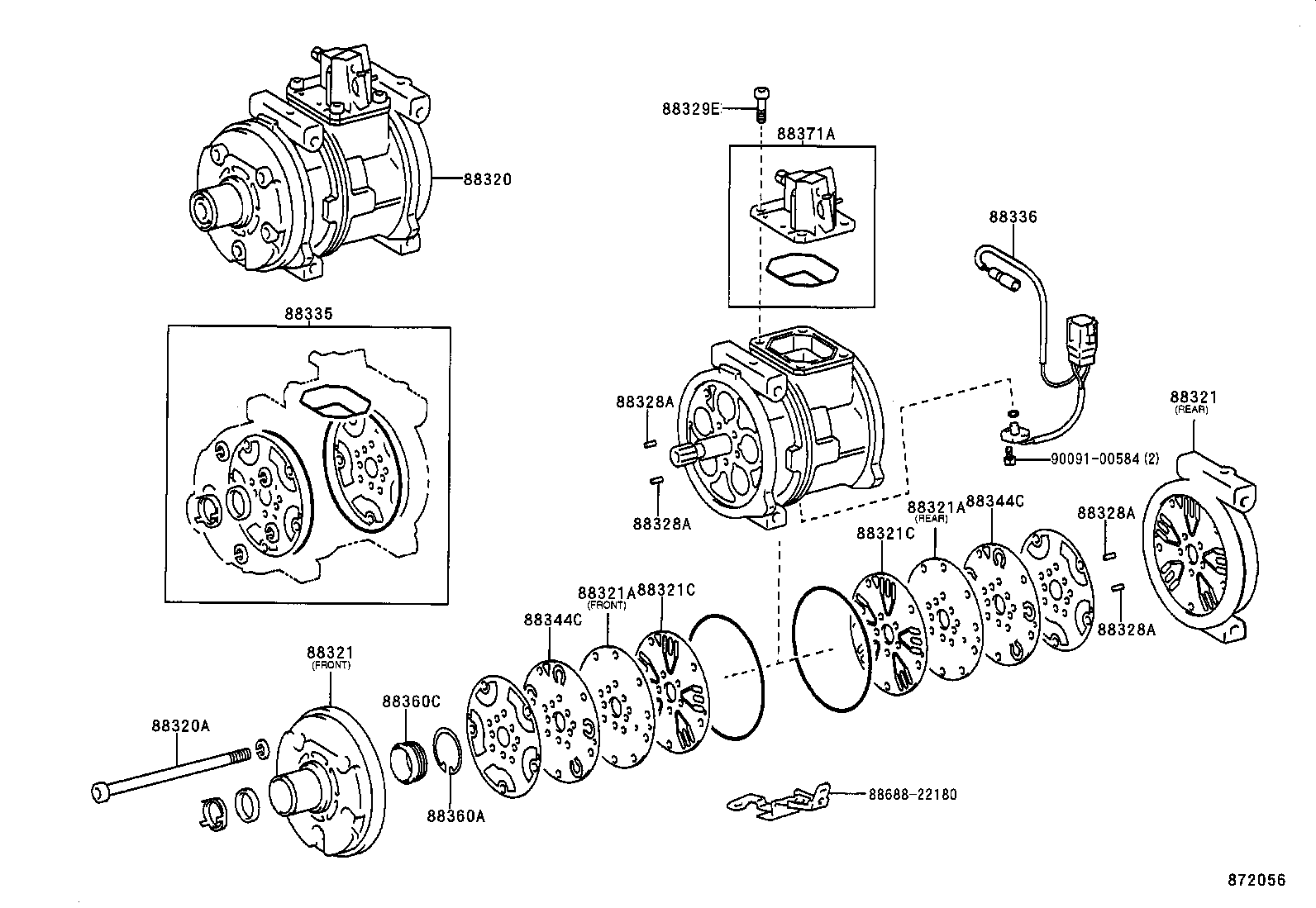

ILLUST NO. 2 OF 2(9710- )AT22#,CT220,ST220

Click highlighted areas on diagram

diagram 88320 88320A 88321 88321 88321A 88321A 88321C 88321C 88328A 88328A 88328A 88328A 88329E 88335 88336 88344C 88344C 88360A 88360C 88371A 8868822180 9009100584
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-2B400

AT22#

 1
88320A - BOLT, THROUGH
90099-04370

AT22#,CT220,ST220

 5
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-32010

AT22#

FRONT

 1
88322-32040

AT22#,CT220,ST220

REAR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-32010

AT22#

FRONT

 1
88322-32040

AT22#,CT220,ST220

REAR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-22010

AT22#,CT220,ST220

FRONT

 1
88342-22010

AT22#,CT220,ST220

REAR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-22010

AT22#,CT220,ST220

FRONT

 1
88342-22010

AT22#,CT220,ST220

REAR

 1
88321C - REED, SUCTION VALVE
88343-14020

AT22#,CT220,ST220

 2
88321C - REED, SUCTION VALVE
88343-14020

AT22#,CT220,ST220

 2
88328A - PIN, COMPRESSOR
90099-08058

AT22#,AZT220,CDT220,CT220,ST220

 4
88328A - PIN, COMPRESSOR
90099-08058

AT22#,AZT220,CDT220,CT220,ST220

 4
88328A - PIN, COMPRESSOR
90099-08058

AT22#,AZT220,CDT220,CT220,ST220

 4
88328A - PIN, COMPRESSOR
90099-08058

AT22#,AZT220,CDT220,CT220,ST220

 4
88329E - BOLT, COMPRESSOR, NO.1
90099-04924

AT22#,CT220,ST220

 4
88335 - GASKET KIT, OVERHAUL
88335-2B030

AT22#,CT220,ST220

 1
88344C - REED, DISCHARGE VALVE
88344-22010

AT22#,CT220,ST220

 2
88344C - REED, DISCHARGE VALVE
88344-22010

AT22#,CT220,ST220

 2
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

AT22#,CT220,ST220

 1
88360C - SEAL ASSY, SHAFT
88360-2B020

AT22#,CT220,ST220

 1
88371A - VALVE, SUCTION
88371-2B180

AT22#

 1
Common parts
88688-22180
90091-00584
