AT220L-AWMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9710- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

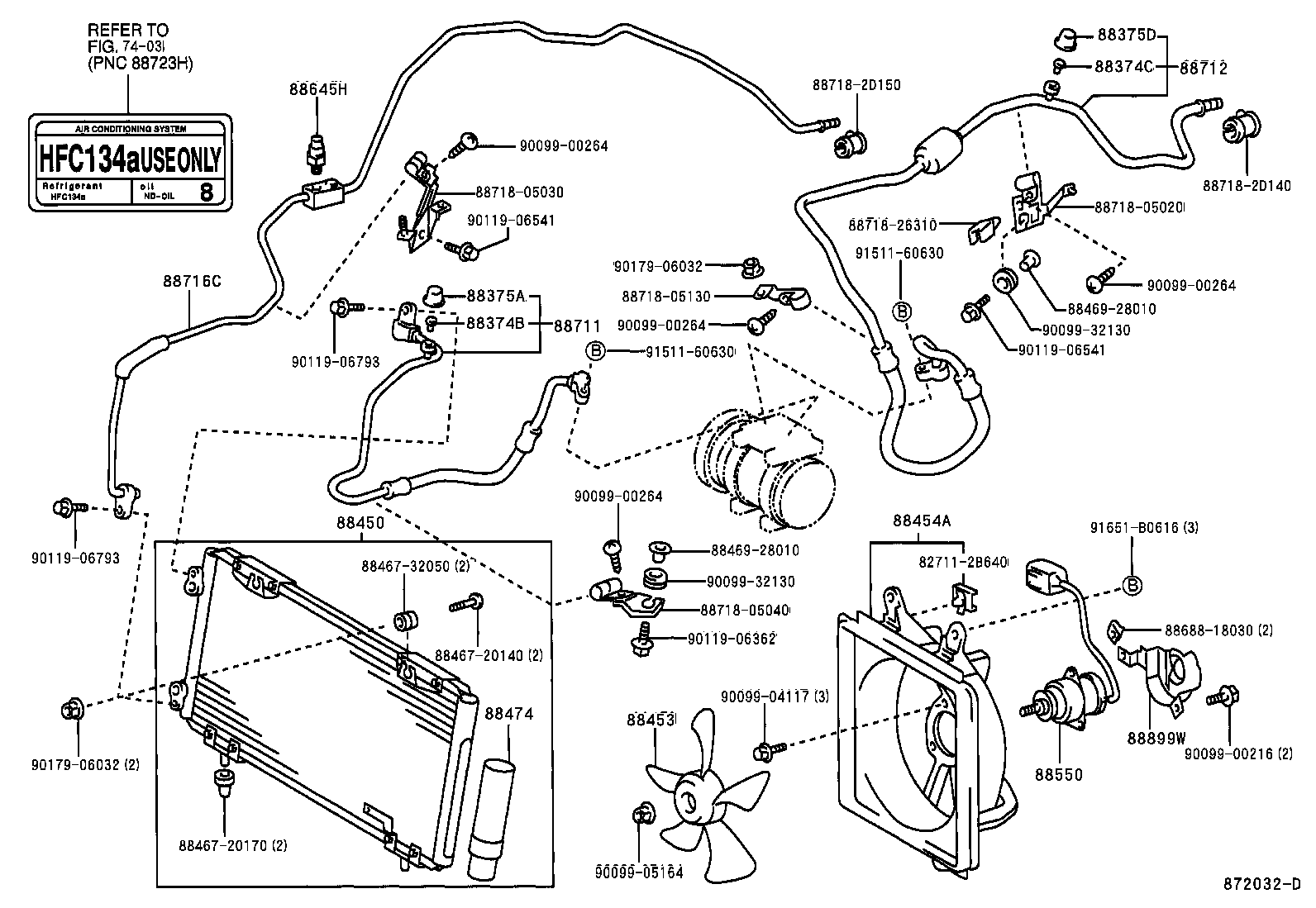

ILLUST NO. 1 OF 2(9710-0007)AT22#..LHD

Click highlighted areas on diagram

MAKER OPTION

diagram 7403 827112B640 88374B 88374C 88375A 88375D 88450 88453 88454A 8846720140 8846720170 8846732050 8846928010 8846928010 88474 88550 88645H 8868818030 88711 88712 88716C 8871805020 8871805030 8871805040 8871805130 8871826310 887182D140 887182D150 88899W 9009900216 9009900264 9009900264 9009900264 9009900264 9009904117 9009905164 9009932130 9009932130 9011906362 9011906541 9011906541 9011906793 9011906793 9017906032 9017906032 9151160630 9151160630 91651B0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AT22#,CT220,ST220

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05010

AT22#,CDT220,CT220,ST220..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080

AT220..LHD

7 BLADES

 1
88454A - SHROUD, FAN
16711-74660

AT220..LHD

 1
88474 - DRYER, COOLER
88474-47010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-64080

AT220..LHD

BOSCH

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-05020

AT22#..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05040

AT22#..LHD

MAKER OPTION

 1
88712-05100

AT22#..LHD

DEALER OPTION

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-05100

AT22#,ST220..LHD

 1
88899W - SUPPORT SUB-ASSY, B
88899-20270

AT220..LHD

 1
Common parts
82711-2B640
88467-20140
88467-20170
88467-32050
88469-28010
88688-18030
88718-05020
88718-05030
88718-05040
88718-05130
88718-26310
88718-2D140
88718-2D150
90099-00216
90099-00264
90099-04117
90099-05164
90099-32130
90119-06362
90119-06541
90119-06793
90179-06032
91511-60630
91651-B0616
Linked diagrams
7403

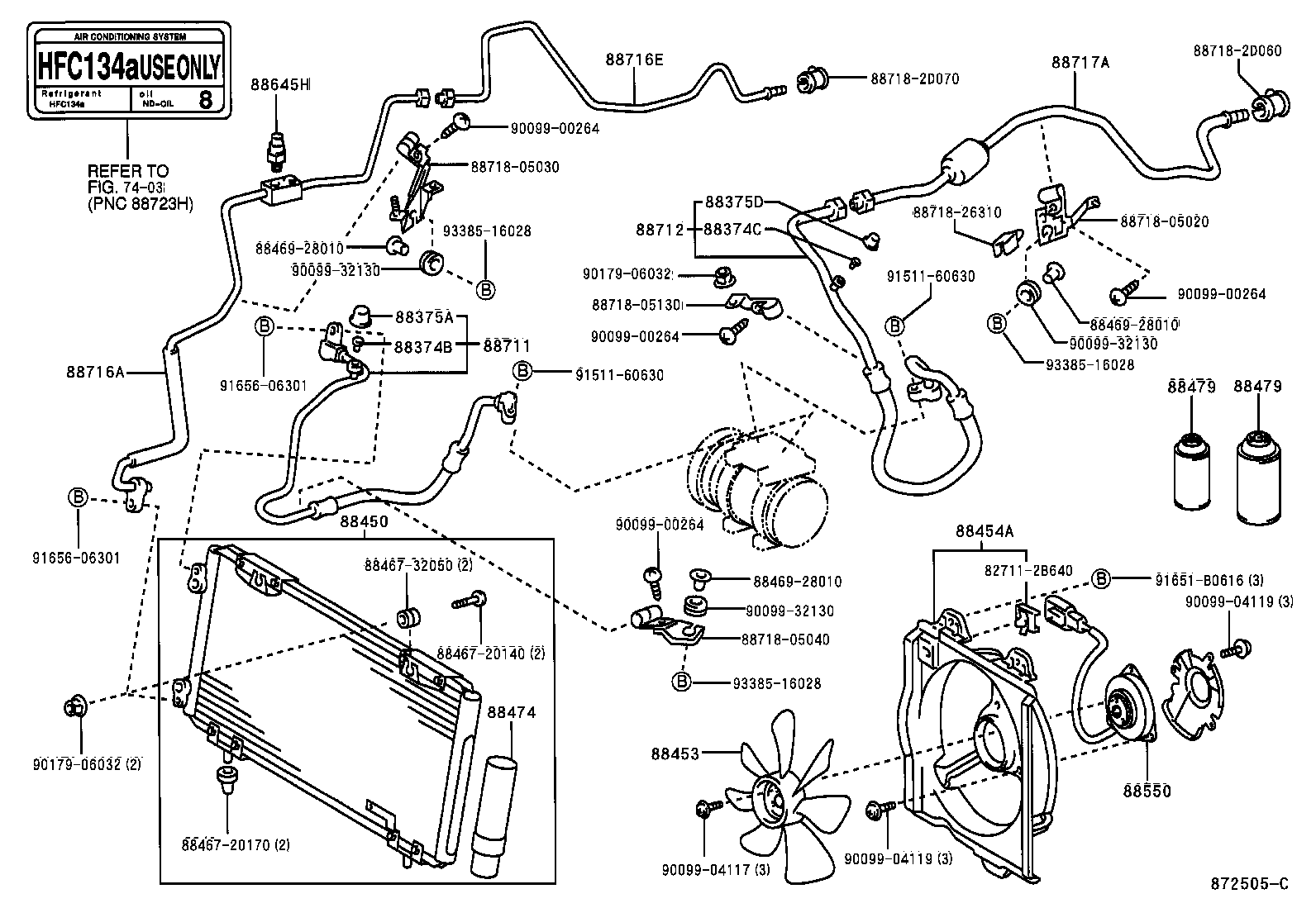

ILLUST NO. 1 OF 2(9710-0007)AT22#..LHD

Click highlighted areas on diagram

DEALER OPTION

diagram 7403 827112B640 88374B 88374C 88375A 88375D 88450 88453 88454A 8846720140 8846720170 8846732050 8846928010 8846928010 8846928010 88474 88479 88479 88550 88645H 88711 88712 88716A 88716E 88717A 8871805020 8871805030 8871805040 8871805130 8871826310 887182D060 887182D070 9009900264 9009900264 9009900264 9009900264 9009904117 9009904119 9009904119 9009932130 9009932130 9009932130 9017906032 9017906032 9151160630 9151160630 91651B0616 9165606301 9165606301 9338516028 9338516028 9338516028
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AT22#,CT220,ST220

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05010

AT22#,CDT220,CT220,ST220..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080

AT220..LHD

7 BLADES

 1
88454A - SHROUD, FAN
16711-74660

AT220..LHD

 1
88474 - DRYER, COOLER
88474-47010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007

AT220..LHD

250G

 1
90986-02008

AT220..LHD

200G

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007

AT220..LHD

250G

 1
90986-02008

AT220..LHD

200G

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-64080

AT220..LHD

BOSCH

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-05020

AT22#..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05040

AT22#..LHD

MAKER OPTION

 1
88712-05100

AT22#..LHD

DEALER OPTION

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-05130

AT22#,ST220..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-05120

AT22#,ST220..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-05100

AT22#..LHD

 1
Common parts
82711-2B640
88467-20140
88467-20170
88467-32050
88469-28010
88718-05020
88718-05030
88718-05040
88718-05130
88718-26310
88718-2D060
88718-2D070
90099-00264
90099-04117
90099-04119
90099-32130
90179-06032
91511-60630
91651-B0616
91656-06301
93385-16028
Linked diagrams
7403
