AT220L-AWMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

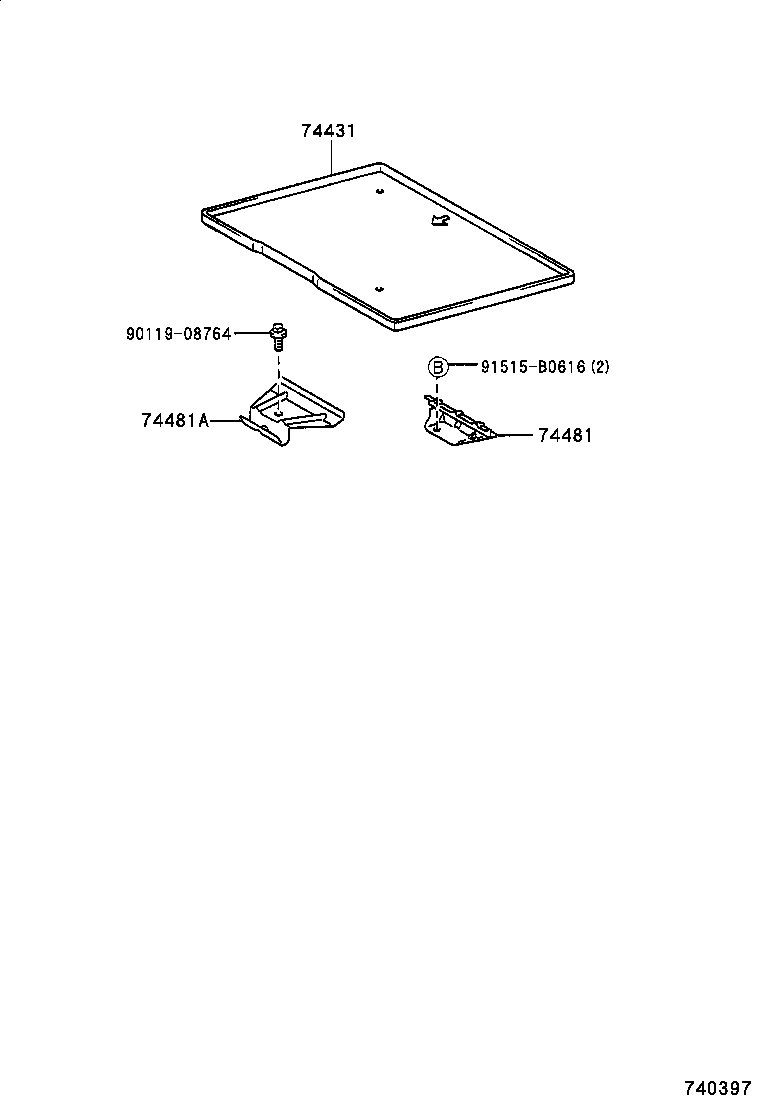

Click highlighted areas on diagram

diagram 74431 74481 74481A 9011908764 91515B0616
Part # Description Qty Price
74431 - TRAY, BATTERY
74431-05030

AT22#,ST220

COLD SPEC

 1
74431-05050

AT22#,AZT220,ST220,ZZT22#

W(32C24L BATTERY)

 1
74481 - CLAMP, BATTERY HOLD DOWN
74481-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
74481A - CLAMP, BATTERY
74482-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
90119-08764
91515-B0616
