AT220L-AWMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )AT22#,ZZT220

Click highlighted areas on diagram

RH

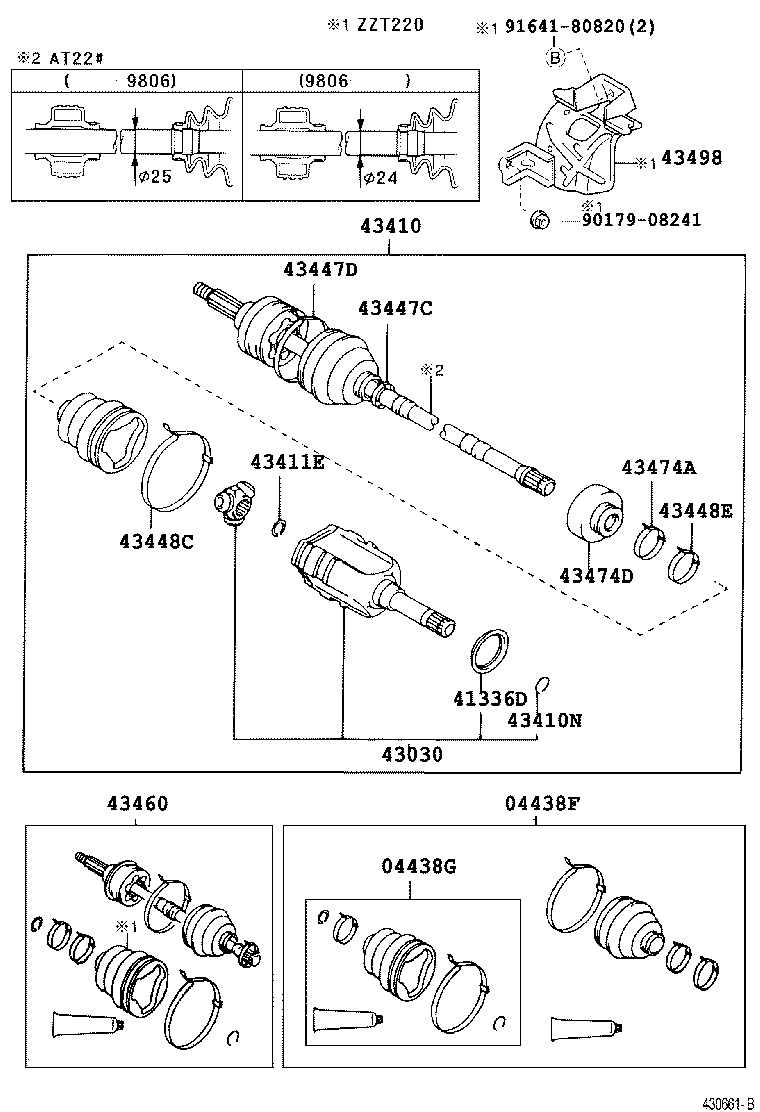

diagram 04438F 04438G 41336D 43030 43410 43410N 43411E 43447C 43447D 43448C 43448E 43460 43474A 43474D 43498 9017908241 9164180820
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-05110

AT22#

REFER TO ILLUSTRATION

 1
04438-05140

AT22#

 1
04438-05060

AT22#

REFER TO ILLUSTRATION

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-05130

AT22#

 1
04438-05070

AT22#,ST220

REFER TO ILLUSTRATION

 1
04438-05050

AT22#

REFER TO ILLUSTRATION

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-05010

AT22#,ZZT220

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-05060

AT22#

REFER TO ILLUSTRATION

 1
43403-05030

AT22#

REFER TO ILLUSTRATION

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-05300

AT22#

W(ABS),REFER TO ILLUSTRAION

 1
43410-05200

AT22#

W(ABS),REFER TO ILLUSTRAION

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90080-52056

AT22#,ZZT220

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90080-52093

AT22#,ST220

REFER TO ILLUSTRATION

 1
90080-52090

AT22#

REFER TO ILLUSTRATION

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-05050

AT22#

REFER TO ILLUSTRATION

 1
42345-05070

AT22#

ID=29.5,REFER TO ILLUSTRATION

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-05080

AT22#

ID=87.5,REFER TO ILLUSTRATION

 1
42345-05060

AT22#

REFER TO ILLUSTRATION

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-05010

AT22#

REFER TO ILLUSTRATION

 1
42345-05030

AT22#,ST220

REFER TO ILLUSTRATION

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-05020

AT22#

REFER TO ILLUSTRATION

 1
42345-05040

AT22#,ST220

REFER TO ILLUSTRATION

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09290

AT22#

W(ABS),REFER TO ILLUSTRAION

 1
43460-09270

AT22#

W(ABS),REFER TO ILLUSTRAION

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
90080-46119

AT22#,ZZT220

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-20070

AT22#

REFER TO ILLUSTRATION

 1
43474-12070

AT22#

REFER TO ILLUSTRATION

 1
Common parts
90179-08241
91641-80820

(9710- )AT22#,ST220,ZZT220

Click highlighted areas on diagram

LH

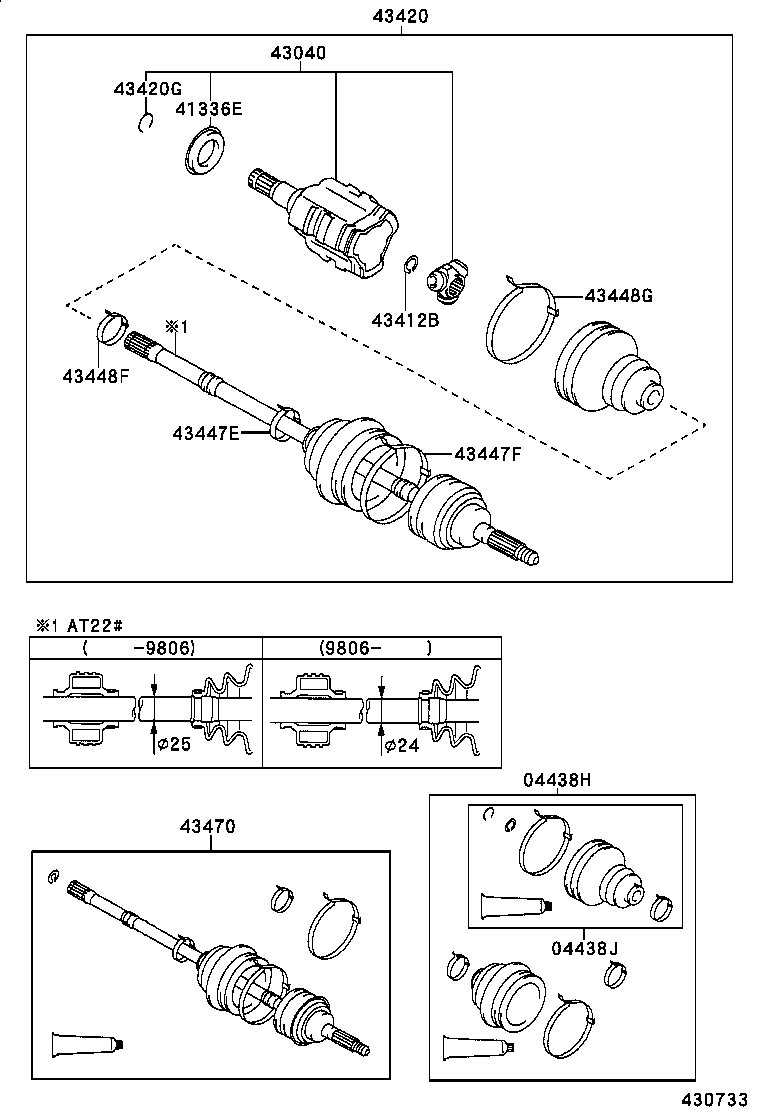

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43447E 43447F 43448F 43448G 43470
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-05140

AT22#

 1
04438-05080

AT22#,ST220

REFER TO ILLUSTRATION

 1
04438-05060

AT22#

REFER TO ILLUSTRATION

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-05130

AT22#

 1
04438-05050

AT22#

REFER TO ILLUSTRATION

 1
04438-05070

AT22#,ST220

REFER TO ILLUSTRATION

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-05010

ZZT221..ATM;AT22#,ZZT220

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-05060

AT22#

REFER TO ILLUSTRATION

 1
43403-05030

AT22#

REFER TO ILLUSTRATION

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90080-52093

AT22#,ST220

REFER TO ILLUSTRATION

 1
90080-52090

AT22#

REFER TO ILLUSTRATION

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-05300

AT22#

W(ABS),REFER TO ILLUSTRAION

 1
43420-05200

AT22#

W(ABS),REFER TO ILLUSTRAION

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90080-52056

ZZT221..ATM;AT22#,ZZT220

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-05070

AT22#

ID=29.5,REFER TO ILLUSTRATION

 1
42345-05050

AT22#

REFER TO ILLUSTRATION

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-05060

AT22#

REFER TO ILLUSTRATION

 1
42345-05080

AT22#

ID=87.5,REFER TO ILLUSTRATION

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-05030

AT22#,ST220

REFER TO ILLUSTRATION

 1
42345-05010

AT22#

REFER TO ILLUSTRATION

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-05040

AT22#,ST220

REFER TO ILLUSTRATION

 1
42345-05020

AT22#

REFER TO ILLUSTRATION

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-09440

AT22#

W(ABS),REFER TO ILLUSTRAION

 1
43470-09500

AT22#

W(ABS),REFER TO ILLUSTRAION

 1
43470-09560

AT22#

W(ABS)

 1
