AT220L-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )LB

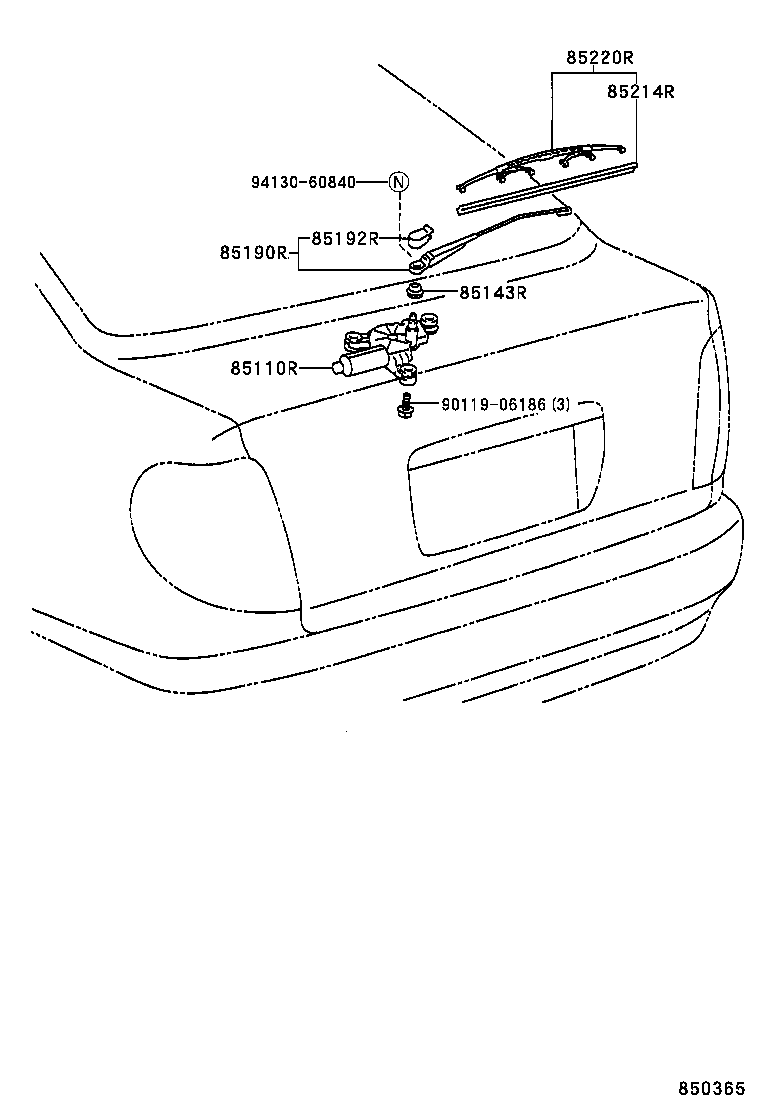

Click highlighted areas on diagram

diagram 85110R 85143R 85190R 85192R 85214R 85220R 9011906186 9413060840
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-05040

AT22#,CDT220,CT220,ST220..LB

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
85190R - ARM ASSY, REAR WIPER
85241-05050

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
85192R - COVER, REAR WIPER ARM
85244-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
85214R - RUBBER, REAR WIPER
85243-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
85220R - BLADE ASSY, REAR WIPER
85242-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
Common parts
90119-06186
94130-60840
