AT220L-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )LB

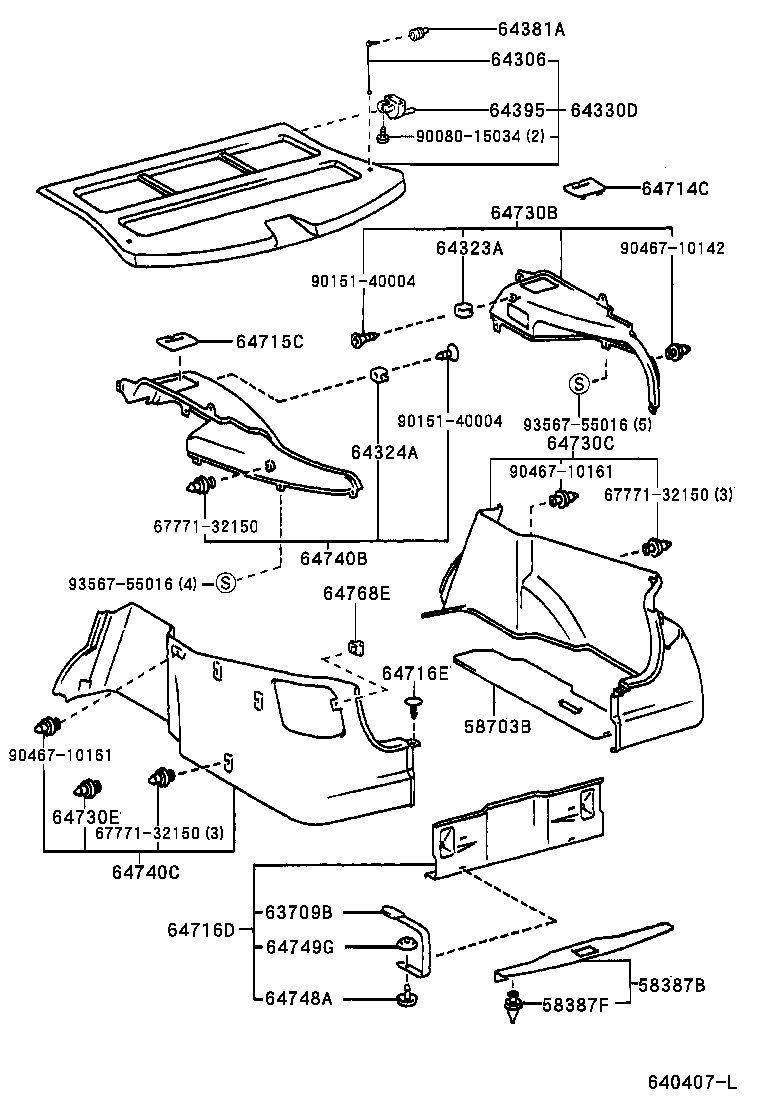

Click highlighted areas on diagram

diagram 58387B 58387F 58703B 63709B 64306 64323A 64324A 64330D 64381A 64395 64714C 64715C 64716D 64716E 64730B 64730C 64730E 64740B 64740C 64748A 64749G 64768E 6777132150 6777132150 6777132150 9008015034 9015140004 9015140004 9046710142 9046710161 9046710161 9356755016 9356755016
Part # Description Qty Price
58387B - PLATE, REAR FLOOR FINISH
58387-05050B0

AT22#,CDT220,CT220,ST220..LB

MD.GRAY,TRIM1#

 1
58387-05050G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
58387F - CLIP, REAR FLOOR FINISH PLATE
67771-12040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 4
58703B - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58773-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
63709B - BAND SUB-ASSY, ROOM RACK
63709-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 2
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 2
64323A - CLAMP, PACKAGE TRAY TRIM, RH
64323-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
64324A - CLAMP, PACKAGE TRAY TRIM, LH
64324-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-05090B0

AT22#,CDT220,CT220,ST220..LB

MEDIUM GRAY,TRIM1#

 1
64330-05090G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
64381A - HANGER, PACKAGE TRAY TRIM
64381-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 2
64395 - PIN, PACKAGE TRAY TRIM HINGE
64395-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 2
64714C - COVER, DECK SIDE TRIM, RH
64714-05020B0

AT22#,CDT220,CT220,ST220..LB

MD.GRAY,TRIM1#

 1
64714-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
64715C - COVER, DECK SIDE TRIM, LH
64715-05020G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
64715-05020B0

AT22#,CDT220,CT220,ST220..LB

MD.GRAY,TRIM1#

 1
64716D - COVER, DECK TRIM, REAR
64716-05050G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
64716-05050B0

AT22#,CDT220,CT220,ST220..LB

MEDIUM GRAY,TRIM1#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-08188

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 8
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-05030G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
64730-05030B0

AT22#,CDT220,CT220,ST220..LB

MD.GRAY,TRIM1#

 1
64730C - BOARD, DECK TRIM SIDE, RH
64731-05050B0

AT22#,CDT220,CT220,ST220..LB

MEDIUM GRAY,TRIM1#

 1
64731-05050G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90467-10148

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
64740B - BOARD, DECK TRIM SIDE, LH
64740-05030G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
64740-05030B0

AT22#,CDT220,CT220,ST220..LB

MD.GRAY,TRIM1#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64732-05050B0

AT22#,CDT220,CT220,ST220..LB

MEDIUM GRAY,TRIM1#

 1
64732-05050G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
64748A - HOOK, SIDE TRIM TOOL COVER, NO.1
64748-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 2
64749G - HOOK, SIDE TRIM TOOL COVER, NO.2
64749-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 2
64768E - STOPPER, QUARTER TRIM LID
64768-05010G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

SLATE GREEN,TRIM6#

 2
64768-05010B0

AT22#,CDT220,CT220,ST220..LB,WG

MD.GRAY,TRIM1#

 2
Common parts
67771-32150
90080-15034
90151-40004
90467-10142
90467-10161
93567-55016
