AT220L-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )LHD..MTM

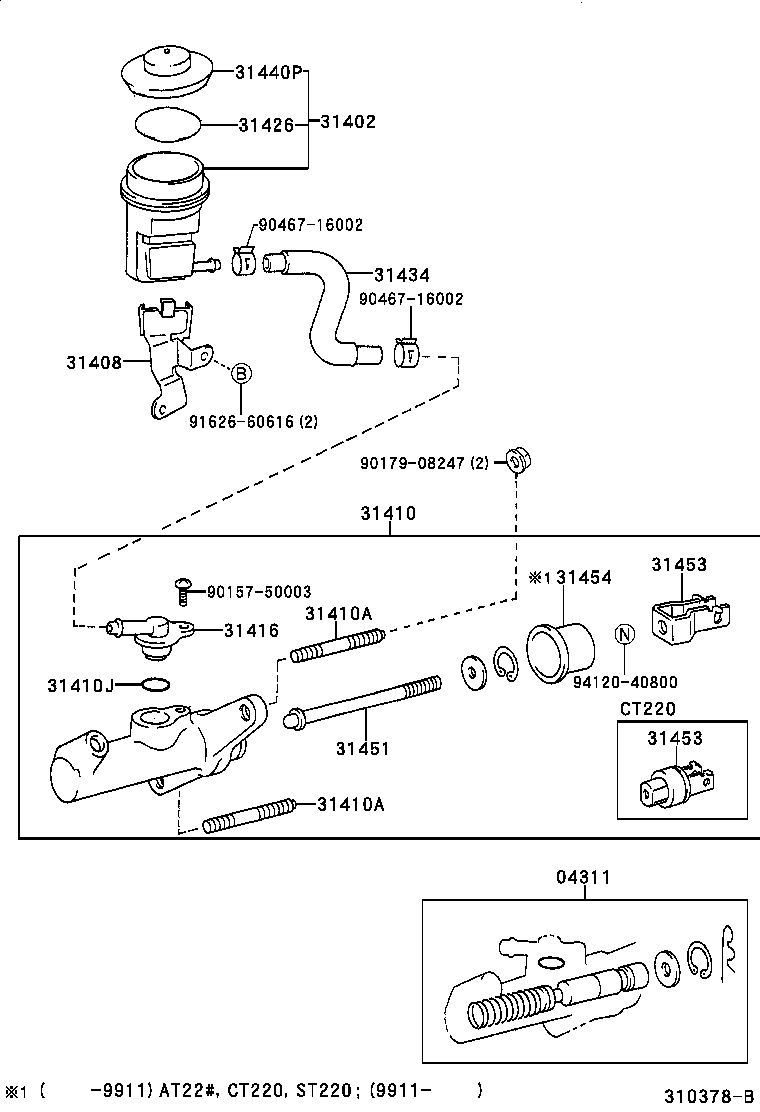

Click highlighted areas on diagram

diagram 04311 31402 31408 31410 31410A 31410A 31410J 31416 31426 31434 31440P 31451 31453 31453 31454 9015750003 9017908247 9046716002 9046716002 9162660616 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-26050

AT22#,AZT220,CDT220,ST220,ZZT22#..LHD..MTM

 1
04311-26050

AT22#,CT220,ST220..LHD..MTM

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-20100

AT22#,ST220..LHD..MTM

 1
31408 - HOLDER SUB-ASSY, CLUTCH RESERVOIR
31408-20010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..MTM

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-20030

AT22#,ST220..LHD..MTM

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
90116-08146

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 2
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
90116-08146

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 2
31410J - RING, O(FOR CLUTCH MASTER CYLINDER UNION)
90301-14001

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..MTM

 1
31416 - UNION, CLUTCH MASTER CYLINDER INLET
31416-20010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..MTM

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-22020

AT22#,CDT220,CT220,ST220..MTM

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-20010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..MTM

 1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

CDT220..RHD;AT22#,CT220,ST220..MTM

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-35070

AT22#,ST220..MTM

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-10040

AT22#,ST220..MTM

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-10040

AT22#,ST220..MTM

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-16010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
31454-16010

CDT220..RHD;AT22#,CT220,ST220..MTM

 1
Common parts
90157-50003
90179-08247
90467-16002
91626-60616
94120-40800
